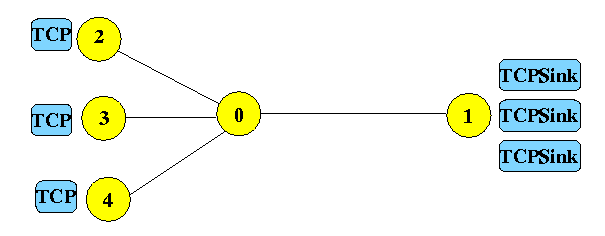

The classic performance analysis network:
- Link 0-1 is the bottleneck link
- N flows share the bottleneck link
NS script to construct this network:
# ####################################################################
# Create bottleneck and dest nodes
set n2 [$ns node]
set n3 [$ns node]
# ####################################################################
# Create bottleneck link (between bottleneck nodes n2-n3)
$ns duplex-link $n2 $n3 0.7Mb 20ms DropTail
# ####################################################################
# Set Queue Size of bottleneck link (n2-n3)
$ns queue-limit $n2 $n3 100
# ####################################################################
# Set number of sources
set NumbSrc 3
# ####################################################################
# Use a for-loop to create $NumbSrc source nodes
for {set j 1} {$j<=$NumbSrc} { incr j } {
set S($j) [$ns node]
}
# ####################################################################
# This part is used to start the sources at random times
# ####################################################################
# Create a random generator for starting the ftp and
# for bottleneck link delays
set rng [new RNG]
$rng seed 2
# ####################################################################
# parameters for random variables for begenning of ftp connections
set RVstart [new RandomVariable/Uniform]
$RVstart set min_ 0
$RVstart set max_ 7
$RVstart use-rng $rng
# ####################################################################
# Define RANDOM starting times for each connection
# And set (possible random) delay for connection from sources to Node 0
for {set i 1} {$i<=$NumbSrc} { incr i } {
set startT($i) [expr [$RVstart value]]
set dly($i) 1
puts "startT($i) $startT($i) sec"
puts $param "startT($i) $startT($i) sec"
}
# ####################################################################
# Create links between source and bottleneck
# 1. Select the delay from each source to bottleneck node
# 2. Set queue size (#packets)
for {set j 1} {$j<=$NumbSrc} { incr j } {
$ns duplex-link $S($j) $n2 10Mb $dly($j)ms DropTail
$ns queue-limit $S($j) $n2 20
}
# ####################################################################
# Orient the links
$ns duplex-link-op $n2 $n3 orient right
$ns duplex-link-op $S(1) $n2 orient right-down
$ns duplex-link-op $S(2) $n2 orient right
$ns duplex-link-op $S(3) $n2 orient right-up
# ####################################################################
# Create TCP Sources
for {set j 1} {$j<=$NumbSrc} { incr j } {
set tcp_src($j) [new Agent/TCP/Reno]
$tcp_src($j) set window_ 8000
}
# ####################################################################
# Color the packets
$tcp_src(1) set fid_ 1
$ns color 1 red
$tcp_src(2) set fid_ 2
$ns color 2 yellow
$tcp_src(3) set fid_ 3
$ns color 3 blue
# ####################################################################
# Create TCP Destinations
for {set j 1} {$j<=$NumbSrc} { incr j } {
set tcp_snk($j) [new Agent/TCPSink]
}
# ####################################################################
# Schedule START events for the FTP agents:
for {set i 1} {$i<=$NumbSrc} { incr i } {
$ns at $startT($i) "$ftp($i) start"
$ns at $SimDuration "$ftp($i) stop"
}
|
- This is done through the classic "plotWindow" procedure that reschedules
itself.
- This version of "plotWindow" can be used for
multiple TCP sources:
# #################################################################### # plotWindow(tcpSource file k): Write CWND of k tcpSources in file proc plotWindow {tcpSource file k} { global ns NumbSrc set time 0.03 set now [$ns now] set cwnd [$tcpSource set cwnd_] if {$k == 1} { puts -nonewline $file "$now \t $cwnd \t" } else { if {$k < $NumbSrc } { puts -nonewline $file "$cwnd \t" } } if { $k == $NumbSrc } { puts -nonewline $file "$cwnd \n" } if { $k == $NumbSrc } { puts -nonewline $file "$cwnd \n" } $ns at [expr $now+$time] "plotWindow $tcpSource $file $k" } Usage: # #################################################################### # Start plotWindow() for all tcp sources for {set j 1} {$j<=$NumbSrc} { incr j } { $ns at 0.1 "plotWindow $tcp_src($j) $windowVsTime $j" } - The output format is as follows:
TIME Win_flow1 Win_flow2 Win_flow3 .... Win_flowN
- Use the following plot commands in gnuplot to
plot the window trends for each TCP flow:
plot "windowFile" using 1:2 t "Flow 1" w lines 1, \ "windowFile" using 1:3 t "Flow 2" w lines 2, \ "windowFile" using 1:4 t "Flow 3" w lines 3
- (Current) Queue length information can be obtained by
queue monitoring - see:
click here
- Code in NS script to obtain queue length information:
# #################################################################### # Monitor avg queue length of link ($n2,$n3) set qfile [$ns monitor-queue $n2 $n3 [open queue.tr w] 0.05] [$ns link $n2 $n3] queue-sample-timeout;
- Process output with:
plot "queue.tr" using 1:5 t "Queue Length" w lines 1
- Drop Tail queues does not provide built-in tracing facility
to recorded average and current queue length information
(RED queues do)
- The trace information (ns trace-all -
click here) contains
enough information to determine the TCP (good) throughput
of any TCP connection.
- Recall the structure of the trace record:
- The Seq Number starts with 0 when simulation begins
- Therefore, we can determine the (good) throughput of a TCP
connection by looking at the Seq Number received by
the destination node of the TCP connection !
- Here is a PERL script that can be used to generate
a plot of the throughput information of a TCP connection:
(you can get the Perl script here:
click here)
NOTES:
- @x = split(' ') tokenizes each input line into an array of strings
- x[0] is the first element (i.e., event), we look for "r" (receive) events
- x[1] is the first element (event)
# #################################################################### # Usage: # # perl throughput
# # Example: plot the throughput of connection 2.0 - 1.0 every 0.5 sec # # perl throughput out.tr 1 2.0 1.0 0.5 # #################################################################### # ############################################################# # Get input file (first arg) $infile=$ARGV[0]; # ############################################################# # Get node that receives packets (second arg) $destnode=$ARGV[1]; $fromport=$ARGV[2]; $toport=$ARGV[3]; # ############################################################# # Get time granularity (time interval width $granularity=$ARGV[4]; # ##################################################################### # We compute how many bytes were transmitted during time interval # specified by granularity parameter in seconds $sum=0; $grantsum=0; $clock=0; # ##################################################################### # Open input file open (DATA,"<$infile") || die "Can't open $infile $!"; while () { # Tokenize line using space as separator @x = split(' '); # column 1 is time: Check for next epoch if ($x[1]-$clock <= $granularity) { # checking if the event (column 0) corresponds to a reception if ($x[0] eq 'r') { # checking if the destination (column 3) corresponds to node in arg 1 if ($x[3] eq $destnode && $x[8] eq $fromport && $x[9] eq $toport) { #checking if the packet type is TCP if ($x[4] eq 'tcp') { $sum=$sum+$x[5]; $grantsum=$grantsum+$x[5]; } } } } else # One interval has passed, compute throughput { $throughput=0.000008*$sum/$granularity; print STDOUT "$clock $throughput\n"; $clock=$clock+$granularity; if ($x[0] eq 'r' && $x[3] eq $destnode && $x[8] eq $fromport && $x[9] eq $toport && $x[4] eq 'tcp') { $sum=$x[5]; $grantsum=$grantsum+$x[5]; } else { $sum=0; } while ($x[1]-$clock > $granularity) { print STDOUT "$clock 0.0\n"; $clock=$clock+$granularity; } } } $throughput=0.000008*$sum/$granularity; print STDOUT "$clock $throughput\n"; $clock=$clock+$granularity; print "Avg throughput $fromport - $toport = ", $grantsum/$clock, "\n"; close DATA; exit(0); - How to perform throughput analysis
- Look at the NAM network and find the destination node
(in our example, the TCP sinks are attached to node 1
- Look inside the trace file and find some like with destination = 1.?
Example:
r 0.005749 2 0 tcp 40 ------- 1 2.0 1.0 0 0 ... r 0.026206 0 1 tcp 40 ------- 1 2.0 1.0 0 0
- The first packet is in transit at node 0 towards the final
destination 1 (received on port 0).
- The received packet is received by node 1 and it is also
the final destination node - so this packet counts towards
the (good) throughput)
-
Write down the src-node.src-port and dest-node.dest.port:
2.0 1.0You need these as input parameters for the "throughput" script.
- The first packet is in transit at node 0 towards the final
destination 1 (received on port 0).
- To compute the throughput of the TCP
connection (2.0 -> 1.0) over 0.5 sec
interval, use:
throughput trace-file 1 2.0 1.0 0.5 > plotdata - You will get a two column output:
Time Throughput (in MBytes/sec)that you can use gnuplot to plot the trend:-
Run:
gnuplot gnuplot> plot "plotdata" using 1:2 title "TCP throughput" with lines 1
- Look at the NAM network and find the destination node
(in our example, the TCP sinks are attached to node 1
- If all you want is to study the throughput of TCP connections,
you can save a lot of disk space by filtering the trace records
inside the NS script (see: click here)
- Here is a PERL script that only write the RECEIVED packets
by a given node out:
(The Perl script is here: click here )
# ######################################################################## # throughput-filter: PERL utility for reducing the trace-file size # # # # Usage: # # # # When you open the trace-file in NS, use this command: # # # # set file1 [open "| perl thruput-filter destNode > trace-file" w] # # ######################################################################## # ############################################################# # Get node that receives packets $tonode=$ARGV[0]; # ######################################################################## # <STDIN> is the standard input stream, already opened ! while (<STDIN>) { # Tokenize line using space as separator $line=$_; @x = split(' '); # checking if the event (column 0) corresponds to a reception if ($x[0] eq 'r') { # checking if the destination corresponds to node in arg if ($x[3] eq $tonode) { print STDOUT $line } } } exit(0); - To use this filter, open the trace-file in your NS script using:
set file1 [open "| perl thruput-filter destNode > trace-file" w]
