Intro to arithmetic circuits

From CS255:
In addition to switching circuits (e.g.: multiplexor, decoder, ...), a second major category of circuits found inside the CPU are circuits that do computations:

Arithmetic circuits studied in CS355

We will study how to construct the following arithmetic circuits:

The ripple carry adder circuit that can perform addition of binary numbers
A subtraction circuit contructed using the ripple carry adder
A multiplication circuit constructed using (multiple) ripple carry adders
(We will not study circuits that performs division - it's too time consuming, we need the time to explain the other operations within the computer)

How to make arithmetic circuits in general

The general approach to design/construct any arithmetic circuit is to use the circuit design methodology discussed previously:

List out every combination of the input values
Determine the output for each combination of input values
Construct the digital circuit using NOT, AND, and OR gates

See this teaching slide set: click here

However: when you use this circuit design method, you will not be able to make a viable cuicuit !!!

Applying the general circuit design technique on a "4 bit adder" circuit

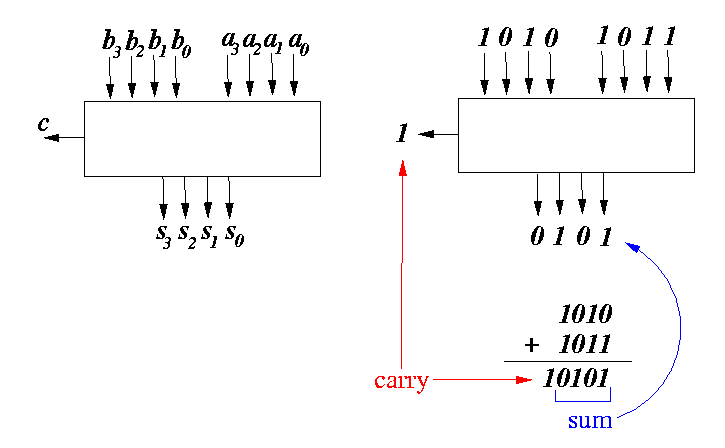

Suppose we want to design a circuit that can add two 4-bits (binary) numbers:

Applying the general circuit design technique on a "4 bit adder" circuit

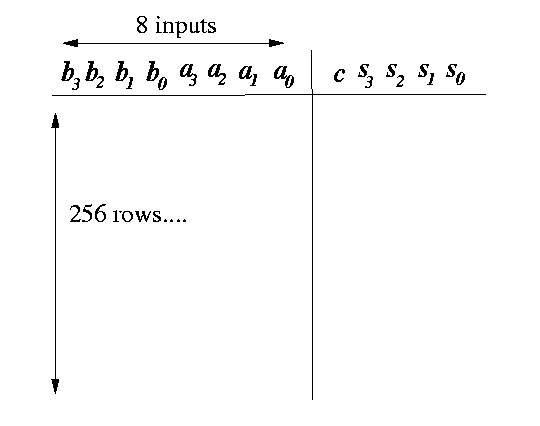

The logic table for this 4-bit adder circuit will look like this:

The logic table for a 4 bit adder has 2⁸ (= 256) rows !!!

Why the general circuit design method fails

An adder circuit to add two 32 bit binary number will have 2⁶⁴ rows
2⁶⁴ rows = 18446744073709551616 = 18446744 trillion !!
We can never make this many number of transistors, so let alone AND, OR, NOT gates (that are made up of transistors) !!!

We must make some trade offs in order to make viable 32 (or larger) arithmetic circuits
