Constant offsets and variable offsets

Constant offset:

  • is an offset value that is fixed and can be computed in advance

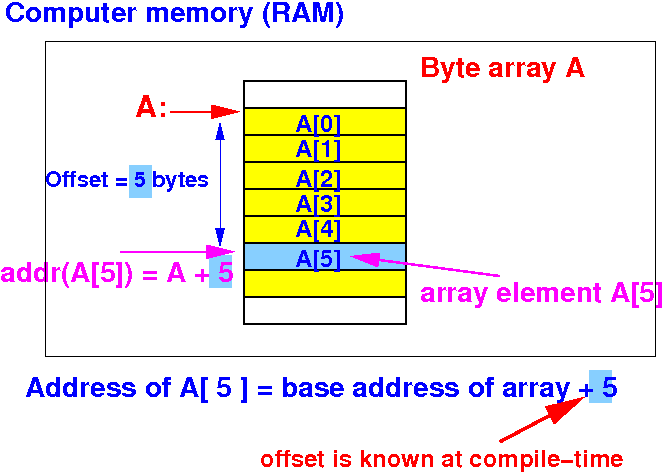

Example: the offset of A[5] in a byte typed array can be pre-computed (because it is equal to 5):

Constant offsets are computed by the compiler.

Constant offsets and variable offsets

Variable offset:

  • is an offset value that is computed using one of more variables

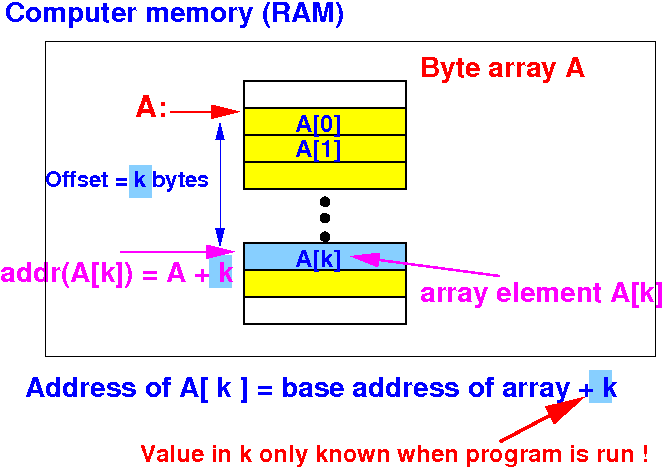

Example: the offset of A[k] in a byte typed array can only be computed using the value in variable k

Constant offsets can only be computed when the program is running.

Addressing modes in ARM to support access of array elements

  • Load and store instructions to access array elements with constant offsets:

      ldrsb rN, [rM, #n]   // rN = sign-ext( Memory[rM+n] )
  ldrsh rN, [rM, #n]   // rN = sign-ext( Memory[rM+n .. rM+n+1] )
  ldr   rN, [rM, #n]   // rN = sign-ext( Memory[rM+n .. rM+n+3] )

  strb  rN, [rM, #n]   // Memory[rM+n]           = rN[7..0] (last 8 bits)
  strh  rN, [rM, #n]   // Memory[rM+n .. rM+n+1] = rN[15.0] (last 16 bits)
  str   rN, [rM, #n]   // Memory[rM+n .. rM+n+3] = rN (all 32 bits)

  (n = the constant offset)

  • Load and store instructions to access array elements with variable offsets:

      ldrsb rN, [rM, rk]   // rN = sign-ext( Memory[rM+rk] )
  ldrsh rN, [rM, rk]   // rN = sign-ext( Memory[rM+rk .. rM+rk+1] )
  ldr   rN, [rM, rk]   // rN = sign-ext( Memory[rM+rk .. rM+rk+3] )

  strb  rN, [rM, rk]   // Memory[rM+rk]            = rN[7..0] (last 8 bits)
  strh  rN, [rM, rk]   // Memory[rM+rk .. rM+rk+1] = rN[15.0] (last 16 bits)
  str   rN, [rM, rk]   // Memory[rM+rk .. rM+rk+3] = rN (all 32 bits)

  (rk contains the variable offset)

(DEMO: byte first, then short and finally int --- use demo/asm/3-array/demo.s)

The   ldrsb rN,[rM,#n]   instruction

Syntax and meaning of the ldrsb rN, [rM, #n] instruction:

   ldrsb rN, [rM, #n]

      Load 1 byte from memory at the address given
      by rM + n into the (destination) register rN
      AND convert it into int (32 bits) representation

      The byte is stored at the right rN
      and then it is sign extended to 32 bits:

The ldrsb rN, [rM, #n] is used to fetch byte typed array elements A[constant-index] (e.g.: A[4]) from memory

ldrsb rN, [rM, #n] explained graphically

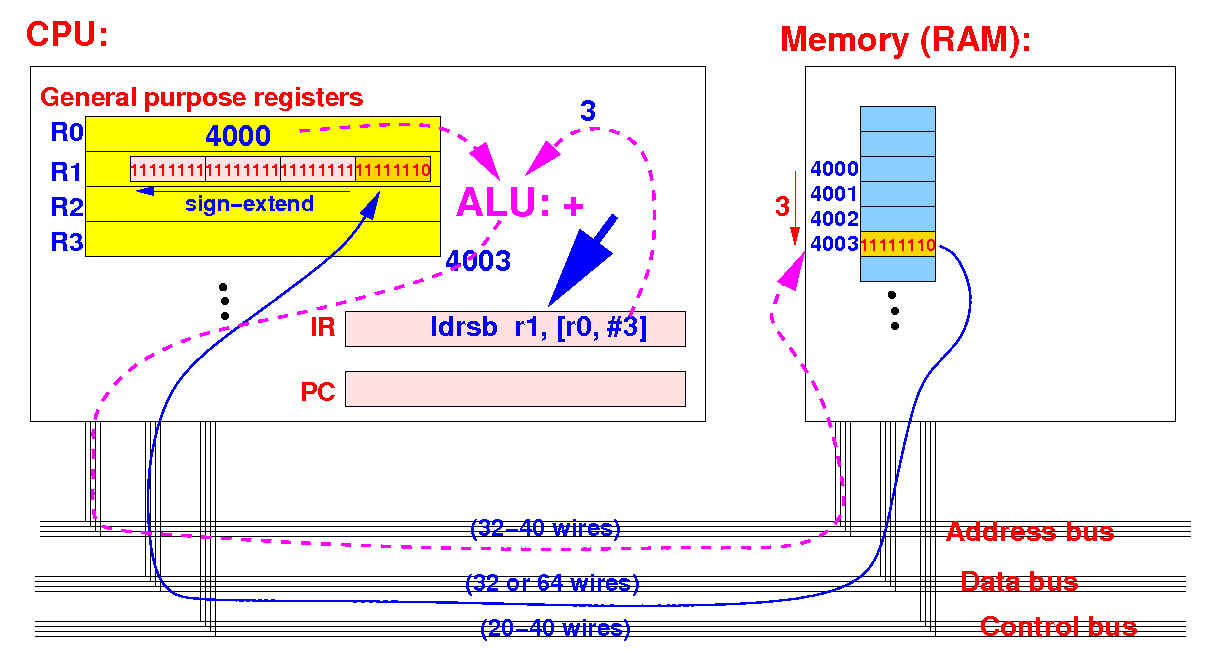

The ldrsb r1,[r0,#3] instruction loads the byte variable at address r0+3 into reg r1:

The byte is then converted into a 32 bits 2s complement representation   -- DO EXAMPLE

The   strb rN,[rM,#n]   instruction

Syntax and meaning of the strb rN, [rM, #n] instruction:

   strb rN, [rM, #n]

      Store 1 byte from register rN into memory
      at the address given by rM + n


      The byte is taken from the right of rN:

The strb rN, [rM, #n] is used to update byte typed array elements A[constant-index] (e.g.: A[4]) in memory

strb rN, [rM,#n] explained graphically

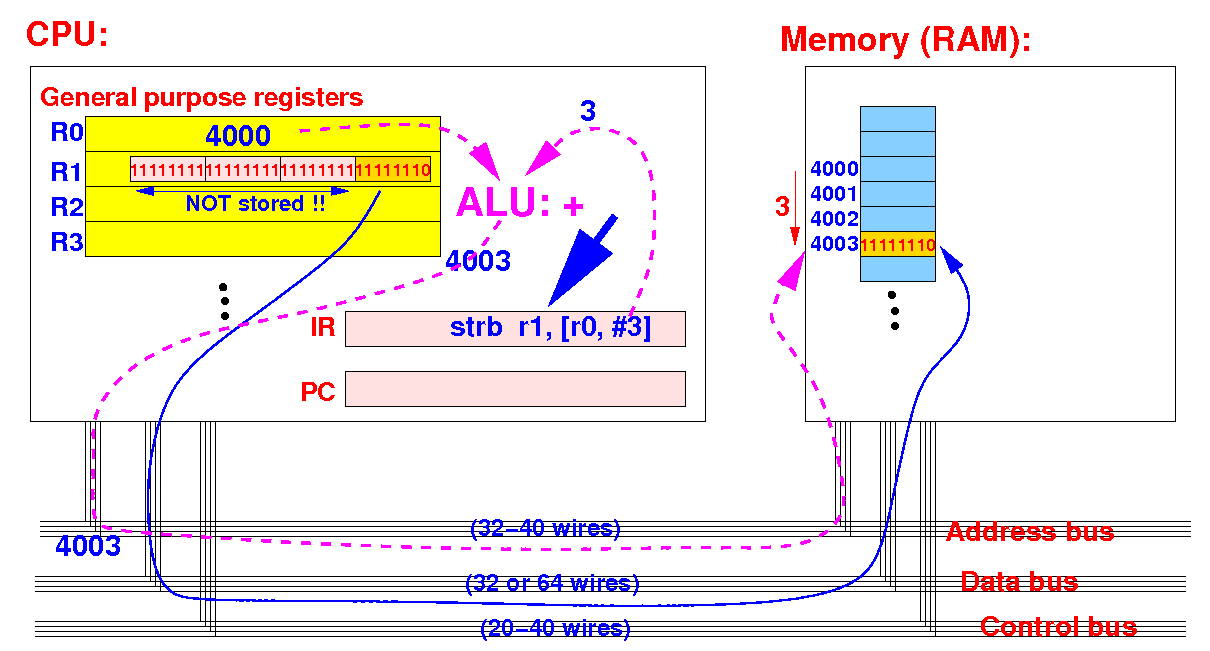

The strb r1,[r0,#3] instruction stores the byte in register r1 in memory at address r0+3:

The strb r1,[r0,#3] instruction will cast the 32 bits value in register R1 into a byte !!

The   ldrsb rN,[rM,rk]   instruction

Syntax and meaning of the ldrsb rN, [rM, rk] instruction:

   ldrsb rN, [rM, rk]

      Load 1 byte from memory at the address given
      by rM + rk into the (destination) register rN
      AND convert it into int (32 bits) representation

      The byte is stored at the right rN
      and then it is sign extended to 32 bits:

The ldrsb rN, [rM, rk] is used to fetch byte typed array elements A[variable-index] (e.g.: A[j]) from memory

ldrsb rN, [rM,rk] explained graphically

The ldrsb r2,[r0,r1] instruction loads the byte variable at address r0+r1 into reg r2:

The byte is then converted into a 32 bits 2s complement representation

The   strb rN,[rM,rk]   instruction

Syntax and meaning of the strb rN, [rM, rk] instruction:

   strb rN, [rM, rk]

      Store 1 byte from register rN into memory
      at the address given by rM + rk


      The byte is taken from the right of rN:

The strb rN, [rM, rk] is used to update byte typed array elements A[variable-index] (e.g.: A[j]) in memory

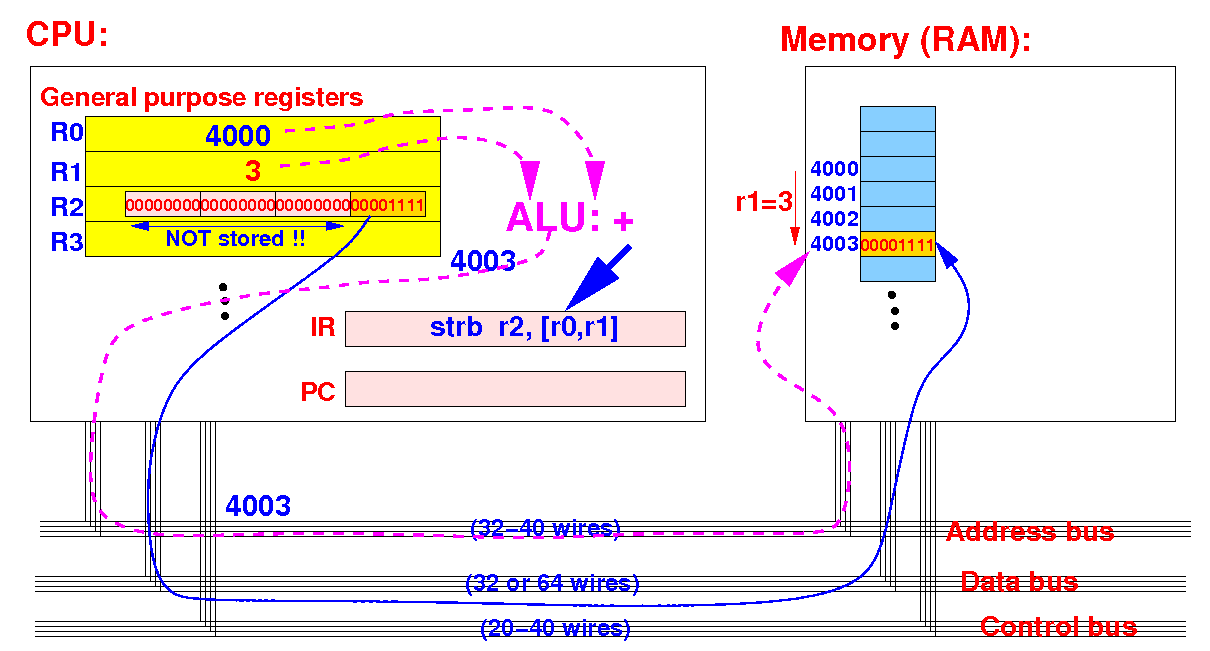

strb rN, [rM,rk] explained graphically

The strb r2,[r0,r1] instruction stores the byte in register r2 in memory at address r0+r1:

The strb r2,[r0,r1] instruction will cast the 32 bits value in register R2 into a byte !!

The   ldrsh rN,[rM,#n]   instruction

Syntax and meaning of the ldrsh rN, [rM, #n] instruction:

   ldrsh rN, [rM, #n]

      Load 2 bytes from memory at the address given
      by rM + n into the (destination) register rN
      AND convert it into int (32 bits) representation

      The 2 bytes are stored at the right rN
      and then it is sign extended to 32 bits:

The ldrsh rN, [rM, #n] is used to fetch short typed array elements A[constant-index] (e.g.: A[4]) from memory

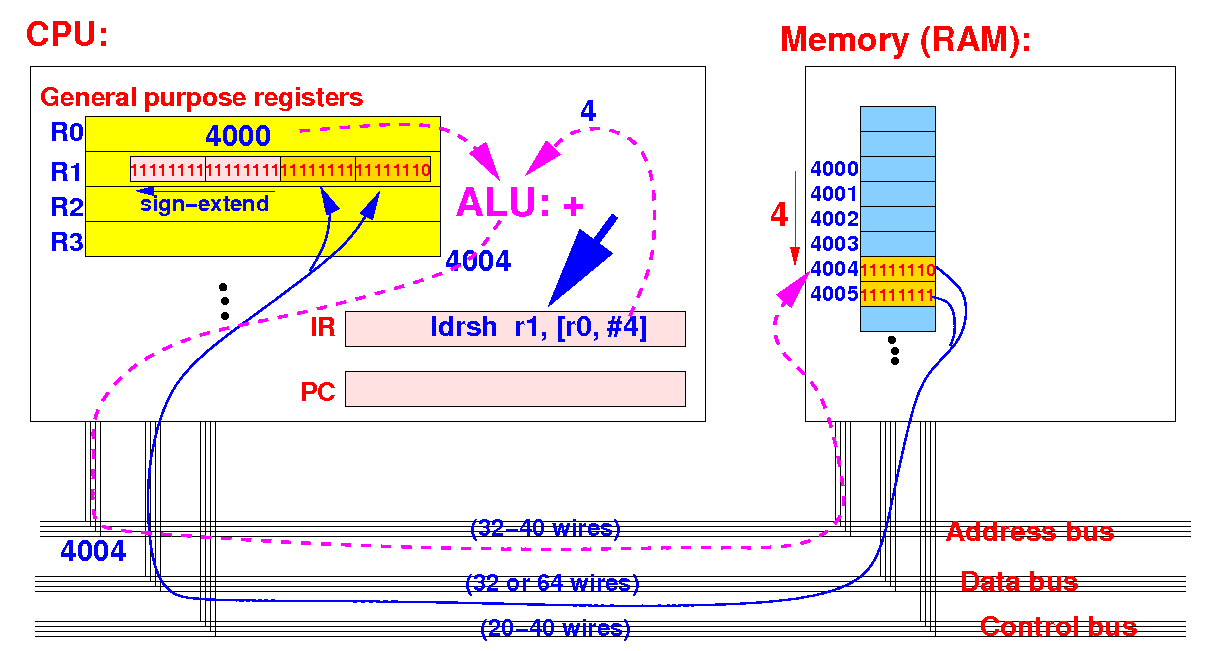

ldrsh rN, [rM, #n] explained graphically

The ldrsh r1,[r0,#4] instruction loads the short variable at address r0+4 into reg r1:

The short is then converted into a 32 bits 2s complement representation   -- DO EXAMPLE

The   strh rN, [rM, #n]   instruction

Syntax and meaning of the strh rN, [rM, #n] instruction:

   strh rN, [rM, #n]

      Store 2 bytes from register rN into memory
      at the address given by rM + n


      The 2 bytes are taken from the right of rN:

The strh rN, [rM, #n] is used to update short typed array elements A[constant-index] (e.g.: A[4]) in memory

strh rN, [rM,#n] explained graphically

The strh r1,[r0,#4] instruction stores the short in register r1 in memory at address r0+4:

The strh r1,[r0,#4] instruction will cast the 32 bits value in register R1 into a short !!

The   ldrsh rN,[rM,rk]   instruction

Syntax and meaning of the ldrsh rN, [rM, rk] (from memory) instruction:

   ldrsh rN, [rM, rk]

      Load 2 bytes from memory at the address given
      by rM + rk into the (destination) register rN
      AND convert it into int (32 bits) representation

      The 2 bytes are stored at the right rN
      and then it is sign extended to 32 bits:

The ldrsh rN, [rM, rk] is used to fetch short typed array elements A[variable-index] (e.g.: A[j]) from memory

ldrsh rN, [rM,rk] explained graphically

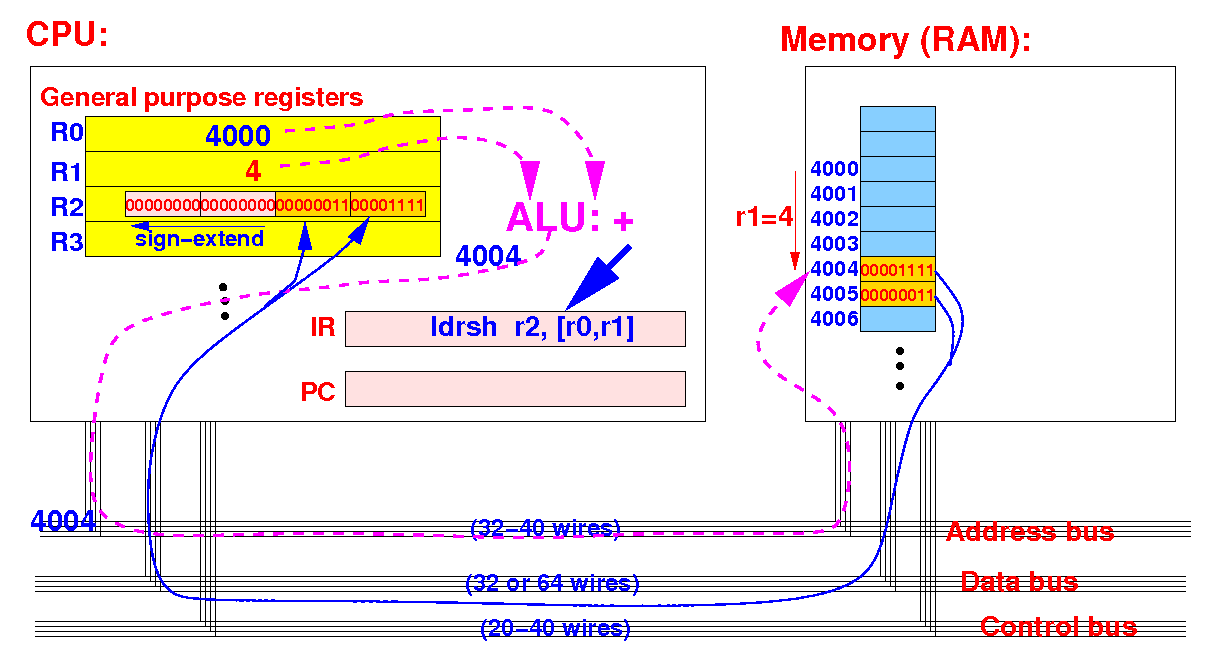

The ldrsh r2,[r0,r1] instruction loads the short variable at address r0+r1 into reg r2:

The short is then converted into a 32 bits 2s complement representation

The   strh rN,[rM,rk]   instruction

Syntax and meaning of the strh rN, [rM, rk] instruction:

   strh rN, [rM, rk]

      Store 2 bytes from register rN into memory
      at the address given by rM + rk


      The 2 bytes are taken from the right of rN:

The strh rN, [rM, rk] is used to update short typed array elements A[variable-index] (e.g.: A[i]) in memory

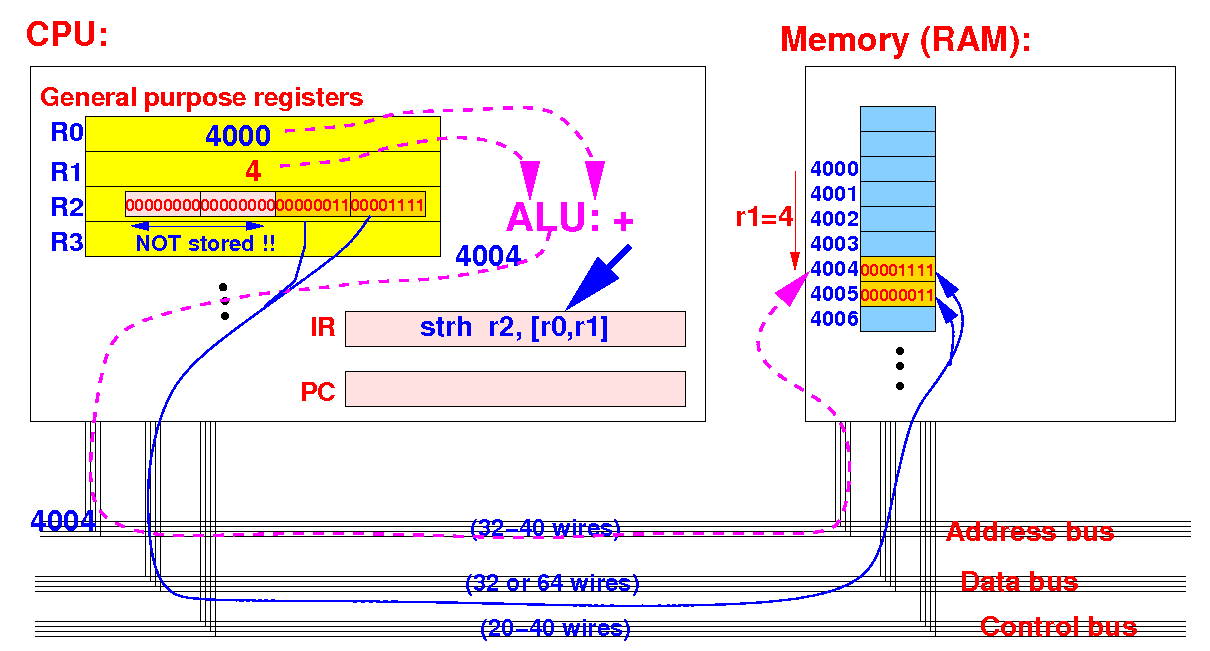

strh rN, [rM,rk] explained graphically

The strh r2,[r0,r1] instruction stores the short in register r2 in memory at address r0+r1:

The strh r2,[r0,r1] instruction will cast the 32 bits value in register R2 into a short !!

The   ldr rN,[rM,#n]   instruction

Syntax and meaning of the ldr rN, [rM, #n] instruction:

   ldr rN, [rM, #n]

      Load 4 bytes from memory at the address given
      by rM + n into the (destination) register rN

The ldr rN, [rM, #n] is used to fetch int typed array elements A[constant-index] (e.g.: A[4]) from memory

ldr rN, [rM, #n] explained graphically

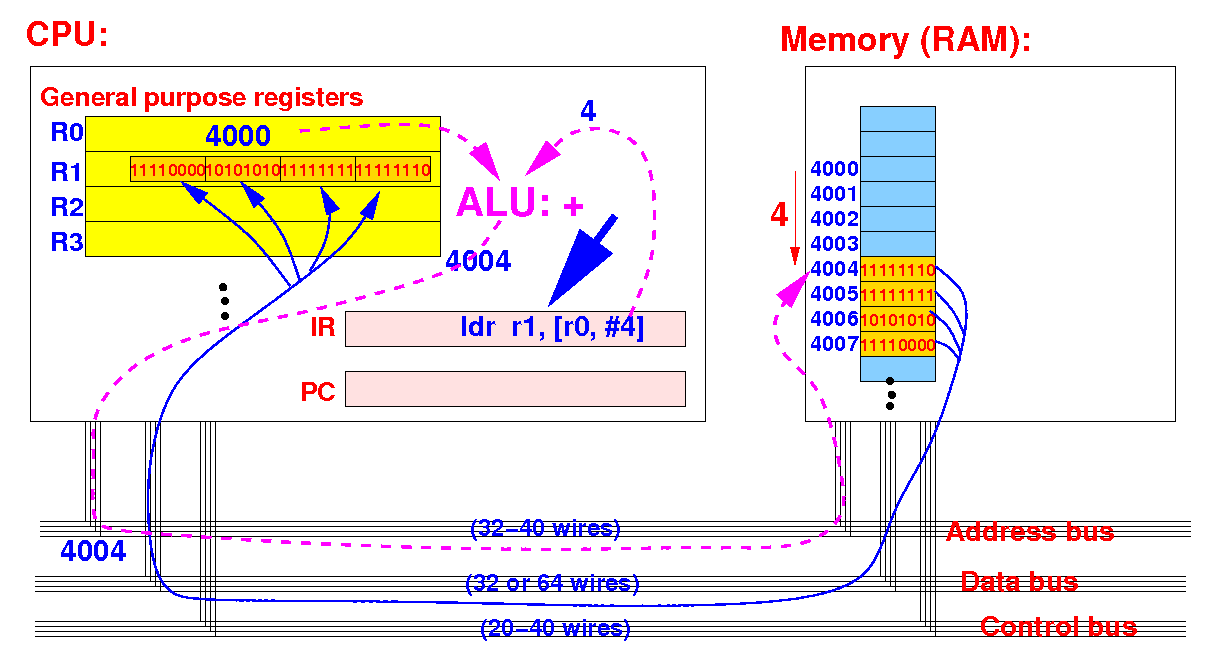

The ldr r1,[r0,#4] instruction loads the int variable at address r0+4 into reg r1:

(There is no need to perform a conversion operation...)   -- DO EXAMPLE

The   str rN,[rM,#n]   instruction

Syntax and meaning of the str rN, [rM, #n] instruction:

   str rN, [rM, #n]

      Store 4 bytes from register rN into memory
      at the address given by rM + n


      The 4 bytes comprise of the entire register rN:

The str rN, [rM, #n] is used to update int typed array elements A[constant-index] (e.g.: A[4]) in memory

str rN, [rM,#n] explained graphically

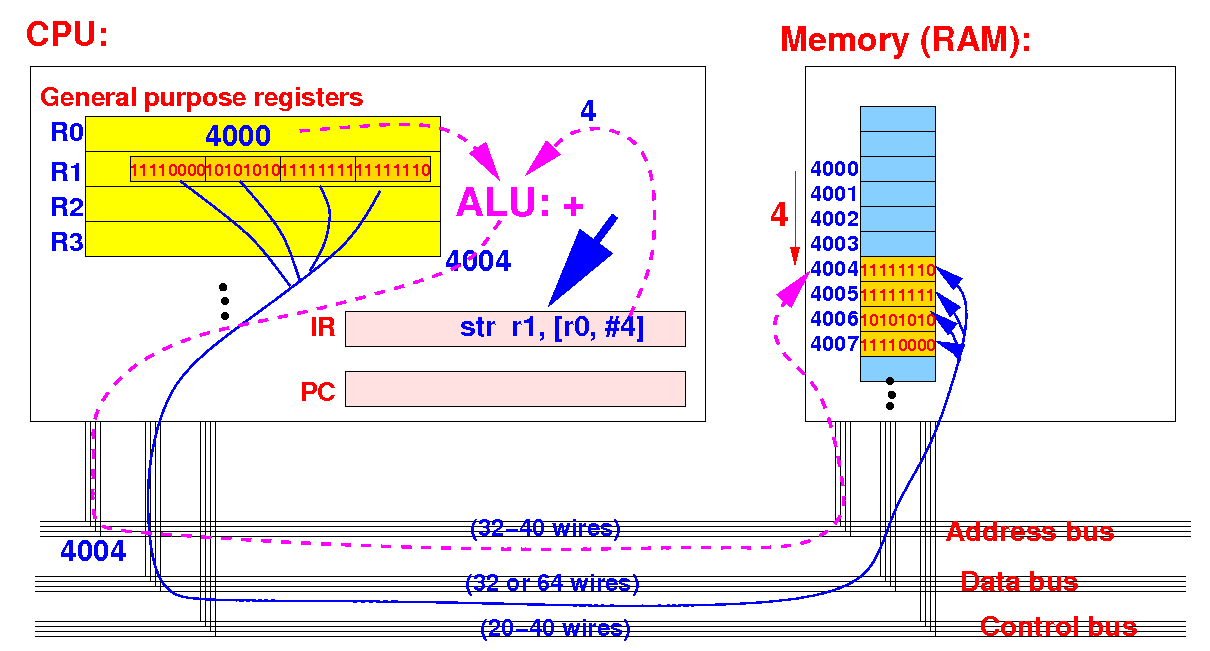

The str r1,[r0,#4] instruction stores the int in register r1 in memory at address r0+4:

(There is no need to perform a casting operation...)

The   ldr rN,[rM,rk]   instruction

Syntax and meaning of the ldr rN, [rM, rk] instruction:

   ldr rN, [rM, rk]

      Load 4 bytes from memory at the address given
      by rM + rk into the (destination) register rN

The ldr rN, [rM, rk] is used to fetch int typed array elements A[variable-index] (e.g.: A[i]) from memory

ldr rN, [rM,rk] explained graphically

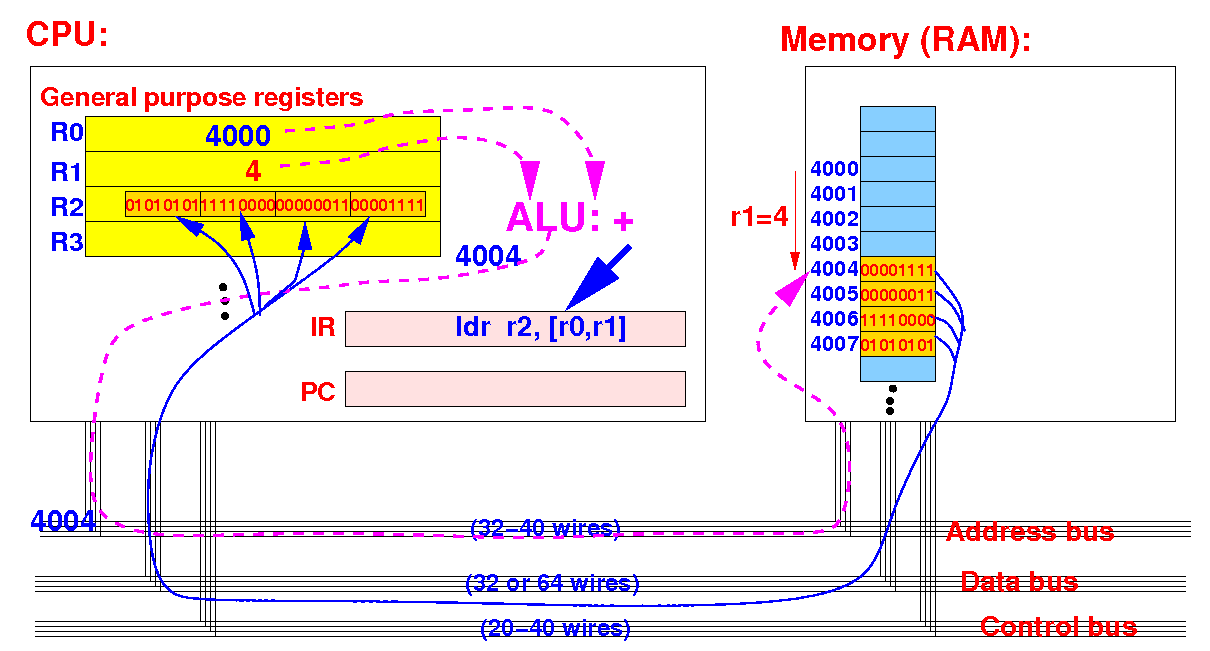

The ldr r2,[r0,r1] instruction loads the int variable at address r0+r1 into reg r2:

(There is no need to perform a conversion operation...)

The   str rN,[rM,rk]   instruction

Syntax and meaning of the str rN, [rM, rk] instruction:

   str rN, [rM, rk]

      Store 4 bytes from register rN into memory
      at the address given by rM + rk


      The 4 bytes comprise of the entire register rN:

The str rN, [rM, rk] is used to update int typed array elements A[variable-index] (e.g.: A[i]) in memory

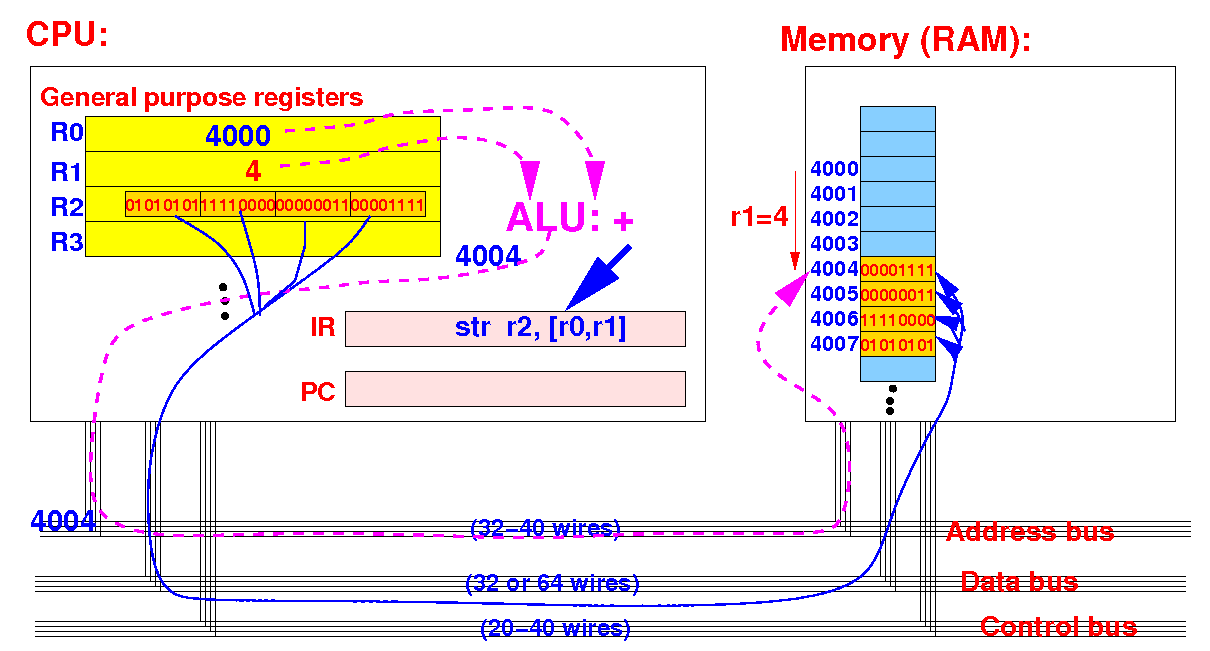

str rN, [rM,rk] explained graphically

The str r2,[r0,r1] instruction stores the int in register r2 in memory at address r0+r1:

(There is no need to perform a casting operation...)

Syntax summary


 ldrsb rN, [rM, #n] // Load byte data from mem addr rM + n
 ldrsb rN, [rM, rk] // Load byte data from mem addr rM + rk

 ldrsh rN, [rM, #n] // Load short data from mem addr rM + n
 ldrsh rN, [rM, rk] // Load short data from mem addr rM + rk

 ldr   rN, [rM, #n] // Load int data from mem addr rM + n
 ldr   rN, [rM, rk] // Load int data from mem addr rM + rk

 strb  rN, [rM, #n] // Store byte data to mem addr rM + n
 strb  rN, [rM, rk] // Store byte data to mem addr rM + rk

 strh  rN, [rM, #n] // Store short data to mem addr rM + n
 strh  rN, [rM, rk] // Store short data to mem addr rM + rk

 str   rN, [rM, #n] // Store int data to mem addr rM + n
 str   rN, [rM, rk] // Store int data to mem addr rM + rk

Didactic comment


  • In the next set of slides, I will show you:

      • How to use the advanced load and store instructions with offset to fetch and update array elements

  • I will only show you:

      1. How to fetch an array element from memory into a register

      2. How to store the value in a register into an array element in memory

    and nothing else !

    Because you already know how to use values inside registers with the arithmetic operations ( click here) !
