Reading a int typed
array element with
a constant index -
example: A[5]
Definition of array variable:
int A[10]; |
Problem:
|
Reading a int typed
array element with
a constant index -
example: A[5]
Address of array element A[5]:
Reading a int typed
array element with
a constant index -
example: A[5]
ARM instructions to fetch A[5] into register r0:
.text
// Given that A is an int typed array
// Write ARM instructions to fetch A[5] into register R0
// Note: we can pre-compute the offset using the index 5 !
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
DEMO: /home/cs255001/demo/asm/3-array/demo.s
Reading a int typed
array element with
a constant index -
example: A[5]
ARM instructions to fetch A[5] into register r0:
.text
// The load instruction needed is:
ldr r0, [r1, #n] // Loads A[5] into r0
// What offset n must we use ?
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
DEMO: /home/cs255001/demo/asm/3-array/demo.s
Reading a int typed
array element with
a constant index -
example: A[5]
ARM instructions to fetch A[5] into register r0:
.text
// Preparation:
// r1 = base address of array A
ldr r0, [r1, #20] // Loads A[5] into r0
// The offset of A[5] is 20 bytes !
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
DEMO: /home/cs255001/demo/asm/3-array/demo.s
Reading a int typed
array element with
a constant index -
example: A[5]
ARM instructions to fetch A[5] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
/* ----------------------------------------
Address of A[5] = base addr + 5*4 bytes
---------------------------------------- */
ldr r0, [r1, #20] // Load A[5] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
DEMO: /home/cs255001/demo/asm/3-array/demo.s
Updating a int typed
array element with
a constant index -
example: A[5] = 99
Definition of array variable:
int A[10]; |
Problem:
|
Updating a int typed
array element with
a constant index -
example: A[5] = 99
Address of array element A[5]:
Updating a int typed
array element with
a constant index -
example: A[5] = 99
ARM instructions to update A[5] = 99:
.text
// Given that A is an int typed array
// Translate: A[5] = 99; into ARM assembler code
// Note: we can pre-compute the offset using the index 5 !
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
Updating a int typed
array element with
a constant index -
example: A[5] = 99
ARM instructions to update A[5] = 99:
.text
// The store instruction that you can use:
str r0, [r1, #n] // Write r0 (= 99) into A[5]
// What offset must we use ?
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
Updating a int typed
array element with
a constant index -
example: A[5] = 99
ARM instructions to update A[5] = 99:
.text
// Preparations needed:
// r0 = 99
// r1 = base address of array A
str r0, [r1, #20] // Write r0 (= 99) into A[5]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
Updating a int typed
array element with
a constant index -
example: A[5] = 99
ARM instructions to update A[5] = 99:
.text
mov r0, #99 // r0 = 99
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
/* ----------------------------------------
Address of A[5] = base addr + 5*4 bytes
---------------------------------------- */
str r0, [r1, #20] // Write r0 (= 99) into A[5]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
|
Reading a int typed
array element with
a variable index -
example: A[i]
Definition of array and index variables:
int A[10]; int i; |
Problem:
|
Reading a int typed
array element with
a variable index -
example: A[i]

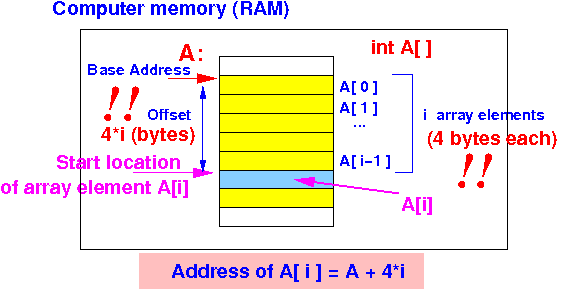

Address of array element A[i]:
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
// Given:
// int i;
// an int array A
// Problem: fetch A[i] into register r0
// Note: the offset depends on the value in i
// The offset can not be pre-calculated !!!
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
// Preparations ?
// The load instruction that must be use
// to fetch the value in A[i]:
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
// Preparations:
// r1 = base address of array A
// r2 = offset computed using index i
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
// Preparation:
// r2 = offset computed using index i
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
// Preparation:
// r2 = i*4
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
movw r2, #:lower16:i
movt r2, #:upper16:i // r2 = address of i
ldr r2, [r2] // r2 = i (offset needed = i*4)
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
movw r2, #:lower16:i
movt r2, #:upper16:i // r2 = address of i
ldr r2, [r2] // r2 = i (offset needed = i*4)
add r2, r2, r2 // r2 = i*2
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
ARM instructions to fetch A[i] into register r0:
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
movw r2, #:lower16:i
movt r2, #:upper16:i // r2 = address of i
ldr r2, [r2] // r2 = i (offset needed = i*4)
add r2, r2, r2 // r2 = i*2
add r2, r2, r2 // r2 = i*4
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Reading a int typed
array element with
a variable index -
example: A[i]
Alternative solution: (no saving in # instructions)
.text
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
movw r2, #:lower16:i
movt r2, #:upper16:i // r2 = address of i
ldr r2, [r2] // r2 = i (offset needed = i*4)
mov r3, #4
mul r2, r3, r2 // r2 = i*4
// Address of A[i] = base addr + i*4 bytes
ldr r0, [r1, r2] // Load A[i] into r0
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
Definition of array and index variables:
int A[10]; int i; |
Problem:
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
Address of array element A[i]:
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
// Given:
// int i;
// an int array A
// Problem: translate A[i] = 99 into ARM assembler code
// Note: the offset depends on the value in i
// The offset can not be pre-calculated !!!
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
// Preparations ?
// The store instruction that must be use
// to write the value to A[i]:
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
// Preparations ?
// r0 = 99
// r1 = base address of array A
// r2 = offset computed using index i
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
movw r0, #99 // r0 = 99
// Preparations ?
// r1 = base address of array A
// r2 = offset computed using index i
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
movw r0, #99 // r0 = 99
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
// Preparations ?
// r2 = offset computed using index i
// Address of A[i] = base addr + i*4 bytes
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
movw r0, #99 // r0 = 99
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
// Preparations ?
// r2 = i*4 (offset)
// Address of A[i] = base addr + i*4 bytes
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
Updating a int typed
array element with
a variable index -
example: A[i] = 99
ARM instructions to update A[i] = 99:
.text
movw r0, #99 // r0 = 99
movw r1, #:lower16:A
movt r1, #:upper16:A // r1 = base address of array A
movw r2, #:lower16:i
movt r2, #:upper16:i // r2 = address of i
ldr r2, [r2] // r2 = i
add r2, r2, r2 // r2 = i*2
add r2, r2, r2 // r2 = i*4
// Address of A[i] = base addr + i*4 bytes
str r0, [r1, r2] // Write r0 (= 99) into A[i]
.data
A: .4byte 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 // array
.align 2
i: .4byte 4
|
