#Make a NS simulator
set ns [new Simulator]
# Define a 'finish' procedure
proc finish {} {
exit 0
}

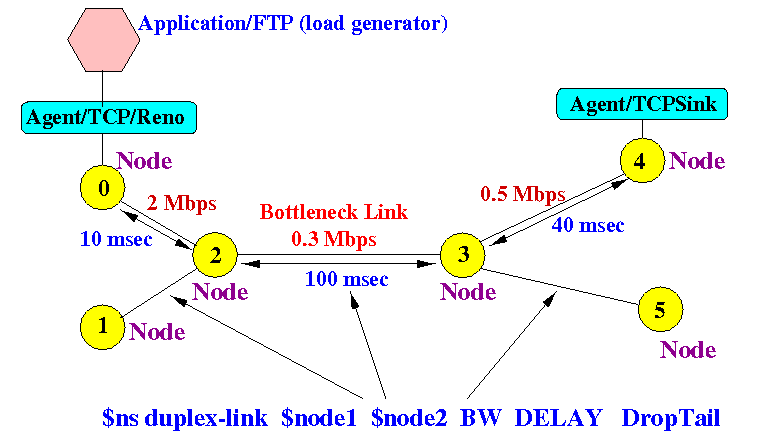

# Create the nodes:
set n0 [$ns node]
set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
set n4 [$ns node]
set n5 [$ns node]

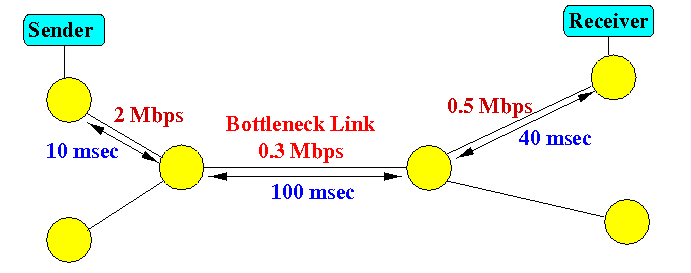

# Create the links:
$ns duplex-link $n0 $n2 2Mb 10ms DropTail
$ns duplex-link $n1 $n2 2Mb 10ms DropTail
$ns duplex-link $n2 $n3 0.3Mb 200ms DropTail
$ns duplex-link $n3 $n4 0.5Mb 40ms DropTail
$ns duplex-link $n3 $n5 0.5Mb 30ms DropTail
# Add a TCP sending module to node n0
set tcp1 [new Agent/TCP/Reno]
$ns attach-agent $n0 $tcp1
# Add a TCP receiving module to node n4
set sink1 [new Agent/TCPSink]
$ns attach-agent $n4 $sink1
# Direct traffic from "tcp1" to "sink1"
$ns connect $tcp1 $sink1
# Setup a FTP traffic generator on "tcp1"
set ftp1 [new Application/FTP]
$ftp1 attach-agent $tcp1
$ftp1 set type_ FTP (no necessary)
# Schedule start/stop times
$ns at 0.1 "$ftp1 start"
$ns at 100.0 "$ftp1 stop"
# Set simulation end time
$ns at 125.0 "finish" (Will invoke "exit 0")
# Run simulation !!!!
$ns run
|
