Due: See class webpage.

Question 1 (40 pts)

Consider a number of inter-connected LAN connected in the following manner:

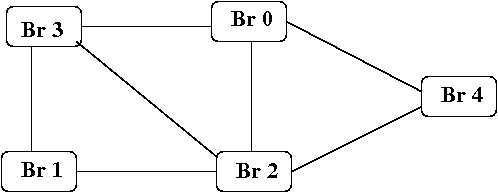

For simplicity, we remove the LANs from the figure:

Questions:

1. Give the values of the initial state of the bridges when they are initialized in the following figure: (10 pts)

   Write the state of the ports in their corresponding boxes.

2. Give the configuration control messages sent by each bridge in the state given above (10 pts)
   • Bridge 0: (id=0, root=0, dist=0)
   • Bridge 1: (id=1, root=1, dist=0)
   • Bridge 2: (id=2, root=2, dist=0)
   • Bridge 3: (id=3, root=3, dist=0)
   • Bridge 4: (id=4, root=4, dist=0)

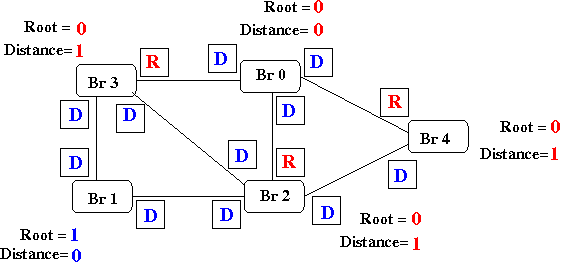

3. Show the values of the state variables of the bridges after the configuration control messages that were transmitted in part 2 (above) have been processed: (10 pts)


4. Show the values of the state variables of the bridges after the Spanning Tree Algorithm has converged to the final state: (10 pts)


Question 2 (30 pts)

1. Given that network is in the state given the following figure:


   There are no blocked port in the above state.

   Give the state of the ports in the above figure (10 pts).



2. Give the configuration control messages sent by each bridge in the state given above (10 pts)
   • Bridge 0: (id=0, root=0, dist=0)
   • Bridge 1: (id=1, root=1, dist=0)
   • Bridge 2: (id=2, root=0, dist=1)
   • Bridge 3: (id=3, root=3, dist=0)
   • Bridge 4: (id=4, root=0, dist=1)

3. Show the values of the state variables of the bridges after the configuration control messages that were transmitted in part 2 (above) have been processed: (10 pts)


Question 3 (30 pts)

Consider a different network topology (the bridges are shuffled)

Questions:

1. Give the configuration control messages sent by each bridge when the bridge starts up. (10 pts)
   • Bridge 0: (id=0, root=0, dist=0)
   • Bridge 1: (id=1, root=1, dist=0)
   • Bridge 2: (id=2, root=2, dist=0)
   • Bridge 3: (id=3, root=3, dist=0)
   • Bridge 4: (id=4, root=4, dist=0)

2. Show the values of the state variables of the bridges after the configuration control messages that were transmitted in part 1 (above) have been processed: (10 pts)


3. Show the values of the state variables of the bridges after the Spanning Tree Algorithm has converged to the final state: (10 pts)
