- Often, some information must be shared by
all the processes in the communication group
- It is therefore convenient to have
Communication Primitives
that to communicate with
all the processes in the communication group
using ONE SINGLE function call .
- Most of the
group communication functions (primitives)
have in common are:
- The group communication primitive
must be
called by all processes in the communicator group
- The group communication primitive
is
synchronously.
(In other words: the messages must be received by all members of the comm. group before the function will return).
- The group communication primitive
must be
called by all processes in the communicator group
- Here are the list of MPI's
group communication primitives :
-
MPI_Bcast
(sendbuf, sendcount, sendtype, rootID, communicator)
-
Send the message in "sendbuf" to all processes
-
MPI_Scatter
(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, rootID, communicator)
-
Sender rootID distributes (scatters)
the message in "sendbuf" among all processes
in the communication group
-
MPI_Gather
(sendbuf, sendcount, sendtype, recvbuf, recvcount, recvtype, rootID, com
municator)
-
Processor rootID
receives messages from all other processors
and
concatenate
the output
in the "recvbuf"
-
MPI_Reduce
(sendbuf, recvbuf, count, type, op, rootID, communicator)
-
Processor rootID
receives messages from all other processors
and
performs the operation
op
on the received data.
The final outcome is stored in the "recvbuf" variable.
-
MPI_Bcast
(sendbuf, sendcount, sendtype, rootID, communicator)
- These functions are best illustrated with some examples
- Broadcasting is sending a message to
all members (including yourself)
of the group
- Syntax of the MPI_Bcast() call:
MPI_Bcast(void* buffer, int count, MPI_Datatype datatype, int rootID, MPI_Comm comm )
- Effect of the MPI_Bcase() function:
- The MPI process "rootID"
sends the
data in "buffer"
to all other members
in the communication group "comm"

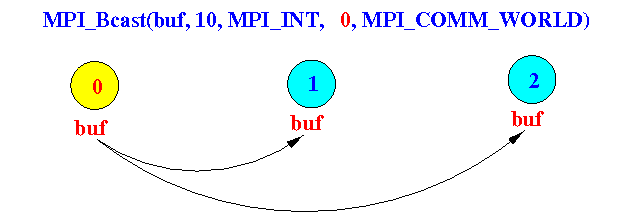

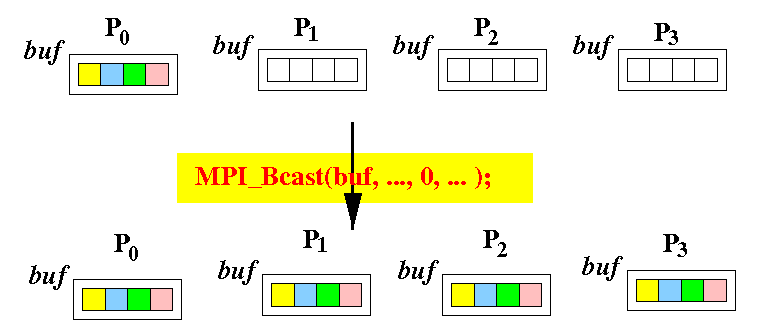

- Illustrated:
Psuedo code that describes what happens in a MPI_Bcast():
if ( myID == rootID ) { for ( every ID i in the communication set "comm" ) { MPI_Send( buffer, count, datatype, i, TAG, comm); } } else { MPI_Recv( buffer, count, datatype, rootID, TAG, comm); }Example 1: source is node 0

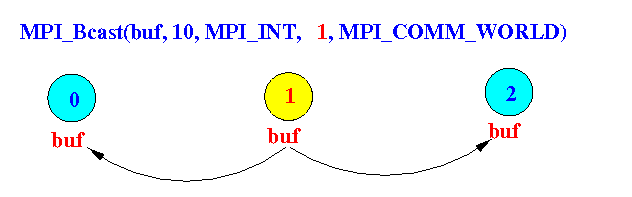

Example 2: source is node 1
- The MPI process "rootID"
sends the
data in "buffer"
to all other members
in the communication group "comm"
- Example code:
int main(int argc, char **argv) { char buff[128]; int secret_num; int numprocs; int myid; int i; MPI_Status stat; MPI_Init(&argc,&argv); MPI_Comm_size(MPI_COMM_WORLD,&numprocs); MPI_Comm_rank(MPI_COMM_WORLD,&myid); // ------------------------------------------ // Node 0 obtains the secret number // ------------------------------------------ if ( myid == 0 ) { secret_num = atoi(argv[1]); } // ------------------------------------------ // Node 0 shares the secret with everybody // ------------------------------------------ MPI_Bcast (&secret_num, 1, MPI_INT, 0, MPI_COMM_WORLD); if ( myid == 0 ) { for( i = 1; i < numprocs; i++) { MPI_Recv(buff, 128, MPI_CHAR, i, 0, MPI_COMM_WORLD, &stat); cout << buff << endl; } } else { sprintf(buff, "Processor %d knows the secret code: %d", myid, secret_num); MPI_Send(buff, 128, MPI_CHAR, 0, 0, MPI_COMM_WORLD); } MPI_Finalize(); }
- Example Program:
(Demo above code)
- Prog file: click here
Demo instruction:
- ssh2 puma
- cd sunhome/teaching/web/355/Syllabus/92-MPI/Progs
- mpiCC -o BCast BCast.C
- mpirun -np 4 ./BCast
- The
MPI_Scatter()
is used to
split an array
into N parts and
send
one of the parts to each MPI process
- Syntax of the
MPI_Scatter()
call:
MPI_Scatter(void* sendbuf, // Distribute sendbuf evenly to recvbuf int sendcount, // # items sent to EACH processor MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, int rootID, // Sending processor ! MPI_Comm comm)
- sendbuf - the data (sendbuf in the rootID processor must have valid data)
- sendcount
- number of items sent to each process
(valid for rootID only)
- Items [0, (sendcount - 1)]
are sent to
processor 0
Items [sendcount, (2*sendcount - 1)] are sent to processor 1
And so on...

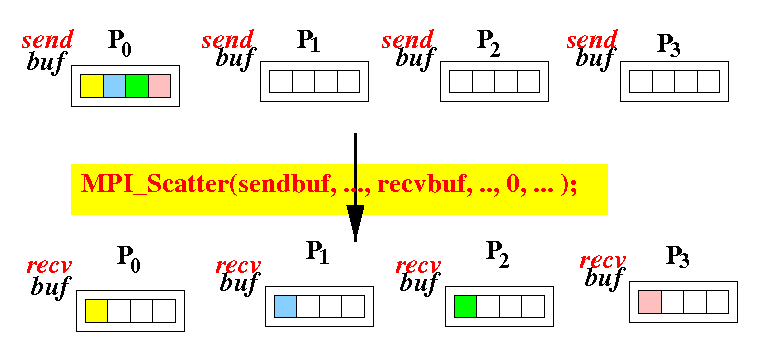

- Illustrated:
- NOTE: the user must may sure that the sendbuf contains sendcount * numprocs items !!!
- Items [0, (sendcount - 1)]
are sent to
processor 0
- sendtype
- type of data sent
(valid for rootID only)
- recvbuf - buffer for receiving data
- recvcount - number of items to receive
- recvtype
- type of data received
- rootID - id of root processor (who is doing the send operation)
- comm - the communicator group
- NOTES:
- The types of data sent and data received should match:
sendtype equal to
recvtype
- The amount of data received should be the amount sent:
sendcount equal to
recvcount
(Because in the worst case scenario, all data will end up in the buffer of 1 processor)
However: these rules are not strictly enforced.
(Don't blame MPI for causing "funny errors" if you decide to violate these rules :-))
- The types of data sent and data received should match:
sendtype equal to
recvtype
- Example 1: source is
node 0

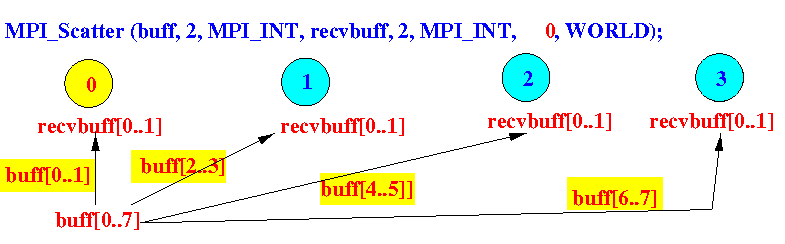

- The effect of
MPI_Scatter() where
node 0 is
the scatterer:
Note:
- Node 0 will
also scatter data into
its own recvbuff[ ] !!!
- The data is always stored in the same locations (first 2 elements) in every recvbuff[ ]
- Node 0 will
also scatter data into
its own recvbuff[ ] !!!

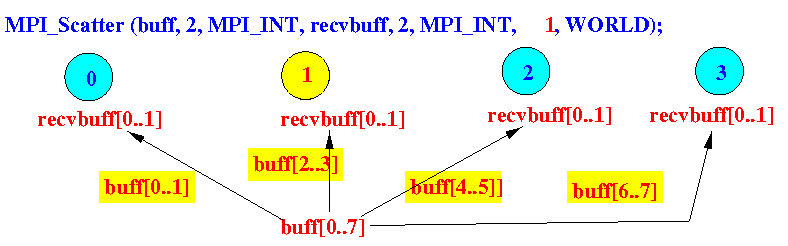

- The effect of
MPI_Scatter() where
node 1 is
the scatterer:
- The effect of
MPI_Scatter() where
node 0 is
the scatterer:
- Programming Example:
- Processor 0 distributes 2 integer to every processor
- Each processor adds the numbers and returns the sum to proc 0
int main(int argc, char **argv) { int buff[100]; int recvbuff[2]; int numprocs; int myid; int i, k; int mysum; MPI_Status stat; MPI_Init(&argc,&argv); MPI_Comm_size(MPI_COMM_WORLD,&numprocs); MPI_Comm_rank(MPI_COMM_WORLD,&myid); if ( myid == 0 ) { cout << "WE have " << numprocs << " processors" << endl; // ----------------------------------------------- // Node 0 prepare 2 number for each processor // [1][2] [3][4] [5][6] .... etc // ----------------------------------------------- k = 1; for ( i = 0; i < 2*numprocs; i += 2 ) { buff[i] = k++; buff[i+1] = k++; } } // ------------------------------------------ // Node 0 scatter the array to the processors: // ------------------------------------------ MPI_Scatter (buff, 2, MPI_INT, recvbuff, 2, MPI_INT, 0, MPI_COMM_WORLD); ^^^ !!! ^^^ !!! if ( myid == 0 ) { // Processor 0 mysum = recvbuff[0] + recvbuff[1]; cout << "Processor " << myid << ": sum = " << mysum << endl; for( i = 1; i < numprocs; i++) { MPI_Recv(&mysum, 1, MPI_INT, i, 0, MPI_COMM_WORLD, &stat); cout << "Processor " << i << ": sum = " << mysum << endl; } } else { // Other processors mysum = recvbuff[0] + recvbuff[1]; MPI_Send(&mysum, 1, MPI_INT, 0, 0, MPI_COMM_WORLD); } MPI_Finalize(); }
- Example Program:
(Scatter)
- Prog file: click here
Demo instruction:
- ssh2 puma
- cd sunhome/teaching/web/355/Syllabus/92-MPI/Progs
- mpiCC -o Scatter Scatter.C
- mpirun -np 4 ./Scatter
- The
MPI_Gather()
is usually used in conjunction with
the
MPI_Gather()
call.
It does the reverse of MPI_Gather()....

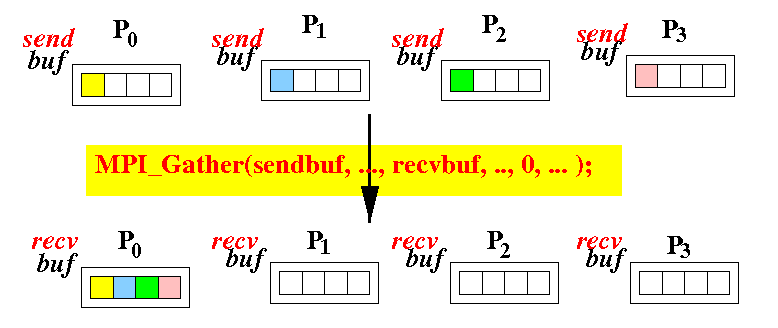

Illustrated:
- Syntax of the
MPI_Gather()
call:
MPI_Gather(void* sendbuf, int sendcount, MPI_Datatype sendtype, void* recvbuf, int recvcount, MPI_Datatype recvtype, int rootID, MPI_Comm comm)
- sendbuf - the data (must be valid for ALL processors)
- sendcount - number of items that will be sent to the rootID process
- sendtype
- type of data sent
- recvbuf - buffer for receiving data
- recvcount
- number of items to receive (per processor)
NOTE: the number of items received in recvbuf of the rootID process will be equal to: recvcount * numprocs - recvtype
- type of data received
- rootID - id of root processor who is doing the RECEIVE operation
- comm - the communicator group
- NOTES:
- The types of data sent and data received should match:
sendtype equal to
recvtype
- The amount of data received should be the amount sent: sendcount equal to recvcount
Again: these rules are not strictly enforced.
(And again, don't blame MPI for causing "funny errors" if you decide to violate these rules....)

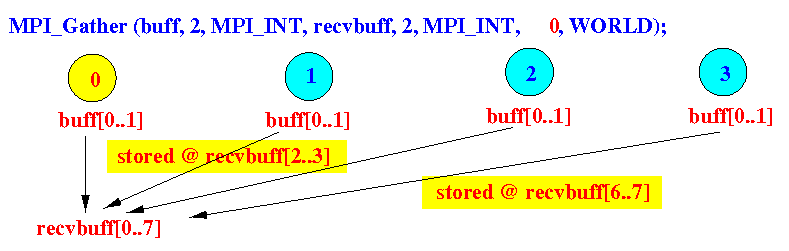

Example 1: the "getherer" is node 0

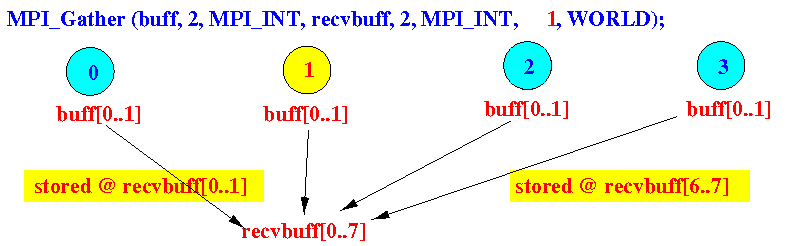

Example 2: the "getherer" is node 1
- The types of data sent and data received should match:
sendtype equal to
recvtype
- Example: Same example above, with MPI_Gather()
- Processor 0 distributes 2 integer to every processor
- Each processor adds the numbers and returns the sum to proc 0
int main(int argc, char **argv) { int buff[100]; int recvbuff[2]; int numprocs; int myid; int i, k; int mysum; MPI_Status stat; MPI_Init(&argc,&argv); MPI_Comm_size(MPI_COMM_WORLD,&numprocs); MPI_Comm_rank(MPI_COMM_WORLD,&myid); if ( myid == 0 ) { cout << "WE have " << numprocs << " processors" << endl; // ----------------------------------------------- // Node 0 prepare 2 number for each processor // [1][2] [3][4] [5][6] .... etc // ----------------------------------------------- k = 1; for ( i = 0; i < 2*numprocs; i += 2 ) { buff[i] = k++; buff[i+1] = k++; } } // ------------------------------------------ // Node 0 scatter the array to the processors: // ------------------------------------------ MPI_Scatter (buff, 2, MPI_INT, recvbuff, 2, MPI_INT, 0, MPI_COMM_WORLD); mysum = recvbuff[0] + recvbuff[1]; // Everyone calculate sum // ------------------------------------------ // Node 0 collects the results in "buff": // ------------------------------------------ MPI_Gather (&mysum, 1, MPI_INT, &buff, 1, MPI_INT, 0, MPI_COMM_WORLD); // ------------------------------------------ // Node 0 prints result // ------------------------------------------ if ( myid == 0 ) { for( i = 0; i < numprocs; i++) { cout << "Processor " << i << ": sum = " << buff[i] << endl; } } MPI_Finalize(); }
- Example Program:
(Scatter)
- Prog file: click here
Demo instruction:
- ssh2 puma
- cd sunhome/teaching/web/355/Syllabus/92-MPI/Progs
- mpiCC -o Gather Gather.C
- mpirun -np 4 ./Gather
- Often, the data gathered by the
MPI_Gather()
need to be operated on to produce the final result.
- For example, results of the computations could be
a part of a sum and the results gathered needs to
be
added up
to produce the final sum.
- MPI provides a
convenient on the fly
gather and compute
function to make the programming easier:
MPI_Reduce()....
- Syntax of the
MPI_Reduce()
call:
MPI_Reduce(void* sendbuf, void* recvbuf, int recvcount, MPI_Datatype recvtype, MPI_Op op, int rootID, MPI_Comm comm)
- sendbuf
- the data
(must be valid for ALL processors)
- recvbuf - buffer used to receiving data and simultaneously perform the "reducing operation".
- recvcount
- number of items to receive (per processor)
NOTE: each item received will be immediately incorporated into the variable recvbuf !!! - recvtype - type of data received
- op
- type of operation
used as the "reducing operation"
- rootID - id of root processor who is doing the RECEIVE and REDUCE operation
- comm - the communicator group
- sendbuf
- the data
(must be valid for ALL processors)
- NOTES:
- The types of data sent and data received should match
- The amount of data received should be the amount sent
Again: these rules are not strictly enforced.
(And again, don't blame MPI for causing "funny errors" if you decide to violate these rules....)
- The types of data sent and data received should match

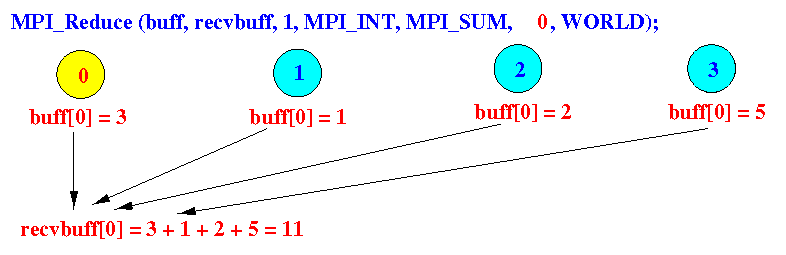

- Example: node 0 performs
the (reducing) MPI_SUM operation

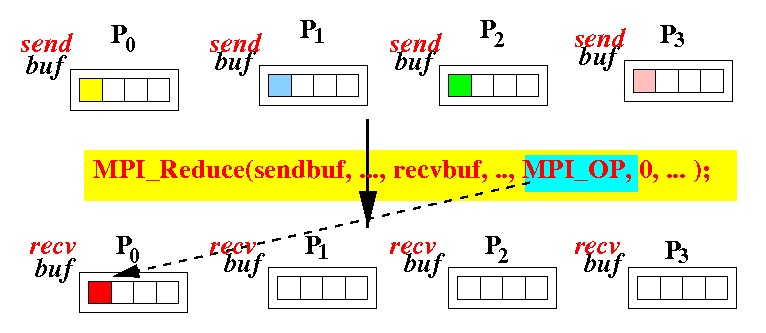

The effect is the same as:
- Perform a gather operation
- Perform the num operation on all data that was gathered (it is done "on the fly" - done when a data item is received)
- Available Reduction Operations:
(directly from MPI)
MPI Reduction Operation Effect of the Reduction Operation MPI_MAX Finds the maximum value MPI_MIN Finds the minimum value MPI_SUM Computes the sum of all value MPI_PROD Computes the product of all value MPI_LAND Computes the "logical AND" of all value (0 = false, non-zero = true) MPI_BAND Computes the "Bitwise AND" of all value MPI_LOR Computes the "logical OR" of all value (0 = false, non-zero = true) MPI_BOR Computes the "Bitwise OR" of all value MPI_LXOR Computes the "logical XOR" of all value (0 = false, non-zero = true) MPI_BXOR Computes the "Bitwise XOR" of all value MPI_MAXLOC Find the maximum value and the processor ID that has the value
(you need to pass a structure with these 2 elements: (double value, int rank))MPI_MINLOC Find the minimum value and the processor ID that has the value
(you need to pass a structure with these 2 elements: (double value, int rank))
- Example: computing Pi using MPI_Reduce()
- Each processor computes a part of the integral
- Processor 0 adds the returned sums together
double f(double a) { return( 2.0 / sqrt(1 - a*a) ); } /* ======================= MAIN ======================= */ int main(int argc, char *argv[]) { int N; double w, x; int i, myid; double mypi, final_pi; MPI_Init(&argc,&argv); // Initialize MPI_Comm_size(MPI_COMM_WORLD, &num_procs); // Get # processors MPI_Comm_rank(MPI_COMM_WORLD, &myid); // Get my rank (id) if ( myid == 0 ) N = atoi(argv[1]); MPI_Bcast (&N, 1, MPI_INT, 0, MPI_COMM_WORLD); w = 1.0/(double) N; /* ******************************************************************* */ mypi = 0.0; for (i = myid; i < N; i = i + num_procs) { x = w*(i + 0.5); mypi = mypi + w*f(x); } /* ******************************************************************* */ MPI_Reduce ( &mypi, &final_pi, 1, MPI_DOUBLE, MPI_SUM, 0, MPI_COMM_WORLD); if ( myid == 0 ) { cout << "Pi = " << final_pi << endl << endl; } MPI_Finalize(); }
- Example Program:
(Scatter)
- Prog file: click here
Demo instruction:
- ssh2 puma
- cd sunhome/teaching/web/355/Syllabus/92-MPI/Progs
- mpiCC -o MPI-Pi2 MPI-Pi2.C
- mpirun -np 4 ./MPI-Pi2
Advanced material below: skipped !!! (Read on by yourself if you're interested)
- MPI allows you to define your own
reduction operation
to be used in the
MPI_Reduce()
function.
- You define your own
reduction operation
as follows:
MPI_Op_create(MPI_User_function *function, int commute, MPI_Op *op)- function - the function that you want to use to perform the reduction operation
- commute - set this parameter to 0 (zero) if the operation does NOT commute, otherwise (if "a op b" = "b op a"), set it to 1 (ONE)
- op - return value: the operation handle that you need to pass to MPI_Reduce().
- The function that you use
to perform the
reduction operation
MUST have the following form :
void function_name( void *in, void *inout, int *len, MPI_Datatype *datatype);- in - pointer to the first operand
- inout
- pointer to the
second operand
The second operand is also the output variable - len - number of elements in in and inout
- datatype - the type of data stored in in and inout
-
Example: use our own SUM function in MPI_Reduce()
void myAdd( void *a, void *b, int *len, MPI_Datatype *datatype) { int i; if ( *datatype == MPI_INT ) { int *x = (int *)a; // Turn the (void *) into an (int *) int *y = (int *)b; // Turn the (void *) into an (int *) for (i = 0; i < *len; i++) { *y = *x + *y; x++; y++; } } else if ( *datatype == MPI_DOUBLE ) { double *x = (double *)a; // Turn the (void *) into an (double *) double *y = (double *)b; // Turn the (void *) into an (double *) for (i = 0; i < *len; i++) { *y = *x + *y; x++; y++; } } } double f(double a) { return( 2.0 / sqrt(1 - a*a) ); } /* ======================= MAIN ======================= */ int main(int argc, char *argv[]) { int N; double w, x; int i, myid; double mypi, final_pi; MPI_Op myOp; MPI_Init(&argc,&argv); // Initialize MPI_Comm_size(MPI_COMM_WORLD, &num_procs); // Get # processors MPI_Comm_rank(MPI_COMM_WORLD, &myid); // Get my rank (id) if ( myid == 0 ) N = atoi(argv[1]); MPI_Bcast (&N, 1, MPI_INT, 0, MPI_COMM_WORLD); w = 1.0/(double) N; /* ******************************************************************* */ mypi = 0.0; for (i = myid; i < N; i = i + num_procs) { x = w*(i + 0.5); mypi = mypi + w*f(x); } /* ******************************************************************* */ MPI_Op_create( myAdd, 1, &myOp); MPI_Reduce ( &mypi, &final_pi, 1, MPI_DOUBLE, myOp, 0, MPI_COMM_WORLD); if ( myid == 0 ) { cout << "Pi = " << final_pi << endl << endl; } MPI_Finalize(); }
- Example Program:
(Scatter)
- Prog file: click here
Demo instruction:
- ssh2 puma
- cd sunhome/teaching/web/355/Syllabus/92-MPI/Progs
- mpiCC -o MPI-Pi3 MPI-Pi3.C
- mpirun -np 4 ./MPI-Pi3
- A
barrier
is a
location in the program
where all processes will synchronize
- You set a
barrier
in a program to make sure that
all processes has reached the point
before proceeding
- Syntax of the MPI_Barrier() call:
MPI_Barrier( MPI_Comm comm )
Effect:
-
The MPI process will
wait
untill
all processes in the communicator group
has reach this point in their execution
