- Summary:
(a how to guide)
- When the stack is
used to pass parameters and store local variables,
the method/function will
always
construct
(= organize) the
(1) parameters, (2) local variable, (3) FP and
(4) return address in the following
data structure
as follows:

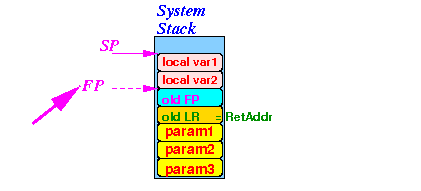

This data structure is called a (subroutine) activation record or stack frame
Wikipedia page: click here
- These are the
prescribed action
(= recipe) that
a method (program) must do
in order for a method/function
to use the stack
to
pass parameters and store local variables:
- The calling method will
push the
parameters on the
stack
and the
call the
method
Example:

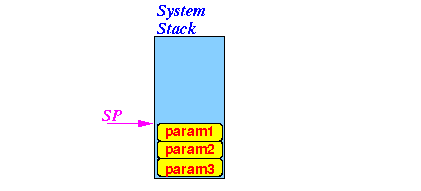

load parameter 3 into r0 push {r0} load parameter 2 into r0 push {r0} load parameter 1 into r0 push {r0} bl Method/FunctionThis will result in the following stack:
- When the called function
returns, the
pushed parameters will
still be on the stack !!!
The calling function must de-allocate the pushed parameters from the stack
Example:
add sp, sp, #12 // De-allocate 12 bytes from the stack
- When the called method/function
starts running, the
stack will only
contain the
parameters:
The called method/function must first use this specific sequence of assembler instruction to build/complete the stack frame (activation record) structure :

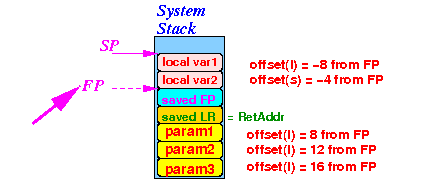

push {lr} // Save the shared LR reg (contains return addr) push {fp} // Save the shared FP reg (contains the base addr of stack frame) mov fp, sp // Establish the base address in the FP register sub sp, sp, #N // Allocate N bytes for local variablesThis sequence of instruction is called the prelude of a method and will build this data structure (it's called an activation record or stack frame):
- After the prelude, you can
write the instructions of the
method (in assembler code)
The instructions can access the parameters and local variable using some offset from the base address in the FP register:
The offset of the 1st parameter is 8 (from the base address in FP)
The offset of the 2st parameter is 12 (from the base address in FP)
Etc.The offset of the 1st local variable is -8 (from the base address in FP)
The offset of the 2st local variable is -4 (from the base address in FP)
Etc.
- When the method/function want to
return (to its caller), the
method/function must use
this specific sequence of
assembler instructions
to break down the
stack frame and return:
put the return value in the return location (usually r0) mov sp, fp // De-allocates the local variables pop {fp} // Restore the old FP value pop {pc} // Return to the callerThis sequence of instruction is called the postlude of a method
- The calling method will
push the
parameters on the
stack
and the
call the
method
- When the stack is
used to pass parameters and store local variables,
the method/function will
always
construct
(= organize) the
(1) parameters, (2) local variable, (3) FP and
(4) return address in the following
data structure
as follows:
- Passing the
return value is
independent from
passing parameters
- Because the
return value
can be contained
in a register,
we can always
pass the
return value using
a register !!!
- We will typically use register r0 to pass the return value back to the caller method
Note: return value
|
|
