How is an object stored in memory

---

• Classes and objects
  • Linked lists are objects

    So we must first study how objects are stored in memory before we can study how linked lists are stored in memory...

    ---

  • When you define a class, e.g.:

    public class BankAccount { int accNum; double balance; public double getBalance( ) { return balance; } // Other methods omitted for brevity }

    the Java compiler will separate the instance variables and the methods in the class.

    The Java compiler will collect all the instance variables in the class and place the variables in the class definition one-after-another in memory and compute the amount of memory needed to store all the (instance) variables in the class.

    Note:

    The Java compiler will obey the alignment requirements for each variable when it computes the necessary memory !!!         For a discussion of alignment requirements, see this webpage: click here

    When we create an object in a Java program, the Java compiler will allocate (= reserve) the computed amount of memory

  ---

  ---

  ---

  ---

• An example of storing objects
  • Suppose we have the following class definition:

    public class myClass1 { int x; int y; int z; // Methods omitted because they are not relevant // in memory need computation.... }

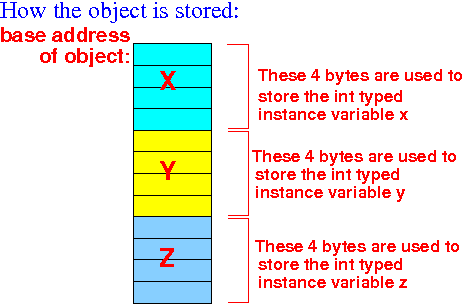

    When you create an object of the class myClass1, the Java compiler will reserve 12 bytes of memory and store the instance varaibles of the myClass1 object as follows:

    The Java compiler will remember :

    The base address of the object. The structure of the object

  ---

  ---

  ---

  ---

• Accessing the individual components in an object
  • In Java, you have used the following syntax to access the different components in an object:

    objVar.x = the x component (variable) in the object objVar objVar.y = the y component (variable) in the object objVar

    Notice that each component variable is a primitive typed variable

    This notation is a very convenient way for the Java programmer to access a component variable in an object

    The Java compiler provide this easy syntax to the Java programmer to help him write code that uses components inside an object

    When you write a program without the help of the Java compiler (i.e., in assembler), you will need to do a lot of work yourself !!!

    Let me explain what exactly is going on inside the Java compiler first when it access a component in an object.

    ---

    ---

  • In order to access the components (= instance variables) in the object, the Java compiler will use:

    Base address(object) + offset of component in object

    to compute the address of the component.

    Furthermore, the Java compiler will calculate the offset of each component of the object using the class definition

    Example:

    public class myClass1 { int x; <--- First component always has offset = 0 int y; <--- Offset(y) = 4 because x is an int (4 bytes) int z; <--- Offset(z) = 8 because there are 2 ints preceeding z // Methods omitted because they are not relevant // in memory need computation.... }

    The Java compiler will remember that:

    Offset for the x component of the object = 0 (because there are no components preceeding x) Offset for the y component of the object = 4 (because int x (4 bytes) preceeds y) Offset for the z component of the object = 8 (because int x, y (4+4 bytes) preceed z)

    The Java compiler must also remember the data type of each component in the object.

    ---

    ---

  • Important fact:

    Using: The type information of each component The offset information of each component the Java compiler (and you) can access the object component stored in the memory !!!

    We will learn how to do so in the next webpage.

  ---

  ---

  ---

  ---

• Linked list
  • A linked list is nothing more than an object where one of its component (= instance variable) is a reference variable

    Example:

    public class List { int value; List next; // This is a "reference" variable !! .... }

    Recall that a reference is an memory address (see: click here)

    A reference variable is a variable that stores a memory address !!!

    Recall that a memory address is a 32 binary unsigned integer value

    So a reference variable is a 4 byte variable that stores an unsigned 32 bit binary number
