Moving an integer value (integer constant) into a register

---

• Motivation: moving (integer) values into registers
  • Fact:

    Registers are the most important resource inside the CPU because they are used as: Input operands for all computer operations

    So before you can perform a computation with some value, you usually need to:

    Move that value into one of the (general purpose) register first.

    We will start learning how to move small integer values into registers.

    Then we will learn how to move large (any) integer value into registers.

    Next we will learn how to move values stored in memory variables into registers and vice versa.

  ---

  ---

  ---

  ---

• The mov instruction
  • The mov instruction is used to move (= store) a small integer value into a (general purpose) register

  • The assembler syntax to move the value x to register rN (any register in the ARM processor) is:

    mov rN, #x

    The value x will be stored as a 32 bit 2's complement number inside the register rN (X is any number between 0 and 10).

    Examples:

    mov r0, #4 // Stores 00000000000000000000000000000100 in r0 mov r0, #15 // Stores 00000000000000000000000000001111 in r0

    ---

  • Example Program: (Demo above code)
    • Prog file: /home/cs255001/demo/asm/2-mov/mov-intro.s on a lab machine

    How to run the program:

    To compile:   as255 mov-intro          To run: use EGTAPI

  ---

  ---

  ---

  ---

• What is considered a "small" integer value
  • The ARM processor has a pretty complicated way to encode a number in the mov instruction.

    The format to encode the instruction to move the value x to register number dest is:

    mov r0, #x is encoded in ARM as: +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | | | | |0|0|1|1|1|0|1|S|x|x|x|x| dest | value (x) | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ <-----> <-----> <-----> <---------------------> 1 1 1 0 "mov" not used 12 bits unconditional (S = 0 means: don't set the condition codes) (S = 1 means: set the condition codes according to the result of the operation)

    The mov instruction has only 12 bits to represent the value x.

    Without going in the details on how the ARM processor uses these 12 bits to represent numeric values (it uses a very complicated method), you can deduce from the fact that:

    12 bits is not enough bits to represent all int typed values Because: The int typed values ranges between −231 .. (231−1) which requires 32 bits to represent all of them !!!

    ---

    ---

  • Postscript: (only intended for the curious student)

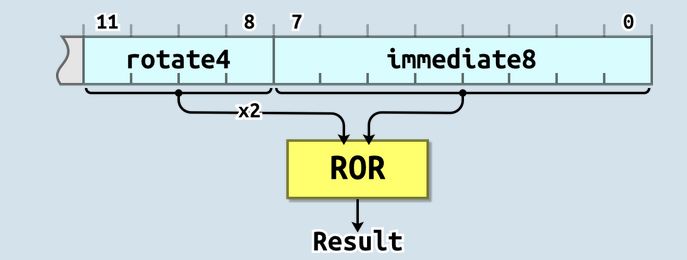

    To satisfy the curiosity of some students, here's how the ARM process encodes a constant using its 12 bits: The last 8 bits encodes a 8 bits unsigned binary number The first 4 bits encodes a "rotation count" - but this count is multiplied by 2: If rotate4 = 0, the 8 bits constant is not rotated If rotate4 = 1, the 8 bits constant is rotated left 2 positions If rotate4 = 2, the 8 bits constant is rotated left 4 positions (and so on) This encoding makes it extremely hard (or impossible) for humans (without using a binary number calculator) to figure out which integer constant can be represented !!! Reference: click here

    Post postscript:

    The ARM processor may be using more bits to encode constants since that article was written because: I was able to use the constant 0x000001FE (= 510 decimal) in the mov instruction (which was supposed to be illegal according to the article)

    ---

    ---

    As a rule of thumb:

    The mov instruction can use any integer values that is in the range of -100 .. 100             (The range is (a bit) larger that what I have stated above, but the value 100 is easy to remember)

  ---

  ---

  ---

  ---

• Illustrating the mov instruction in EGTAPI
  • Consider the following ARM assembler (source) program with 3 mov instructions:

    main: mov r0, #4 // Instr code: e3 a0 00 04 (4 is stored in binary!) mov r0, #15 // Instr code: e3 a0 00 0f (15 is stored in binary!) mov r1, #123456 // mov cannot handle very large values // Comment the above instruction to compile

    After assembly (= compiling), the assembler will generate the following machine instruction codes for the first 2 instructions:

    Assembler instrcution Machine code ----------------------- -------------- mov r0, #4 --> 1110 0011 1010 0000 0000 0000 0000 0100 (e3 a0 00 04) mov r0, #15 --> 1110 0011 1010 0000 0000 0000 0000 1111 (e3 a0 00 0f) mov r0, #123456 --> Error: invalid constant (1e240) after fixup (123456 = 1e240 Hex)

    Observe that:

    You can write a number in decimal number string text in the assembler program, and the assembler will convert the numeric number in text format into a 2's complement binary number I.e.: The assembler has used the ASCII to binary conversion algorithm (see: click here ) during the translation process !!! Using a large integer value (such as 123456) will cause an error There is not enough bits in the mov instruction to encode large integer values

    So as a rule of thumb:

    You can use the mov instruction on integer values between -100 .. 100

  ---

  ---

  ---

  ---

• What if you need larger integer values ?
  • The ARM processor can use larger integer values...

    Except that:

    It's more complicated and requires 2 instructions

    We will learn how to move larger values into a register next...
