The compare and conditional branch instructions

Making choices

Although we can change the program flow with the branch instruction, we still need a mechanism to make choices in order to implement the if and the while statement !!

We will study 2 assembler instructions first:

The compare instruction that compares (= subtracts) 2 values
The conditional branch instructions (plural !) that use the summary result of a compare instruction to decide if the branch should be "taken" or "not taken".

The compare (cmp) assembler instruction

The Compare Instruction of the ARM processor has the following syntax:

cmp srcReg, op Computes the difference srcReg − op and sets the status flags (N,Z,V,C) according to the outcome of the subtraction You can use as op: 1. a register 2. a small constant (between -1000 and 1000) The effect of a subtraction is to compare the value in register srcReg against the value specified by op The register srcReg is NOT updated by the compare instruction ! Only the N,Z,V,C flags are updated

When you compare 2 values x and y, the ARM processor will actually subtract the values (i.e., computes: x - y) and the ARM processor will then set the condition flags according to the result of the subtraction.

Here is a program that illustrate the effect of CMP:

// File: /home/cs255001/demo/asm/6-if/cmp.s main: mov r0, #10 // r0 = 10 // Compare 2 equal values: check the flags !!! cmp r0, #10 // N=0, Z=1, C=1, V=0 // Compare against a smaller value: check the flags !!! cmp r0, #6 // N=0,Z=0,C=1,V=0 // Compare against a larger value: check the flags !!! cmp r0, #16 // N=1,Z=0,C=0,V=0

Look carefully at the flags when you run the program.

You do not need to know how the NZVC flag bits are changed by the cmp instruction - that is too much detail

The only fact I want yo to take away from this demo program is:

The flags are changed to reflect the result of the subtraction
The setting of the flags contains enough information for the processor to determine which value in the cmp instruction was larger, smaller or equal !!!

Note:

The cmp instruction by itself is not doing much (it only set flags...).
You will only appreciate its power when the cmp instruction is followed by a conditional branch/jump instruction ! (discussed next)

The conditional and unconditional branch instructions

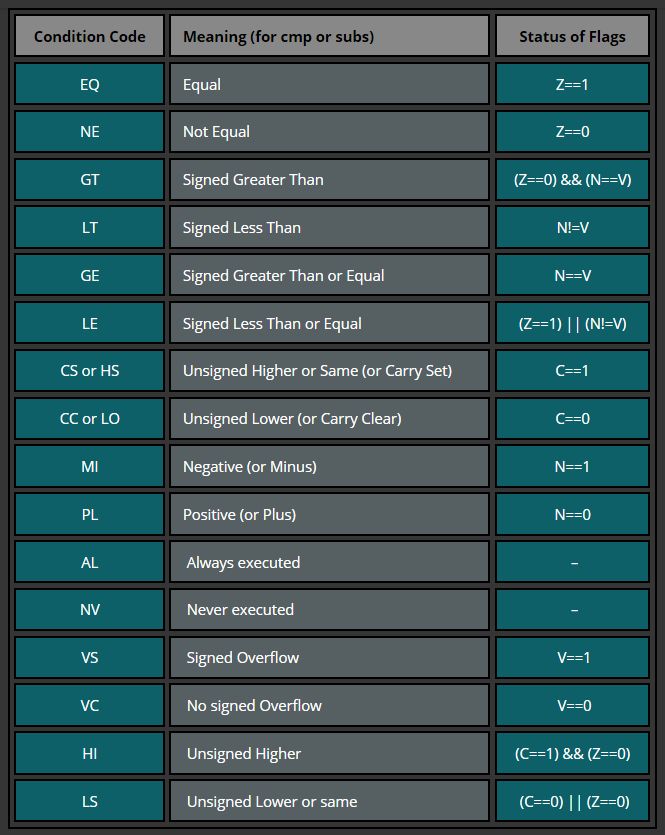

There are 16 branch conditions possible in (ARM) assembler programming:

BUT only 6 of them are relevant to compare signed values:

We will only study (and use) these 6 conditional branch instructions:

beq - branch on equal condition bne - branch on not equal condition bgt - branch on greater than condition blt - branch on less than condition bge - branch on greater than or equal condition ble - branch on less than or equal condition

All the conditional branch instructions operate the same way.

I will discuss one of them in details first, and then the other 5 will be described just briefly.

I will use "Branch if LESS THAN" (BLT) for the discussion:

blt label If the status flags, at the moment that this instruction is executed, indicates that the cmp operation resulted in a "LESS THAN" condition, the CPU will "branch" or "jump" to the instruction marked by label If the status flags indicates the otherwise (i.e., "NOT LESS THAN"), then the CPU will continue the execution with the next instruction (i.e., the instruction that follows the blt instruction)

Example:

mov r0, #5 // r0 = 5 - try changing this to 15 // Compare 2 values... cmp r0, #10 blt there // Branch to label "there" if r0 < 10 mov r1, #4444 mov r2, #4444 mov r3, #4444 there: mov r4, #4444 mov r5, #4444 mov r6, #4444

Effect of the "blt there" instruction in this program is as follows:

If the value in register r0 is less than 10, the "blt there" instruction will make the CPU jump to the memory location marked by the "there" label
The program execution will jump to the mov r4, #4444 is at, and continue the program execution from that point onward (and it will not return back where it came from).
If the value in register r0 is greater than or equal to 10, the "blt there" instruction does nothing at all (since condition is false) and the CPU will continue the program execution with the next instruction which is mov r1, #4444

Example Program: (Demo above code)
- Prog file: /home/cs255001/demo/asm/6-if/blt.s
How to run the program:
Try changing the instruction mov r0, #5 to mov r0, #15 and run the program again - it will not branch in this case !!!

Importan note:

Be very careful with the order of the operands in the cmp instruction !
This sequence of assembler code:
will branch to the label there if r0 < r1
But:
will branch to the label there if r1 < r0 (i.e.: r0 > r1 - greater than !!!)
So don't put use registers in the wrong order !!!

The 6 (signed value) conditional branch assembler instructions

Here is the list of all 6 conditional branches in ARM:

beq: branch if condition flags indicate last cmp instruction resulted in the equal condition (this one is easy: the Z flag is set !)
bne: branch if condition flags indicate last cmp instruction resulted in the not equal condition (this one is easy: the Z flag is reset !)
blt: branch if condition flags indicate last cmp instruction resulted in the less than condition
ble: branch if condition flags indicate last cmp instruction resulted in the less than or equal condition
bgt: branch if condition flags indicate last cmp instruction resulted in the greater than condition
bge: branch if condition flags indicate last cmp instruction resulted in the greater than or equal condition

And then there is one unconditional branch instruction in ARM:

Note:

You know all there is to know about assembler instructions to write "if", "if-else", "while", "for" and "do-while" control statements in any high level programming language !!!
But doing it corrrectly requires that you understand what is going on when each of these control statements are executed.
I.e.: you need to understand the flow of control of the program

We will examine each control statement and give the "blue print" on how the control statement can be translated into assembler code.
