Translating a compound boolean expression


Compound boolean expressions use

  • &&   (and operator)
  • ||   (or operator)

Example:

   if (a <= x && x <= b)
      x = x + 1;
   else
      x = x - 1;




Compilers use the short-circuit boolean evaluation technique to translate compound boolean expressions

Short-circuit boolean evaluation technique for && expressions


The short-circuit boolean evaluation for the AND clause is based on the following:

  condition1 && condition2:

     If  condition1 = false
     then
         Outcomefalse    // Outcome can be computed
                            // with ONE condition


     If  condition1 = true
     then
         Outcomecondition2




We can construct a program flow for a compound && boolean expression using the above short-circuit boolean evaluation technique

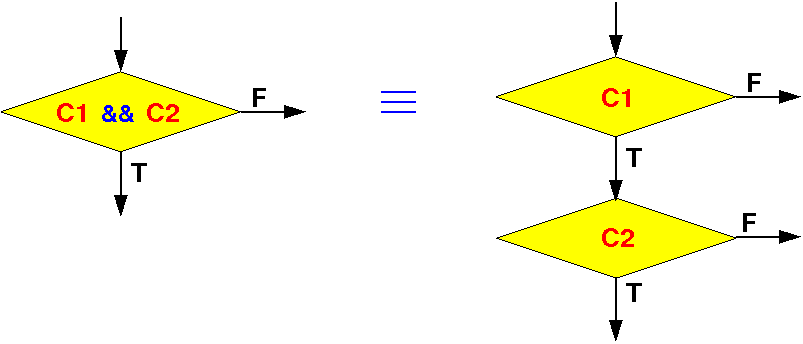

Flow chart of the AND condition using short-circuit boolean evaluation


The short circuit boolean evaluation will result in the following flow chart:





If condition C1 ≡ false, then C1 && C2 ≡ false and the program can proceed to the ELSE part

But if condition C1 ≡ true, then C1 && C2 will depend on the outcome of C2.

Program flow of a compound && condition

   if ( cond1 && cond2 )   ----->        |
      statement1(s);                     V
   else				   +--------------+ FALSE
      statement2(s);		   |  eval cond1  |-----------------+
			           +--------------+	            |
				         | TRUE		            |
					 V                          |
                                   +--------------+ FALSE           |
			           |  eval cond2  |------------+    |
			           +--------------+            |    |
			                 | TRUE  	       |    |
					 V 	               |    |
				     statement1(s) (then)      |    |
				         |                     |    |
			       +<--------+                     |    |
			       |     (else)                    |    |
			       |     statement2(s) <-----------+----+
			       |	 |
			       +-------->+
				         |
	                                 V

Programming example with compound && condition


Example && condition:

   int x, y, a;

   if (a <= x && x <= b)
      x = x + 1;
   else
      x = x - 1;


As before, I will omit discussing the variable definitions !

(I showed you the variable definitions to give you their data type information !)

Programming example with compound && condition

   if (a <= x && x <= b)
      x = x + 1;
   else
      x = x - 1;

The corresponding flow chart is:

Programming example with compound && condition

        .text
main:
        // Test if (a <= x )
        movw    r0, #:lower16:a
        movt    r0, #:upper16:a         // r0 = addr(a)
        ldr     r0, [r0]                // r0 = a

        movw    r1, #:lower16:x
        movt    r1, #:upper16:x         // r1 = addr(x)
        ldr     r1, [r1]                // r1 = x

        cmp     r0, r1                  // a <= x ?
        bgt     else                    // Branch to "else" if  a > x

        // test if ( x <= b )
        movw    r0, #:lower16:x
        movt    r0, #:upper16:x         // r0 = addr(x)
        ldr     r0, [r0]                // r0 = x

        movw    r1, #:lower16:b
        movt    r1, #:upper16:b         // r1 = addr(b)
        ldr     r1, [r1]                // r1 = b

        cmp     r0, r1                  // x <= b ?
        bgt     else                    // Branch to "else" if  x > b

then:
        // x = x + 1
        movw    r0, #:lower16:x
        movt    r0, #:upper16:x         // r0 = addr(x)

        ldr     r1, [r0]                // r1 = x
        add     r1, r1, #1              // r1 = x+1
        str     r1, [r0]                // x = x+1

        b       ifEnd                   // ** SKIP over the else part !!! ***

else:
        // x = x - 1
        movw    r0, #:lower16:x
        movt    r0, #:upper16:x         // r0 = addr(x)

        ldr     r1, [r0]                // r1 = x
        sub     r1, r1, #1              // r1 = x-1
        str     r1, [r0]                // x = x-1

ifEnd:

/* --------------------------------------------------
   Begin of the permanent program variables
   -------------------------------------------------- */
        .data
x:      .4byte  15        // Try x outside    10 ... 20
a:      .4byte  10
b:      .4byte  20

        .end

DEMO:   /home/cs255001/demo/asm/6-if/if-and.s
