- Recall:
- Reference data type:
dataType* varName ;define a variable varName that can hold an address of a variable of type dataType (See: click here )
- Reference data type:
- Recall:
- Structure (record) definition:
struct StructName { dataType1 varName1 ; dataType2 varName2 ; ... }define a data type with the name struct StructName that has the fields (components) varName1 of the data type dataType1, varName2 of the data type dataType2, ... (See: click here )
- Structure (record) definition:
- Address of a struct
typed variable:
- Consider these 2
struct BankAccount variables:
Observe that:
- The variable a is located at address 5000 in memory.
- The variable b is located at address 5012
- Consider these 2
struct BankAccount variables:
- Reference (pointer) variable to
a struct BankAccount variable:
- Reference variable to a struct BankAccount variable = a variable that can contain an address of a struct BankAccount variable
- Syntax to define
a reference (pointer) variable
to a struct datatype:
struct StructName *varName ;
Meaning:
- defines a variable named varName that can store an address of a variable of the type struct StructName.
- How to
use
reference (pointer) veriables
to
struct typed variables:
- I will explain how to use reference (pointer) veriables to struct typed variables with an analogy - comparing its usage with how it was used in simple (int, double, etc) variables
- Recall the reference operator:
- Reference operator &
int a; &a is the address of the int variable a
Analogously: (when applied to a struct) struct BankAccount b; &b is the address of the struct BankAccount b
- Reference operator &
- Recall the dereference operator:
- Dereference operator
*:
int a; int *p = &a; *p is an alias for the variable a
Analogously: (when applied to a struct) struct BankAccount b; struct BankAccount *p = &b; *p is an alias for the variable b
- Dereference operator
*:
- How to use
reference variables to
struct typed variables:
- Make a struct reference
variable point (reference) to a
struct typed variable:
struct StructName *p ; // reference variable to a struct typed variable struct StructName a ; // A struct typed variable ... p = &a; // Make p point to the struct typed variable a

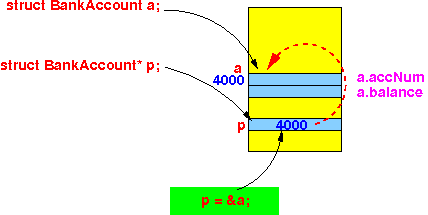

Illustrated (using the BankAccount structure):
- Accessing component variables inside
a struct using
a reference typed variable:
struct StructName *p ; // reference variable to a struct typed variable struct StructName a ; // A struct typed variable ... p = &a; // Make p point to the struct typed variable a // *p is now an alias for a !!!
a.accNum access the accNum component in a (*p).accNum access the accNum component through pIllustrated (using the BankAccount structure)
- Make a struct reference
variable point (reference) to a
struct typed variable:
- Syntax note:
- Fact:
- The
. (member selection)
operator
has a
higher priority
than the * (dereference)
operator !!
See: click here
- The
. (member selection)
operator
has a
higher priority
than the * (dereference)
operator !!
- Therefore:
*p.accNum means: *(p.accNum) Which is in error, because * is applied to "p.accNum" (The variable accNum is NOT a pointer variable !!!) * should be applied to p !!!That's why we must use this syntax:
(*p).accNum
so that the * (dereference) operator is applied to p !
- Fact:
- Example program:
struct BankAccount { int accNum; double balance; }; int main(int argc, char *argv[]) { struct BankAccount a, b; a.accNum = 123; a.balance = 1000.0; b.accNum = 444; b.balance = 3000.0; struct BankAccount *p; // Define a ref. var. to a struct p = &a; // Make p point to a printf("After p = &a\n"); printf("(*p).accNum = %d (*p).balance = %f\n", (*p).accNum, // = (*p) is a, so (*p).accNum is a.accNum (*p).balance); // = (*p) is a, so (*p).balance is a.balance p = &b; // Make p point to b printf("After p = &b\n"); printf("(*p).accNum = %d (*p).balance = %f\n", (*p).accNum, // = (*p) is b, so (*p).accNum is b.accNum (*p).balance); // = (*p) is b, so (*p).balance is b.balance }
- Example Program:
(Demo above code)
- Prog file: click here
How to run the program:
- Right click on link and
save in a scratch directory
- To compile: gcc struct-ref1.c
- To run: ./a.out
- The -> operator:
- The expression
p->varName // p must be defined as: struct StructName* p ;is a short hand for:
(*p).varName

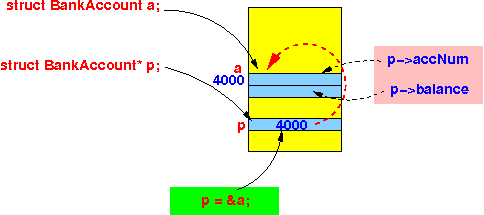

Illustrated (using the BankAccount struct):

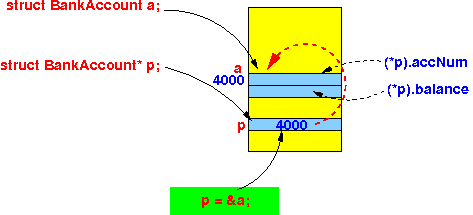

- The original syntax to
access member variables in
a struct
through a pointer variable:
- p points to a struct variable
- Then: *p is a struct variable
- Therefore: (*p).varName selects a member variable inside a struct variable
- The new syntax to access
member variables
in a struct
through a
pointer variable:

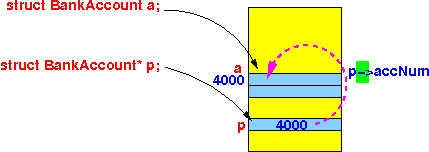

You can visualize the -> operator as an arrow from the pointer variable to a member variable inside the struct:
- The expression
- Example program:
struct BankAccount { int accNum; double balance; }; int main(int argc, char *argv[]) { struct BankAccount a, b; a.accNum = 123; a.balance = 1000.0; b.accNum = 444; b.balance = 3000.0; struct BankAccount *p; p = &a; // Make p point to a printf("After p = &a\n"); printf("p->accNum = %d p->balance = %f\n", p->accNum, p->balance); // p->accNum is short hand for (*p).accNum p = &b; // Make p point to b printf("After p = &b\n"); printf("p->accNum = %d p->balance = %f\n", p->accNum, p->balance); }
- Example Program:
(Demo above code)
- Prog file: click here
How to run the program:
- Right click on link and
save in a scratch directory
- To compile: gcc struct-ref2.c
- To run: ./a.out
- Why is it called a short hand:
- The expression
(*p).accNum
contains 2 operations:
- * (de-reference operator)
- . (the member selection operator)
- In contrast, the
expression:
p->accNum
contains only 1 operation:
- -> (de-reference plus member selection operator)
- The expression
