Implicit function prototyping and declaring a function in C

Function "prototype"

Review : function prototype

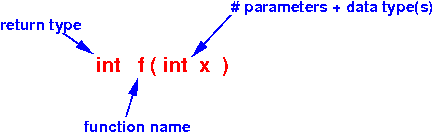

The function prototype specifies:
Example:

Review: variable declaration

Previously, we have seen that a variable must be declared (or defined) before it is used (see: click here)

extern int x; // Declare x int main( int argc, char *argv[] ) { printf("x = %d\n", x); } int x = 4; /* Definition of global var x */

$64,000 question:

Will this rule apply for functions ???
I.e.:

Answer:

No !!!
For some strange reason, Kernighan and Richie (designers of C) made their original C compiler assume a default function type if the function is not defined
(I read long ago that Kernighan and Ritchie designed C to write the UNIX operating system and the functions in this operating system mainly have int typed parameters and returned int typed return values
So they made the C compiler assume int typed parameters and return value to expediate the program development of UNIX...)

This practice of making the C compiler assume about the data types of parameters of an undefined function has been preserved in the C programming language (maybe to accomodate older C programs)

The implicit function prototyping mechanism defined in the C99 standard

The C99 standard ( click here) specifies the following default argument (= parameter) promotion rule:

If the expression that denotes the called function has a type that does not include a (function) prototype, the integer promotions are performed on each argument, and arguments that have type float are promoted to double.
These are called the default argument promotions.
(See page 71 in the C99 standard)

Let me rephrase this rule to make it easier to understand:

When a function is used before the function is defined or declared, the C compiler will use the data type(s) of the parameters of the function to construct the function prototype.

The C compiler will make the following assumptions about the data type(s) about a parameter type when the function is not defined or declared before it is used:

data type of the passed variable | C compiler assume this parameter type -----------------------------------+---------------------------------------- (unsigned) char, short, int | int float, double | double

The return data type of an undefined or undeclared function is (always) assumed to be int

Example:

Suppose you write the following function call:

short x; int y; float z; .... = f( x, y , z ) ;

When the C compiler processes the function call f( x, y, z ), the C compiler will assume that the function prototype for f( ) is:

int f ( int x, int y, double z ) { ... }

Example C program to show the default parameter promotion mechanism in C

Let's start with a correctly written C program:

#include <stdio.h> /* --------------------------------------------------- Function f( ) is defined before main's use of f( ) --------------------------------------------------- */ int f(int x) { return(x*x); } int main(int argc, char *argv[]) { short x = 2; // *** Short !! int y = 0; y = f(x); // Compiler needs to convert short x --> int and pass to func printf("x = %d, y = %d\n", x, y); }

The function f( ) is defined before it was used

Therefore:

The C compiler knows the data types of the parameters when it processes the function call f(x).
Because the C compiler knows exactly what type of data it need to pass to the function f( ), the C compiler can (and will) convert the data if necessary !!!

This program will compile without any error or warnings

Example Program: (Demo above code)
- Prog file: /home/cs255001/demo/C/set1/impl-declare1.c
How to run the program:

Now consider the following C program where we define the function f( ) after its use in main( ):

#include <stdio.h> int main(int argc, char *argv[]) { short x = 2; // *** Short !! int y = 0; y = f(x); // C compiler will assume: int f(int x) !!! // Compiler will convert short x --> int and pass to func !! printf("x = %d, y = %d\n", x, y); } /* --------------------------------------------------- Function f( ) is defined AFTER main's use of f( ) --------------------------------------------------- */ int f(int x) { return(x*x); }

The function f( ) is defined after it was used !!!

Therefore:

When the C compiler processes the function call f(x), the C compiler does not know how to pass the parameters !!!
(The C compiler has no information on the function f( )
At this moment, the compiler for most programming languages will signal an error, but C behaves differently)
Instead of stopping, the C compiler will make this assumption for the function f( ):
prints a warning and continues the translation !!!

Here's the compiler's message:

cs255-1@aruba (4837)> gcc impl-declare2.c impl-declare2.c: In function 'main': impl-declare2.c:9:8: warning: implicit declaration of function 'f' [-Wimplicit-function-declaration] y = f(x); // **** Call f( ) **** ^

The compiler issues a warning but there is no (fatal) error !!!

The compilation is successful !! (You can run the program !!!)

The program will run correctly:

cs255-1@aruba (4840)> a.out x = 2, y = 4

Example Program: (Demo above code)
- Prog file: /home/cs255001/demo/C/set1/impl-declare2.c
How to run the program:

Explanation:

When the C compiler reaches this line in the program during the translation process:

int main(int argc, char *argv[]) { short x = 2; // **** short int y = 0; y = f(x); // **** Call f( ) **** <------- Compiler reaches here printf("x = %d, y = %d\n", x, y); } /* --------------------------------------------------- Function f( ) is defined AFTER main's use of f( ) --------------------------------------------------- */ int f(int x) { return(x*x); }

the C compiler did not find the function definition or declaration yet.

Therefore, the C compiler will perform the default argument promotion

Because the input parameter x is a short, the C compiler will make the following assumption:

int f( int x )

will convert short x to an int represention before passing the parameter.

Also, the C compiler will:

Print a warning message that it has made an implicit function declaration (= an assumption)
This warning will help the programmer debug his/her program in case the execution goes wrong (it can happen in multi-file C programs)

The C compiler will continue with the program translation

When the C compiler reaches this line in the program during the translation process:

int main(int argc, char *argv[]) { short x = 2; // **** short int y = 0; y = f(x); // **** Call f( ) **** printf("x = %d, y = %d\n", x, y); } /* --------------------------------------------------- Function f( ) is defined AFTER main's use of f( ) --------------------------------------------------- */ int f(int x) <------- Compiler reaches here { return(x*x); }

The C compiler will verify if the assumption was correct

It was correct in this case

(If the C compiler fails to verify the assumption, it will print an error and abort !!!)

An example where the default type assumption mismatches with a later function definition

To show you that the C compiler will abort when the default parameter type assumption's verification fails, consider this C program where the definition of f( ) is changed:

#include <stdio.h> int main(int argc, char *argv[]) { short x = 2; // *** short !!! int y = 0; y = f(x); // Assumes: int f(int x) printf("x = %d, y = %d\n", x, y); } /* --------------------------------------------------- Function f( ) is defined AFTER main's use of f( ) --------------------------------------------------- */ int f(short x) { return(x*x); }

The compiler error message is:

cs255-1@aruba (4845)> gcc impl-declare3.c impl-declare3.c: In function 'main': impl-declare3.c:9:8: warning: implicit declaration of function 'f' [-Wimplicit-function-declaration] y = f(x); // C compiler will assume: int f(int x) ^ impl-declare3.c: At top level: impl-declare3.c:24:5: error: conflicting types for 'f' int f( short x ) ^ impl-declare3.c:25:1: note: an argument type that has a default promotion can't match an empty parameter name list declaration { ^ impl-declare3.c:9:8: note: previous implicit declaration of 'f' was here y = f(x); // C compiler will assume: int f(int x) ^

Explanation:

Because the C compiler had assumed that the function f( ) is:
when the C compiler processes the actual function definition for function f( ):
the C compiler discovers a conflicting type information
When this happens, the C compiler will print the error and abort !!!!

Example Program: (Demo above code)
- Prog file: /home/cs255001/demo/C/set1/impl-declare3.c
How to run the program:

Good C programming practice
- Common sense rule:
  We discuss how to declare a function next....
