Review:   multiple files C program

A C program can consist of multiple program files:




Recall:

  • Global variables and functions can be access (= used) in all C program files

Structure of the C compiler

  • The C compiler consists of 2 separate applications:

    1. A syntax analyser and machine code generator program

      • Check for syntax errors

      • Translates a correct C program into machine codes (= C object file)

    2. A linker ("linking loader") program:

      • Combines the machine code from multiple C object files into an executable program

        The main task performed by the linking loader is to find/locate the global variables and functions and update the address place holders with the correct reference (= memory address)

        (Take a "Compiler" course if you want to know the details....)

The process of compiling a C program that consists of multiple files

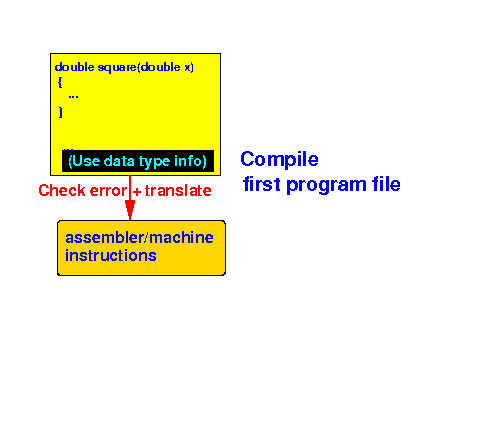

(1a) Compile each C program file separately:

Note: the C compile uses the data type information in C program file 1 to perform the translation

The process of compiling a C program that consists of multiple files

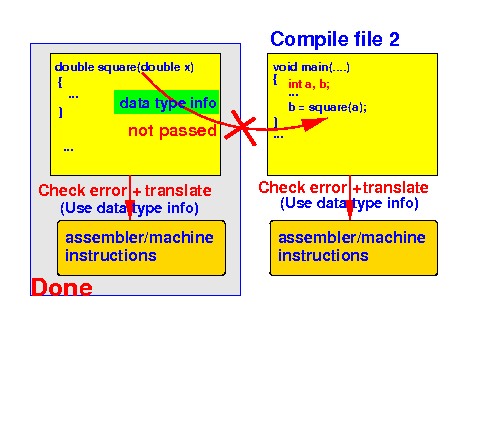

(1b) Compile each C program file separately:

Important fact:   the data type information in C program file 1 is not used in the compilation

The process of compiling a C program that consists of multiple files

(1c) Notice that the C compiler requires the data type information to translate correctly:

Recall:   C programs use declarations to inform the C compiler the data type information

The process of compiling a C program that consists of multiple files

(2) The compiled programs are linked (= combined) into one executable program

The linking process resolves (= locates) the global variable and function names used in all program files
