- To view the
values in
array variables:
- Click on the
Array tab:

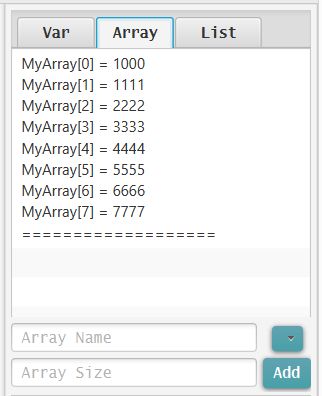

In this example, EGTAPI is displaying the values in the array MyArray --- this array has 8 elements
- Click on the
Array tab:
- When you do CS255 homeworks, the
professor will have provided
a start up file to
display the
necessary information of the
program and you do
not need to
add more
array displays
However, if you want to experiment with EGTAPI (to learn more about assembler programming), the next section discusses what I did to display the MyArray variable.
- To display the
value in an array variable that is
defined by
ds or
dc:
- Click on the
Array tab:

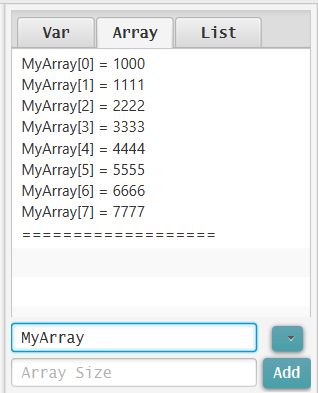

- Type the
the label of the
array
(must be .global-ed) in the
box:
- Select
how
the value in the
array elements must be
displayed
(i.e.: specify the
data type of the
variable):

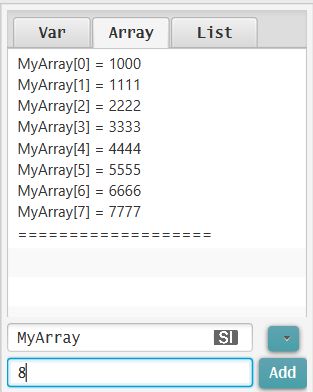

Enter the size of the array in the Array Size field:
And click on the Add button
(That's what I did to display the MyArray[ ] array variable that you see in the above example)
- Click on the
Array tab:
