- Question:
- What is the running time of the get(k) operation on a Skip List ???
- In other words:
- How many entries in the skip list will the get(k) operation examine ?
- Related problems:
- The running time for the
get(k) method will
also
determine the
running times
for
put(k,v) and
remove(k)
- Because:
- the put(k,v) and
the remove(k)
operation needs to find the
entry first
before they can perform the
corrresponding operation
(Once you have located the entry, the put(k,v) and the remove(k) will take O(1) number of operations to complete....)
- the put(k,v) and
the remove(k)
operation needs to find the
entry first
before they can perform the
corrresponding operation
- The running time for the
get(k) method will
also
determine the
running times
for
put(k,v) and
remove(k)
- Consider the search operation
in a skip list:
- Main loop in the search algorithm:
public HashEntry findEntry(String k) { HashEntry p; /* ----------------- Start at "head" ----------------- */ p = head; /* ========================================= Main search loop ========================================= */ while ( true ) { /* -------------------------------------------- Search RIGHT until you find a LARGER entry -------------------------------------------- */ while ( (p.right.key) != HashEntry.posInf && (p.right.key).compareTo(k) <= 0 ) { p = p.right; } /* --------------------------------- Go down one level if you can... --------------------------------- */ if ( p.down != null ) { p = p.down; } else break; // We reached the LOWEST level... Exit... } return(p); // Nearest p (<= k) }

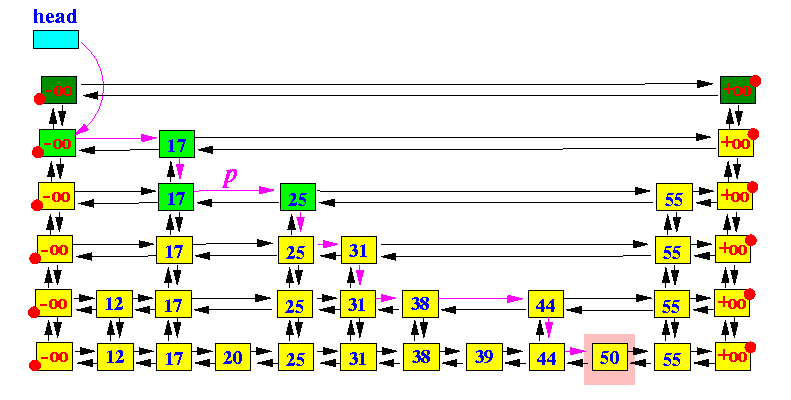

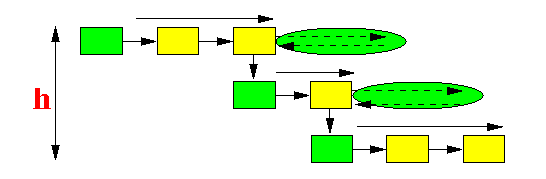

- Scanning motion through a skip list:
- Number of entries visited:
Prelimary result of the run time of the get(k) operation:
# entries visited = # entries visited in level h-1 + # entries visited in level h-2 + .... + # entries visited in level 0
# entries visited = 1 + # right traversals on level h-1 + 1 + # right traversals on level h-2 + .... + 1 + # right traversals on level 0
# entries visited = h + # right traversals on level h-1 + # right traversals on level h-2 + ... + # right traversals on level 0
run time get(k) ~= h + h × ( avg # right traversals on one level )So the average running time of the get(k) operation is apprimately equal to:
Avg run time get(k) ~= Avg(h) + Avg(h) × ( avg # right traversals on one level ) ....... (1)
- There are 2 unknowns that
we need to figure out:
- The average height (Avg(h)) of
a Skip List
- The average # of right traversals on one level made by a search operation.
- The average height (Avg(h)) of
a Skip List
- Recall how we compute
an average cost
using frequencies:
Case Frequency Cost -------+-------------+-------- 1 f1 C1 2 f2 C2 .... n fn CnThe average cost is equal to:
Avg Cost = f1×C1 + f2×C2 + .... + fn×Cn
- Recall also that:
- The (relative) frequency is approximately equal to the probability.
- Fact:
- The height of
a skip list
is random
- We can only talk about the
average height
of a skip list
- Or:
- how likely (probability) that a skip list has height h....
- The height of
a skip list
is random

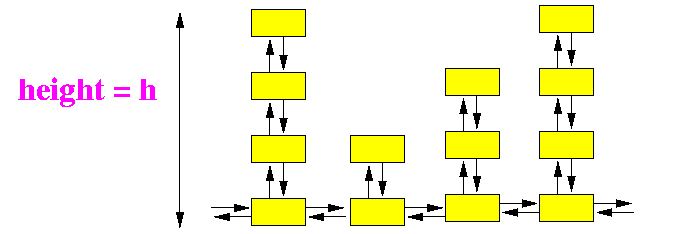

- Height of a skip list - part 1:
- The height of a skip list is
the height of the highest tower:
- What determines the height of a tower:
- The height of a tower is determined by the number of consecutive successful tosses (using a fair (50% success) coin)
- The height of a skip list is
the height of the highest tower:

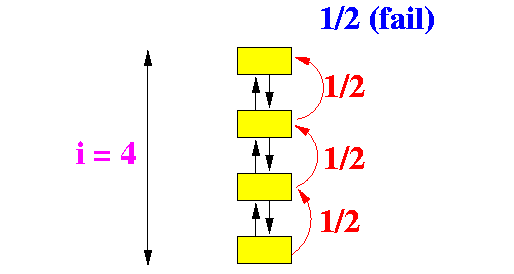

- Height of one tower:
- Probability that the height of a tower = i:
Note:
1 Ҏ[ height = i ] = --- 2i
- Probability that the height of a tower = i:
- Height of a skip list - part 2:
- Height of a skip list:
Notes:
Skip list has height h = (height of tower 1 = h) OR (height of tower 2 = h) OR (height of tower 3 = h) ... OR (height of tower n = h)
- Probability that a skip list has
height h:
Ҏ[ Skip list has height h ] = Ҏ[ (height of tower 1 = h) OR (height of tower 2 = h) OR (height of tower 3 = h) ... OR (height of tower n = h) ] ~= Ҏ[ (height of tower 1 = h) ] + Ҏ[ (height of tower 2 = h) ] + Ҏ[ (height of tower 3 = h) ] ... + Ҏ[ (height of tower n = h) ] 1 1 1 = --- + --- + .... + --- 2h 2h 2h n = --- 2h
- Height of a skip list:
- Computing the average height
of a skip list
using
the "frequency weighting method"
(f1*c1 + f2*c2 + ...) is
very difficult
Goodrich resorts to an approximation....
by looking for:
- What is the height with the greatest probability....
- The likelihood (chance) of having a skip list
of
height
equal to 3log(n) is
approximately:
n Ҏ[ Skip list has height 3log(n) ] = --- 23log(n) n = --- 2log(n3) n = --- n3 1 = --- n2
Example: n = 1000 1 Ҏ[ Skip list of 1000 elements has height 3log(1000) ] = ------- = 0.000001 10002
- The likelihood (chance) of having a skip list
of
height
equal to 2*log(n) is
approximately:
n Ҏ[ Skip list has height 2log(n) ] = --- 22log(n) n = --- 2log(n2) n = --- n2 1 = --- n
Example: n = 1000 1 Ҏ[ Skip list of 1000 elements has height 2log(1000) ] = ------- = 0.001 1000
- The likelihood (chance) of having a skip list
of
height
equal to log(n) is
approximately:
n Ҏ[ Skip list has height log(n) ] = --- 2log(n) n = --- n = 1That's huge for a probability (it's approximately "certain") !!!
- Without going into mathematical details,
the above computations argues that:
- The average height
(or expected height) of
a skip list
with
n entries
is:
Avg(h) of a Skip list with n entries = log(n)
One down, one more to go !!!.
- The average height
(or expected height) of
a skip list
with
n entries
is:

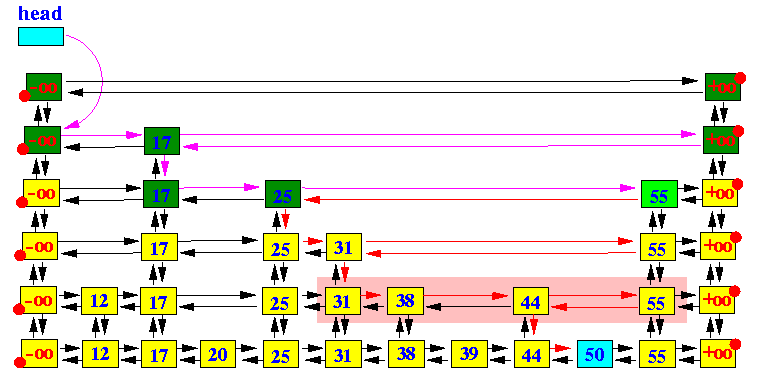

- Important fact:
- All the keys after the first key scanned in layer i belong to towers of height i
Example:
Note:
- After scanning key 31, the other keys scanned (38, 44) belong to a tower of height 2

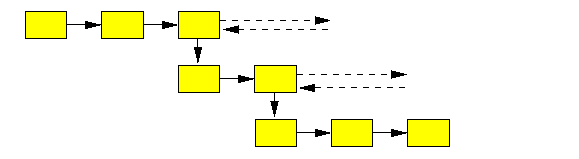

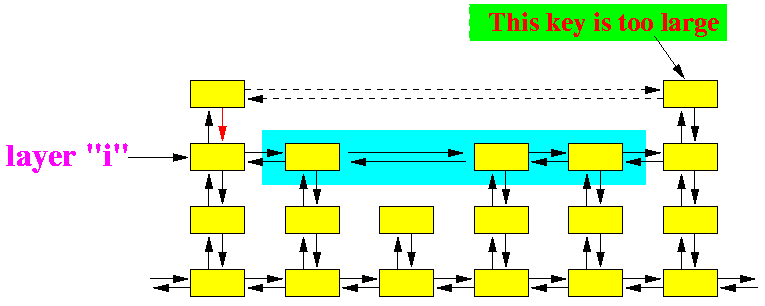

- Situation in layer i:
Conclussion:
- The number of right-directional traversals in layer i ≤ number of consecutive towers of height i
- $64,000 question:

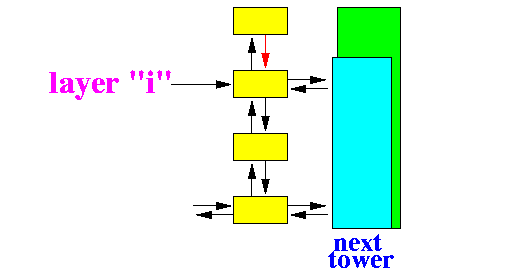

How likely is the next tower that you visit has height = i
- It is important to note that
there are only 2 kinds of
"towers" in layer i:
- Columns that have height = i
- Columns that have height > i
So only towers of height ≥ i are in layer i.
- Columns that have height = i
- Note:
- For those that are
familiar with
in probability theory,
we are using the conditional probability:
- we are given the fact that height ≥ i
(I am trying to explain this stuff without requiring the knowledge of conditional probability)
- For those that are
familiar with
in probability theory,
we are using the conditional probability:
- Question:
- When a tower
has reached the
height of i,
what makes it stop growing ?
Answer: the code that determine when to stop adding a layer is:
while ( r.nextRandom() < 0.5 ) { // code to add 1 layer }So r.nextRandom() returned a value that is ≥ 0.5
- When a tower
has reached the
height of i,
what makes the tower
grow higher than i ?
Answer: the code that determine when to stop adding a layer is:
while ( r.nextRandom() < 0.5 ) { // code to add 1 layer }So r.nextRandom() returned a value that is < 0.5
- When a tower
has reached the
height of i,
what makes it stop growing ?

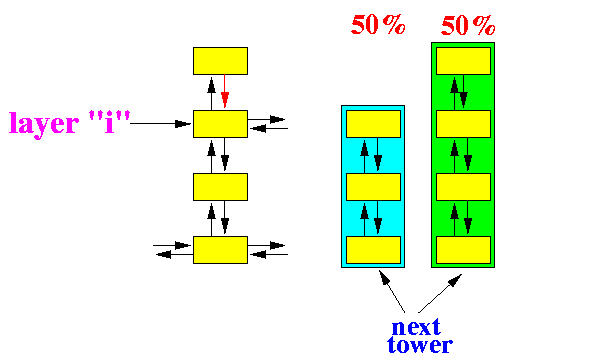

- Another question:
- What is then the probability
that the next column that you visit
inside layer i
has height i ???
Answer:
You have a 50% change to find a tower of height i as your next column
Therefore, the average number consecutive towers of height i in layer i can be computed as follows:

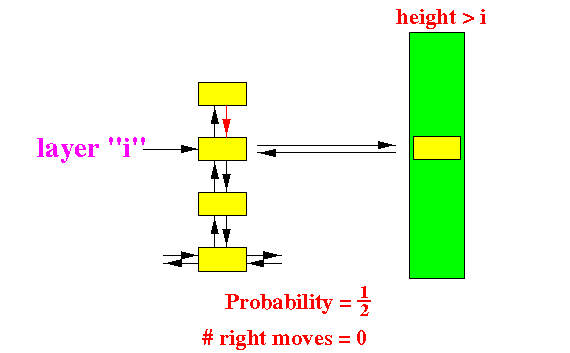

- Case 1:
0 towers of height i

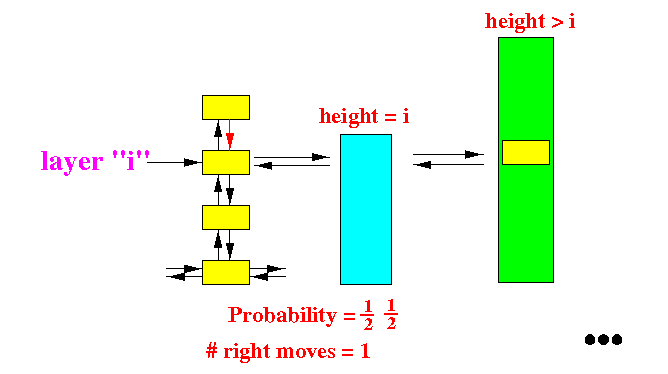

- Case 2:
1 tower of height i

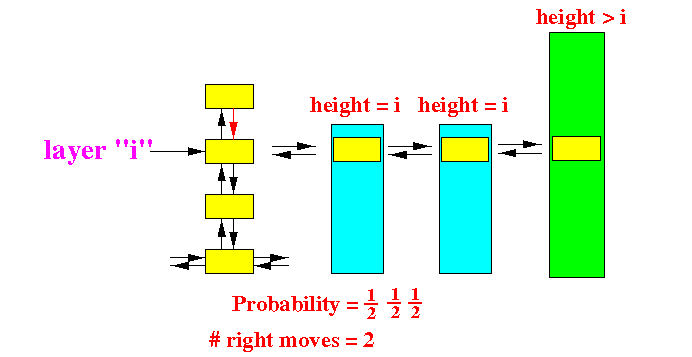

- Case 3:
2 towers of height i
And so on !!!!
- What is then the probability
that the next column that you visit
inside layer i
has height i ???
- The average number
of right (directional) moves
to search in
layer i is then:
(see the frequencies and cost in the figures above)
Avg # right moves = 0 * (0.5) + 1*(0.5)2 + 2*(0.5)3 ... = 1 ................... (2)We can use Mathematica to compute this sum:
>> math In[0]:= Sum[ (k-1)*(1/2)^k, {k,1,Infinity}] Out[0]= 1
-
Final result
- The final expression for the run time of
get(k) in a skip list of n entries:
run time get(k) ~= h + h×( # right traversals in 1 level ) ....... (1) (h ~= log(n)) ~= log(n) + log(n)×( # right traversals in 1 level ) ....... (2) (# right traversal in 1 level = # compare op in 1 level) ~= log(n) + log(n)×( 1 ) ~= 2×log(n) ........ (3)
- The final expression for the run time of
get(k) in a skip list of n entries:
-
Running time of put(k,v) and remove(k)
- The put() and
remove() method
will
finish in O(1)
after they have
located the appropriate entry
- Therefore:
- running time put(k,v) = O(log(n))
- running time remove(k) = O(log(n))
- The put() and
remove() method
will
finish in O(1)
after they have
located the appropriate entry
