- We have previously studied the LCS algorithm to
find the length of the
LCS (longest common subsequence):
public static int solveLCS(String x, String y) { int i, j; /* =============================================== Initialize the base cases =============================================== */ for (i = 0; i < x.length()+1; i++) L[i][0] = 0; // y = "" ===> LCS = 0 for (j = 0; j < y.length()+1; j++) L[0][j] = 0; // x = "" ===> LCS = 0 /* ===================================================== Bottom-up (smaller to larger) computation of L[][j] ===================================================== */ for (i = 1; i < x.length()+1; i++) { for (j = 1; j < y.length()+1; j++) { if ( x.charAt(i-1) == y.charAt(j-1) ) { L[i][j] = L[i-1][j-1] + 1; } else { L[i][j] = max( L[i-1][j] , L[i][j-1] ); } } } return L[x.length()][y.length()]; }The method will return the length of the LCS of the input strings x and y.
- Notice that this algorithm
uses a 2-dimensional array of size
m × n,
where m and n are the
number of characters in the 2 inputs strings.
- Therefore:
- The amount of computer memory (used for the variables) needed to solve the LCS problem is O(m × n).
- The memory utilization constraint can
put a several limit on the
usefulness of the LCS algorithm.
Example:
- To find the LCS in 2 strings of length 100, we need a 2-dimensional array with 100 × 100 = 10,000 elements
- To find the LCS in 2 strings of length 1,000, we need a 2-dimensional array with 1,000 × 1000 = 1,000,000 elements
- To find the LCS in 2 strings of length 10,000, we need a 2-dimensional array with 10,000 × 10000 = 100,000,000 (100M) elements
- To find the LCS in 2 strings of length 100,000, we need a 2-dimensional array with 100,000 × 100,000 = 10,000,000,000 (10G) elements
Facts:
- The LCS algorithm is
used in Bio-informatics to compare
DNA sequences
- A DNA sequence can contains
millions of "letters"
- A O(m×n)
LCS algorithm is
useless in
Bio-informatic research !!!
(Not enough memory to run the algorithm) !!!
- We must reduce the memory utilization of the LCS algorithm to be useful !!!
- In the LCS algorithm, the value
L[i][j] are computed
in the order of increasing values
in i:
public static int solveLCS(String x, String y) { int i, j; /* =============================================== Initialize the base cases =============================================== */ for (i = 0; i < x.length()+1; i++) L[i][0] = 0; // y = "" ===> LCS = 0 for (j = 0; j < y.length()+1; j++) L[0][j] = 0; // x = "" ===> LCS = 0 /* ===================================================== Bottom-up (smaller to larger) computation of L[][j] ===================================================== */ for (i = 1; i < x.length()+1; i++) // Row i { for (j = 1; j < y.length()+1; j++) { if ( x.charAt(i-1) == y.charAt(j-1) ) { L[i][j] = L[i-1][j-1] + 1; // Use values in row i-1 } else { L[i][j] = max( L[i-1][j] , L[i][j-1] ); // Use values in row i-1 } } } return L[x.length()][y.length()]; }
- Observation:
- When the values in the
row i
(i.e., value
L[i][j])
are being computed, the algorithm will
only use the
values in the row
i-1
(i.e., the values
L[i-1][j])
- What I mean is this:
- When the values in the row i (i.e., value L[i][j]) are being computed, the algorithm will not use the values in the rows prior to row i-1 (i.e., the values L[i-2][j], L[i-3][j], ...)

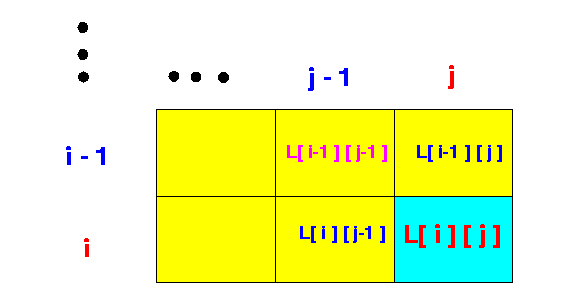

- Graphically illustrated:
To compute L[i][j], we will use:
L[ i−1 ][ j−1 ] or: max ( L[ i−1 ][ j ] , L[ i ][ j−1 ] )
- When the values in the
row i
(i.e., value
L[i][j])
are being computed, the algorithm will
only use the
values in the row
i-1
(i.e., the values
L[i-1][j])
- Conclusion:
- We do not need to
preserve the prior rows
to compute the next row
- We only need to
preserve the last computed row !!!
- Therefore:
- We can recylce (re-use) the
rows of the array !!!
- We will use:
- An array K
that consist of 2 rows
- Row 0 of array
K
will represent the values in the
last computed row
(i.e.:
L[ i-1 ] [j]
- Row 1 of array K will be used to hold the newly computed values (i.e.: L[ i ] [j]
- An array K
that consist of 2 rows

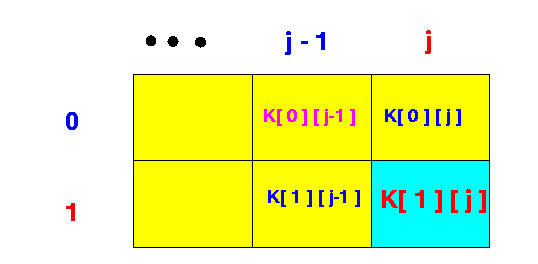

Graphically explained:
- We can recylce (re-use) the
rows of the array !!!
- We do not need to
preserve the prior rows
to compute the next row
- A problem in the original algorithm:
public static int solveLCS(String x, String y) { int i, j; /* =============================================== Initialize the base cases =============================================== */ for (i = 0; i < x.length()+1; i++) // ***** Problem ! ***** L[i][0] = 0; // We cannot initialize ALL rows at once ! for (j = 0; j < y.length()+1; j++) L[0][j] = 0; // x = "" ===> LCS = 0 /* ===================================================== Bottom-up (smaller to larger) computation of L[][j] ===================================================== */ for (i = 1; i < x.length()+1; i++) { for (j = 1; j < y.length()+1; j++) { if ( x.charAt(i-1) == y.charAt(j-1) ) { L[i][j] = L[i-1][j-1] + 1; } else { L[i][j] = max( L[i-1][j] , L[i][j-1] ); } } } return L[x.length()][y.length()]; }
- We must first move the
initialization step into the
second for-loop
(because we will change
the data structure !) and obtain:
public static int solveLCS(String x, String y) { int i, j; /* =============================================== Initialize the base cases =============================================== for (j = 0; j < y.length()+1; j++) L[0][j] = 0; // x = "" ===> LCS = 0 /* ===================================================== Bottom-up (smaller to larger) computation of L[][j] ===================================================== */ for (i = 1; i < x.length()+1; i++) { L[i][0] = 0; // <<<--- moved HERE first ****** // Because we can't initialize ALL row at once // The 0-th element in row i is now // initialized when row i is USED for (j = 1; j < y.length()+1; j++) { if ( x.charAt(i-1) == y.charAt(j-1) ) { L[i][j] = L[i-1][j-1] + 1; } else { L[i][j] = max( L[i-1][j] , L[i][j-1] ); } } } return L[x.length()][y.length()]; }
- Next we replace:
L[ i-1 ] [j] -----> K[ 0 ] [j] L[ i ] [j] -----> K[ 1 ] [j] L[ i ] [j-1] -----> K[ 1 ] [j-1]in the above modified algorithm, we will obtain a linear space algorithm for the LCS problem:
public static int solveLCS(String x, String y) { int i, j; /* =============================================== Initialize the base cases =============================================== for (j = 0; j < y.length()+1; j++) K[0][j] = 0; // x = "" ===> LCS = 0 for (i = 1; i < x.length()+1; i++) { K[1][0] = 0; // Piecemeal initialization of L[i][0] for (j = 1; j < y.length()+1; j++) { if ( x.charAt(i-1) == y.charAt(j-1) ) { K[1][j] = K[0][j-1] + 1; } else { K[1][j] = max( K[0][j] , K[1][j-1] ); } } /* ===================================================== Recycle phase: copy row K[1][...] to row K[0][...] ===================================================== */ for ( j = 0; j < y.length()+1; j++) K[0][j] = K[1][j]; } // The value of LCS is in K[1][y.length()] return K[1][y.length()]; }
- Example Program:
(Demo above code)
- Prog file: click here
How to run the program:
- Right click on link and
save in a scratch directory
- To compile: javac LCS_lin_space.java
- To run: java LCS_lin_space
- Note: why is the algorithm
linear space ?
- The algorithm uses a
2-dimensional array K[ ][ ]
of size 2×n, where
n is the
length of the second string.
- Because 2×n is
O(n), the number of variables
used in the algorithm increases
linearly with the
size of the input.
- That's why the algorithm is linear space.
(The previous algorithm uses a 2-dimensional array L[ ][ ] of size m×n, where m and n is the length of the first and the second string.)
- Because 2×n is
O(n), the number of variables
used in the algorithm increases
linearly with the
size of the input.
- The algorithm uses a
2-dimensional array K[ ][ ]
of size 2×n, where
n is the
length of the second string.
