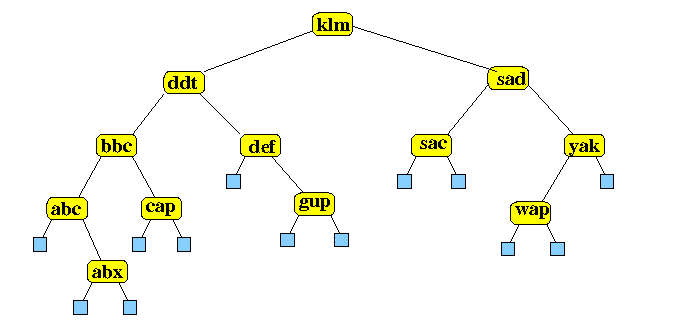

- Consider the following AVL tree:
- Questions:
- Give the binary search tree
after the insert operation
put("www")
before
rebalancing the AVL tree
- In your answer, lable the nodes
x,
y and
z
that will be used
in the tri-node restructure operation.
The node x is the first unbalance node, node y is a child node of x and node z is a child node of y.
- Show the AVL tree after the rebalancing operation:
- Give the binary search tree
after the insert operation
put("www")
before
rebalancing the AVL tree
- Consider the same AVL tree:
- Questions:
- Give the binary search tree
after the insert operation
put("abm")
before
rebalancing the AVL tree
Mark in your answer the nodes x, y and z used in the rebalance operation.
The node x is the first unbalance node, node y is a child node of x and node z is a child node of y.
- Show the AVL tree after the rebalancing operation
- Give the binary search tree
after the insert operation
put("abm")
before
rebalancing the AVL tree
- Consider the same AVL tree:
- Questions:
- Give the binary search tree
after the insert operation
remove("cap")
before
rebalancing the AVL tree
Mark in your answer the nodes x, y and z used in each of the rebalance operation(s).
The node x is the first unbalance node, node y is a child node of x and node z is a child node of y.
- Show the AVL tree after each rebalancing operation
- Give the binary search tree
after the insert operation
remove("cap")
before
rebalancing the AVL tree
- Consider the same AVL tree:
- Questions:
- Give the binary search tree
after the insert operation
remove("sac")
before
rebalancing the AVL tree
Mark in your answer the nodes x, y and z used in each of the rebalance operation(s).
The node x is the first unbalance node, node y is a child node of x and node z is a child node of y.
- Show the AVL tree after each rebalancing operation
- Give the binary search tree
after the insert operation
remove("sac")
before
rebalancing the AVL tree
- I will use 4 examples to help you figure out what to do
to find the successor of a node in a BST.
- Find the path from the node
klm
to its successor
(notice that klm has a non-empty right subtree):
- Find the path from the node
sad
to its successor
(notice that klm has a non-empty right subtree):
- Find the path from the node
cap
to its successor
(notice that cap
does not has a right subtree):
- Find the path from the node
sac
to its successor
(notice that sac
does not has a right subtree):
Can you figure out what to do to find the successor node for a node p ???
You will now write an algorithm to do this.
- Download the program files given below and
write the
succ(BSTEntry p)
method in Java that
returns the successor node of p.
The succ(BSTEntry p)
will return null if p does not have
a successor.
- BSTEntry.java: right click and save in your cs323 project dir
- BST.java: right click and save in your cs323 project dir
- TestBST.java: right click and save in your cs323 project dir
Turn question 5 in using this command:
/home/cs323000/turnin BST.java pj3
