- Fortran has
built-in support
for
array manipulation
in support of
Scientific Computing needs
- Some common operations
in
Numerical Linear Algebra are:
- matrix * vector
- vector * matrix
- matrix * vector
- To compute
matrix * vector
or
vector * matrix ,
we must multiple:
- A slice of a matrix with a vector
Example:
- To implement these operations, we must be able to
select slices
in a
matrix
- F90 has a number of specialized array selection methods (array "sub-objects") that will be discussed next....
- A
subset
of the elements in a
one-dimensional array
can be selected using one of these techniques:
- Explicit indices
Example:
REAL, DIMENSION(5) :: A A((/1, 3, 5/)) // Elements selected: A(1), A(3), A(5)
- Implicit DO loop
Example:
REAL, DIMENSION(5) :: A A(1:3) // Elements selected: A(1), A(2), A(3) A(1:5:2) // Elements selected: A(1), A(3), A(5) A(:) // Elements selected: A(1), A(2), A(3), A(4), A(5)
- Array as index
Example:
REAL, DIMENSION(5) :: A INTEGER, DIMENSION(3) :: K = (/ 1, 3, 5 /) A(K) // Elements selected: A(1), A(3), A(5)
- Explicit indices
- Example Program:
(Demo above code)
- Prog file: click here
- You can use any of the
above methods
in
each dimension
in a multi-dimentional array
- Examples: selecting a slice
in a matrix
REAL, DIMENSION(5,5) :: A INTEGER, DIMENSION(3) :: K = (/ 1, 3 /) A(2, (/1, 3, 5/)) --> A(2,1) A(2,3) A(2,5) A(2, 1:3) --> A(2,1) A(2,2) A(2,3) A(2, 1:3:2) --> A(2,1) A(2,3) A(2,5) A(2, :) --> A(2,1) A(2,2) A(2,3) A(2,4) A(2,5) A(2, K) --> A(2,1) A(2,3)
- Examples: selecting a
blocks
in a matrix
REAL, DIMENSION(5,5) :: A INTEGER, DIMENSION(3) :: K = (/ 1, 3 /) A((/1,3/), (/1,3/)) --> A(1,1) A(1,3) (2-dim. array !!!) A(3,1) A(3,3) A((/1,3/), 1:3) --> A(1,1) A(1,2) A(1,3) A(3,1) A(3,2) A(3,3)
- The matrix-vector multiplication consists
of a number of
- array multiplications , and
- summarion of array elements
- Consider the Matrix-vector multiplication:
The first element in the result vector (w(1)) is obtained by:
1. multiply first row of matrix and the input vector: A(1, :) * v 2. sum all elements of the result of the first step: SUM ( A(1, :) * v )
- Using F90
slice selection techniques ,
we can write the Matrix-vector multiplication
as:
INTEGER N = ... REAL, DIMENSION(N,N) :: A INTEGER, DIMENSION(N) :: v, w w(1) = SUM ( A(1, : ) * v ) w(2) = SUM ( A(2, : ) * v ) .. w(N) = SUM ( A(N, : ) * v ) or: DO i = 1, N w(i) = SUM ( A(i, : ) * v ) END DO
- Example Program:
(Demo above code)
- Prog file: click here
- There is a
better way
to implement the
Matrix-vector multiplication
Consider the following example:

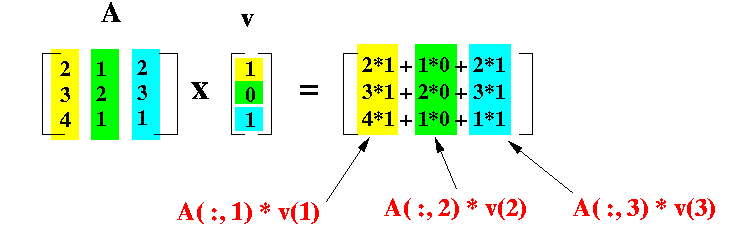

We can see that the Matrix-vector multiplication can be computed as:
w = A(:,1)*v(1) + A(:,2)*v(2) + A(:,3)*v(3)
- The following DO-loop will perform
a Matrix-vector multiplication:
real, dimension(3,3) :: A real, dimension(3) :: v real, dimension(3) :: w integer :: i integer :: N N = size(v) w = 0.0 !! clear whole vector DO i = 1, N w = w + A( :, i ) * v(i) END DO
- When running on
multi-processor computers
(computers with multiple CPUs),
the
Fortran compiler
can usually
parallel array operations
- The work to perform an
array operations
is distributed
among the processors
- You will achieve a significant
speed increase
using array operations whenever possible
(if you are using a multip-processor system and
a parallizing compiler).
- A number of F90
intrinsic functions
allow the programmer to
reshape arrays (matrices) :
- Transpose
- Pack
- Reshape
- Function call to transpose a matrix:
REAL, DIMENSION(3, 3) :: A, B B = TRANSPOSE(A)
- Example Program:
(Demo above code)
- Prog file: click here
- Packing an array is to
collapse
a
multi-dimensional array into a one-dimensional array
- The
PACK intrinsic function
uses a logical array
to select elements for "packing"
Example:
REAL, DIMENSION(3, 3) :: A LOGICAL, DIMENSION(3, 3) :: MASK REAL, DIMENSION(4) :: B DATA MASK / .true., .true., .false., & .false., .false., .false., & .false., .true., .true. / B = PACK(A, MASK)
Result: B(1) = A(1,1) ! MASK(1) == .true. B(2) = A(1,2) ! MASK(2) == .true. B(3) = A(3,2) ! MASK(8) == .true. B(4) = A(3,3) ! MASK(9) == .true.
- Example Program:
(Demo above code)
- Prog file: click here
- NOTE:
To select every element for packing, use:
B = PACK(A, .TRUE.)
F90 will automatically convert the logical value .true. into a conformable logical array
- Reshape:
re-distribute
the elements in
a
one-dimensional array
into a
multi-dimensional array
- The
RESHAPE
function uses a
shape array
to construct the
multi-dimensional array
- Example:
REAL, DIMENSION(10) :: A ! Source array REAL, DIMENSION(2, 5) :: B ! Destination INTEGER, DIMENSION(2) :: X = (/ 2, 5 /) ! Shape: 2 rows, 5 columns B = RESHAPE(A, X)
Result: B(1,1) = A(1) B(1,2) = A(3) ... B(2,1) = A(2) B(2,2) = A(4) ...
- Example Program:
(Demo above code)
- Prog file: click here
