Intro to parsing

---

---

---



Slideshow:

Parsing

Parsing: Converting an (SQL) query into a query parse tree

Structure of the SQL query parser

We will discuss the details of the SQL language parser in this webpage
(SQL pre-proprecessor will be discussed in next webpage)
Terminology: parser and parse tree

Terminology: parser and parse tree
Example of a parse tree (annotated with atoms and syntactic categories)

Atoms (a.ka.: terminals in compilers)

Examples:
Keywords:   SELECT, FROM, ...
Identifiers:   employee, address, ...
Constants:   3.14, "John", ...
Operators:   +, >=, ...
Separators:   (, ;, ...
Syntactic Categories (a.ka.: non-terminals in compilers)

Examples:
<QUERY>,   <Arithmetic-Expression>,  <Boolean-Expression>,...
Structure of a Parse Tree

Structure of a Parse Tree

Structure of a Parse Tree

❮ ❯



---

---

---

---

• The (SQL) Query parser

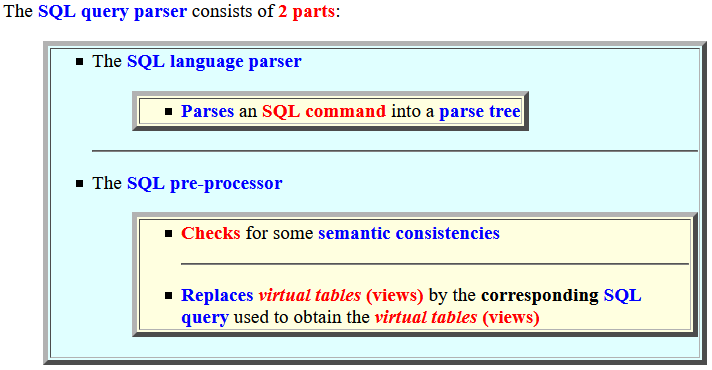

  • The SQL query parser consists of 2 parts:

    The SQL language parser Parses an SQL command into a parse tree The SQL pre-processor Checks for some semantic consistencies Replaces virtual tables (views) by the corresponding SQL query used to obtain the virtual tables (views)

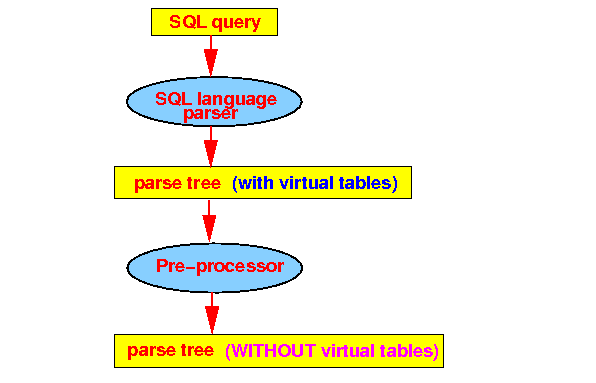

    Graphically:

  ---

  ---

  ---

  ---

• Parser and parse tree

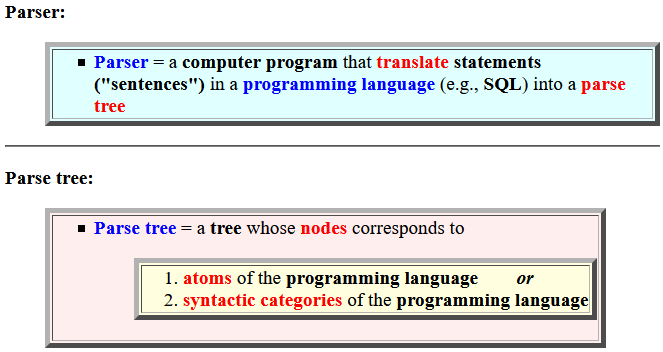

  • Parser:

    Parser = a computer program that translate statements ("sentences") in a programming language (e.g., SQL) into a parse tree

    ---

  • Parse tree:

    Parse tree = a tree whose nodes corresponds to atoms of the programming language        or          syntactic categories of the programming language

    ---

    ---

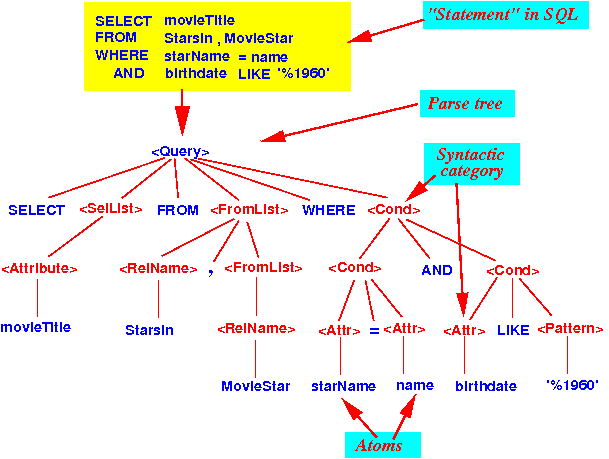

  • Example:

  ---

  ---

  ---

  ---

• Atoms and Syntactic Categories

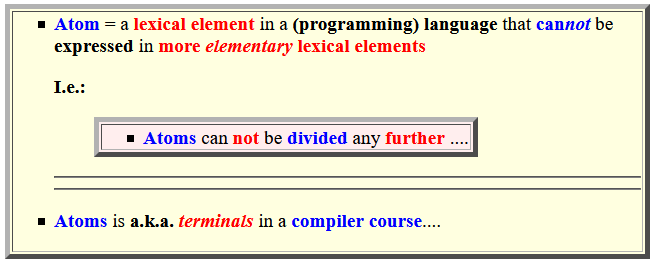

  • Atom:

    Atom = a lexical element in a (programming) language that cannot be expressed in more elementary lexical elements I.e.: Atoms can not be divided any further .... Atoms is a.k.a. terminals in a compiler course....

    Examples of atoms:

    keywords: SELECT,   FROM,   WHERE, etc identifiers employee,   name, .... Constants: 3,   3.14,   'April', ... Operators: +,   >= ,   LIKE, .... Tokens: (,   ; ,   , , ....

    ---

    ---

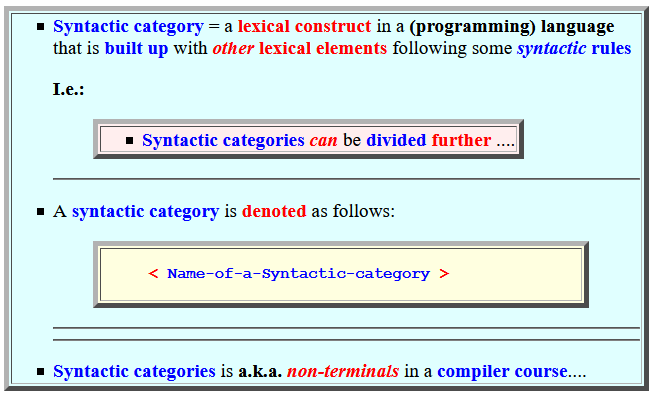

  • Syntactic category:

    Syntactic category = a lexical construct in a (programming) language that is built up with other lexical elements following some syntactic rules I.e.: Syntactic categories can be divided further .... A syntactic category is denoted as follows: < Name-of-a-Syntactic-category > Syntactic categories is a.k.a. non-terminals in a compiler course....

    Examples of syntactic categories:

    <Query> <Arithmetic expression> <Condition> (or Boolean expression)

  ---

  ---

  ---

  ---

• Properties of a parse tree
  • Parse tree:

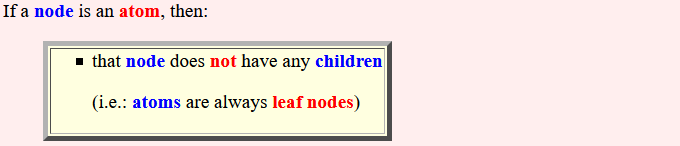

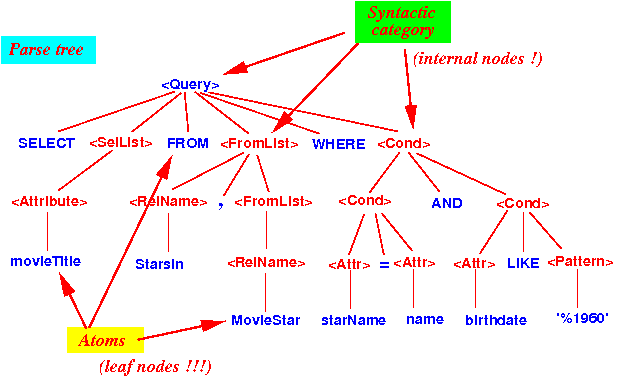

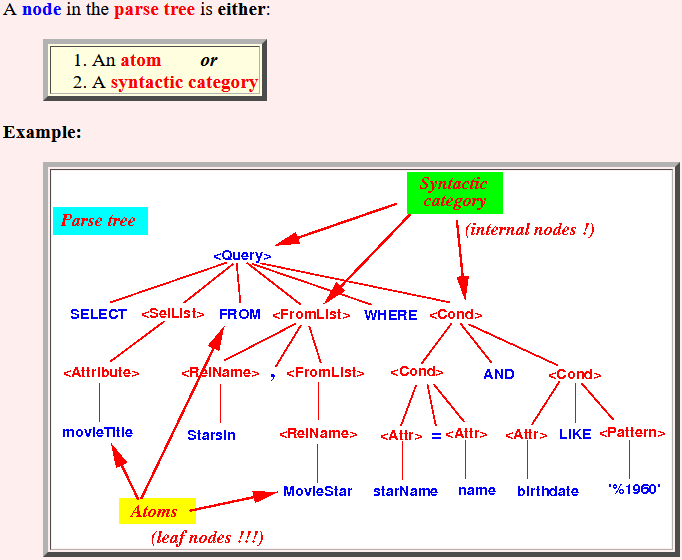

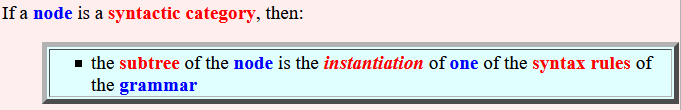

    A node in the parse tree is either: An atom        or        A syntactic category Example: If a node is an atom, then: that node does not have any children (i.e.: atoms are always leaf nodes) If a node is a syntactic category, then: the subtree of the node is the instantiation of one of the syntax rules of the grammar
