Laws involving duplicate elimination (δ)

---

---

---



Slideshow:

Laws involving duplicate elimination (δ)

Graphically illustrated:

Laws involving duplicate elimination (δ)

Comments:
You can apply these law to remove duplicate tuples earlier and reduce the number of tuples However: the cost saving resulting from pushing down δ is usually small. Pushing down δ is often omitted ...
"Self-disappearing" δ operation

Apply δ on a set (= with no duplicates) is useless:

3 situations where tuples in a set are unique

❮ ❯



---

---

---

---

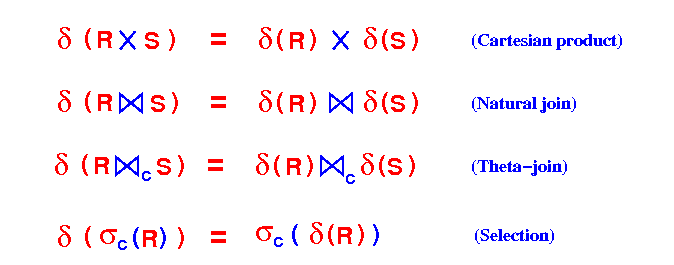

• Laws about δ (= duplicate elimination operator)
  • δ can usually be performed earlier in an relational algebra expression:

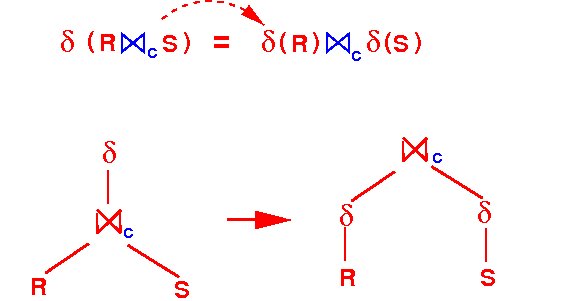

    Graphically depiction of the effect of these laws:

    You can see that δ is pushed down into the logical query plan/tree:

    ---

    ---

  • Comment:

    The cost saving resulting from pushing down δ is usually small. Pushing down δ is often omitted ...

    ---

    ---

  • Note:

    The result of δ (= duplicate elimination) is always a set (i.e.: no duplicates) !!!

  ---

  ---

  ---

  ---

• "Self-disappearing" δ operation

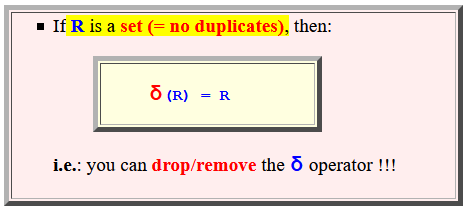

  • Obvious fact:

    If R is a set (= no duplicates), then: δ(R) = R i.e.: you can drop/remove the δ operator !!!

    ---

    ---

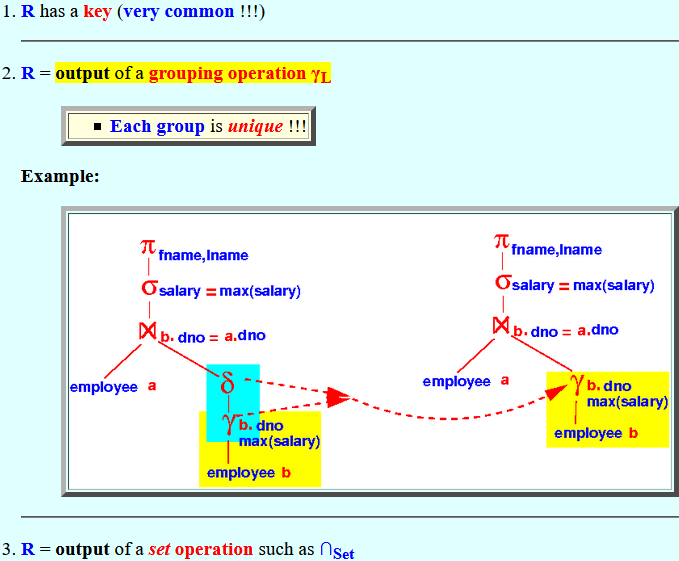

  • Some situations where a relation R is a set:

    R has a key (very common !!!) R = output of a grouping operation γL Each group is unique !!! Example: R = output of a set operation such as ∩Set

    In any of these situations, we can eliminate the δ operation
