Slideshow:
The join (⋈) operator
Observation: we must build a search structure with attributes in the join coindition
The join (⋈) operator
- assumption
The one-pass join (⋈) algorithm
- phase 1
Phase 1: read S and build search structure on join attributes

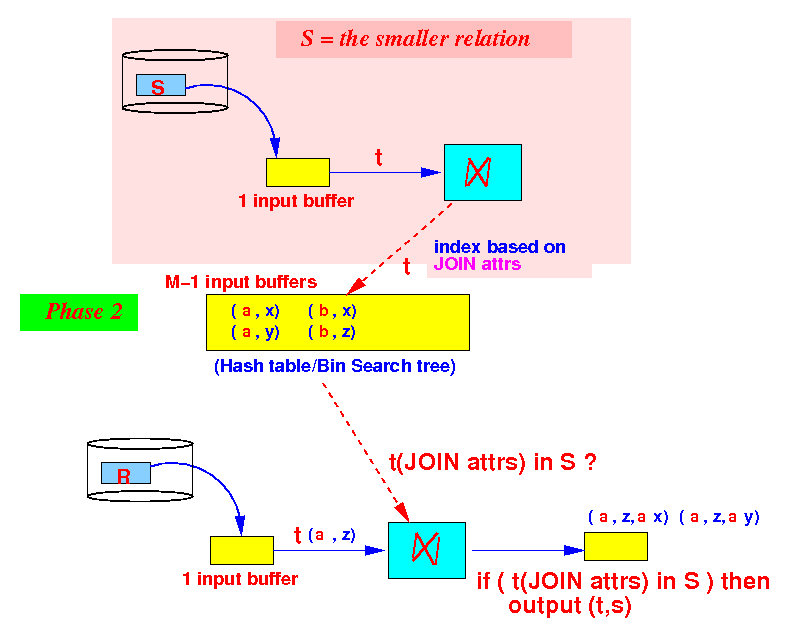

The one-pass join (⋈) algorithm
- phase 2
Phase 2: scan R and find joining tuples using the search structure
The one-pass join (⋈) algorithm
- phase 1
Phase 1: read S and build search structure on join attributes
The one-pass join (⋈) algorithm
- phase 2
Phase 2: scan R and find joining tuples using the search structure
IO cost and buffer requirement for ⋈

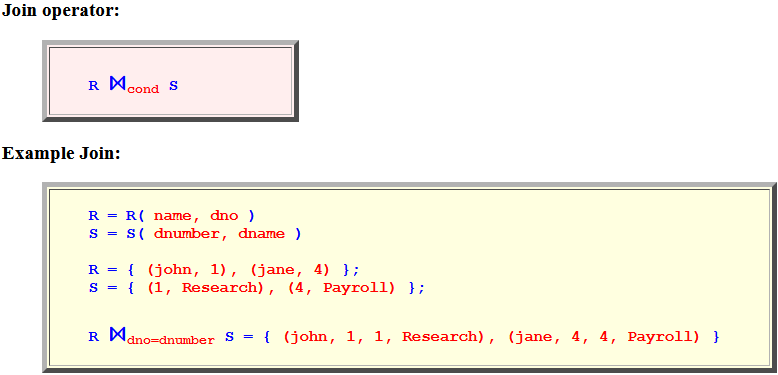

- Join operator:
R ⋈cond S - Example Join:
R = R( name, dno ) S = S( dnumber, dname ) R = { (john, 1), (jane, 4) }; S = { (1, Research), (4, Payroll) }; R ⋈dno=dnumber S = { (john, 1, 1, Research), (jane, 4, 4, Payroll) }
- One-pass algorithm:
Assumption:
- The relation S is
the
smaller relation
- Building a search structure using S will minimize the memory requirement
Algorithm: (the classic hash-join algorithm)
initialize a search structure H on JOIN attributes of S; /* =========================================================== Phase 1: Use 1 buffer and scan the SMALLER relation first. Build a search structure on the SMALLER relation to help speed up finding common elements. =========================================================== */ while ( S has more data blocks ) { read 1 data block in buffer b; for ( each tuple t ∈ b ) { insert t in H; // Build search structure // (hash table or search tree) } } /* ======================================================== Phase 2: Output only those tuples in R that have join attrs equal to some tuple in S We use the search structure H to implement the test t(join attrs) ∈ H efficiently !!! For H, we can use hash table or some bin. search tree ========================================================= */ while ( R has more data blocks ) { read 1 data block in buffer b; for ( each tuple t ∈ b ) { if ( t(join attrs) ∈ H (search structure) ) { for ( each s ∈ Bucket[ t(join attrs) ] ) output (t, s); // successful join } } }
Buffer utilization when there are M buffers available:
- Phase 1:
partition the M buffers as
follows:
Use 1 buffer for input from S
Use M−1 buffers for the search structure
- Phase 2:
partition the M buffers as
follows:
Use 1 buffer for input from R
We are still using M−1 buffers for the search structure in phase 2
- The relation S is
the
smaller relation
- # disk I/O used:
- B(R) + B(S) --- if the relations R and S are clustered
- Memory requirement:
- M ≥ B(S) + 1 buffer
- Relation S is the smaller relation in the intersection
- M ≥ B(S) + 1 buffer
