Slideshow:
The set intersection operator (∩set)
Good news: the algorithm for ∩set is the same as the algorithm for ∩bag
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Pass 1
(Graphically explained in next slide)
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Pass 1

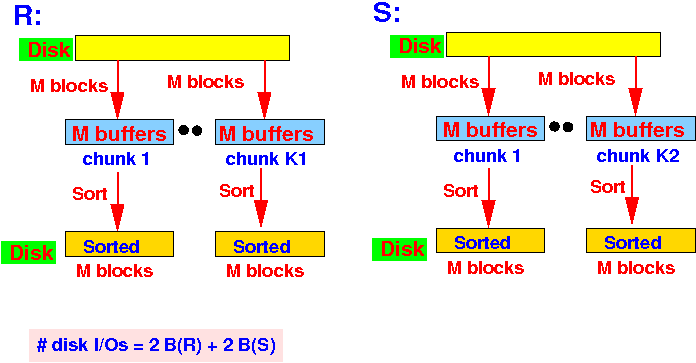

Use M buffers and sort the relation R and S into chunks of (sorted) M blocks:
IO cost for pass 1 = 2 B(R) + 2 B(S)
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Pass 2
Pass 2:
(Graphically explained in next slide)
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Pass 2

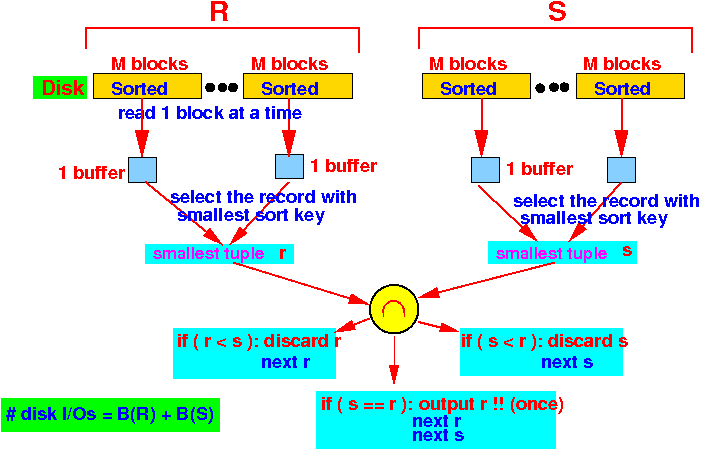

Pass 2:
You only need a program variable to store 1 tuple for each relation (i.e.: do not require an entire buffer)
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Example
- Pass 1

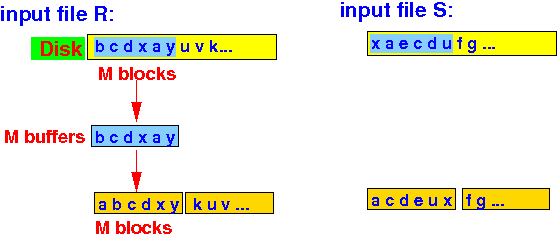

Pass 1: read chunks of M blocks from relations R and S and sort:
Write the sorted chunks (each chunk is M blocks) to disk
The 2-pass TPMMS based set intersection
(∩set) algorithm
- Example
- Pass 2
(R and S are sets !)

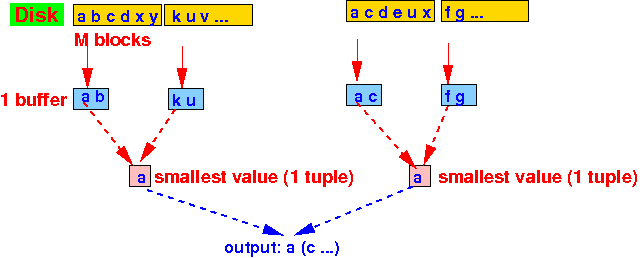

Pass 2: read 1 block from every (sorted) chunk and find the smallest tuple in each relation:
If R(smallest tuple value) =
S(smallest tuple value) then
output tuple and
advance both relations
(The output will
also
be a set !!)
If R(smallest tuple value) <
S(smallest tuple value) then
discard R's tuple
and
advance R
If R(smallest tuple value) >
S(smallest tuple value) then
output S's tuple and
advance S
Cost analysis of
the 2-pass TPMMS based set intersection
(∩set) algorithm
Buffer requirement of
the 2-pass TPMMS based set intersection
(∩set) algorithm
The relation R and S together must have at most M chunks, because Pass 2 can use at most M buffers:
(We need to use 1 buffer to read 1 sorted chunk)
Buffer requirement of
the 2-pass TPMMS based set intersection
(∩set) algorithm

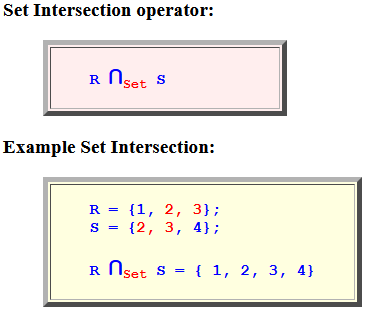

- Set Intersection operator:
R ∩Set S - Example Set Intersection:
R = {1, 2, 3}; S = {2, 3, 4}; R ∩Set S = { 1, 2, 3, 4}
- Good news:
- We can use the ∩Bag algorithm for ∩Set !!!

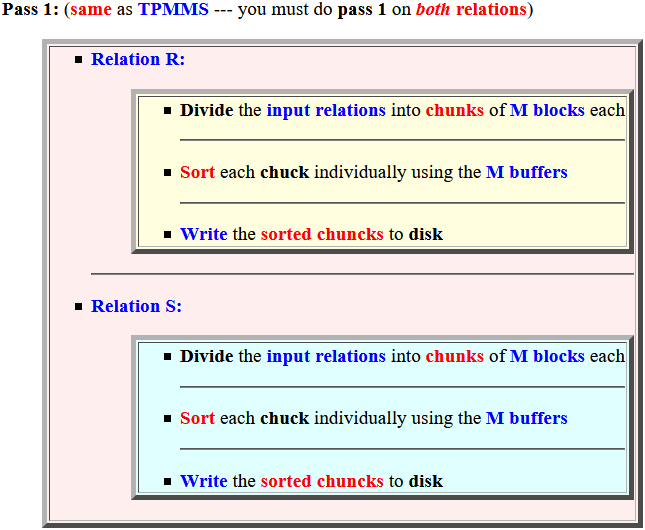

- Pass 1:
(same as
TPMMS ---
you must do pass 1 on
both relations)
- Relation R:
- Divide the
input relations into
chunks of
M blocks each
- Sort each chuck
individually using the
M buffers
- Write the sorted chuncks to disk
- Divide the
input relations into
chunks of
M blocks each
- Relation S:
- Divide the
input relations into
chunks of
M blocks each
- Sort each chuck
individually using the
M buffers
- Write the sorted chuncks to disk
- Divide the
input relations into
chunks of
M blocks each
Graphically:
- Relation R:
- Pass 2:
(same as
bag intersection)

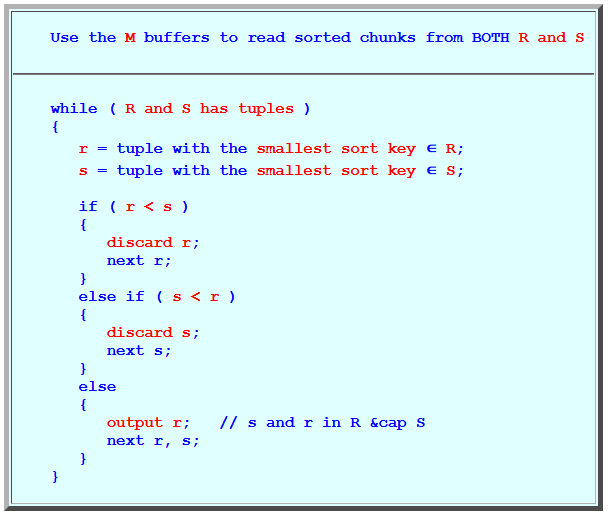

Use the M buffers to read sorted chunks from BOTH R and S
while ( R and S has tuples ) { r = tuple with the smallest sort key ∈ R; s = tuple with the smallest sort key ∈ S; if ( r < s ) { discard r; next r; } else if ( s < r ) { discard s; next s; } else { output r; // s and r in R &cap S next r, s; } }Graphically:
- Example:
- Inputs:
- Pass 1: sort
chunks of size
M blocks
- Pass 2: output
common tuples
to obtain
intersection as
a set
- Inputs:
- # disk I/O used: (assume that
R is
clustered)
- Pass 1:
Read R: B(R) Write sorted chunks: B(R) Read S: B(S) Write sorted chunks: B(S)
- Pass 2:
Read sorted chunks in R and S: B(R) + B(S) Write output: ≤ B(R) + B(S) (not counted)
- Total: 3 B(R) + 3 B(S)
- Pass 1:
- Memory requirement:
- We can have at most
M chunks
in Pass 2:
Therefore: total number of chunks of R and S --- together --- must be ≤ M

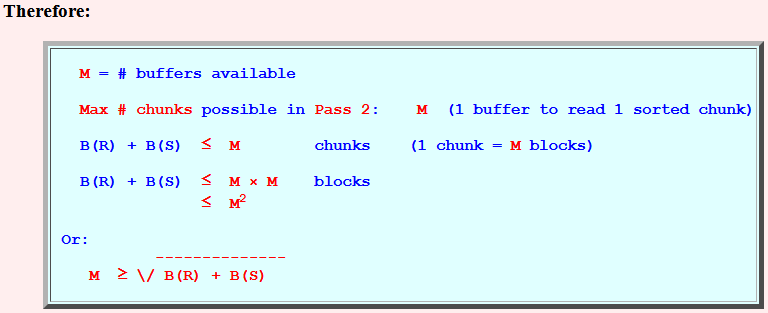

- Therefore:
B(R) + B(S) ≤ M chunks (1 chunk = M blocks) B(R) + B(S) ≤ M × M blocks ≤ M2 Or: -------------- M ≥ \/ B(R) + B(S)
- We can have at most
M chunks
in Pass 2:
