Slideshow:
The set difference operator (−set)
Good news: the algorithm for −set is the same as the algorithm for −bag !!!
The 2-pass TPMMS based set difference
(−set) algorithm
- Pass 1
(Graphically explained in next slide)
The 2-pass TPMMS based set difference
(−set) algorithm
- Pass 1
Use M buffers and sort the relation R and S into chunks of (sorted) M blocks:
IO cost for pass 1 = 2 B(R) + 2 B(S)
The 2-pass TPMMS based set difference
(−set) algorithm
- Pass 2
Pass 2:
(Graphically explained in next slide)

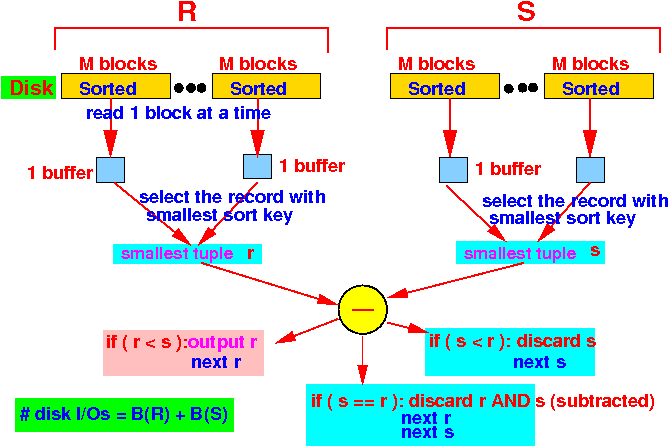

The 2-pass TPMMS based set difference
(−set) algorithm
- Pass 2

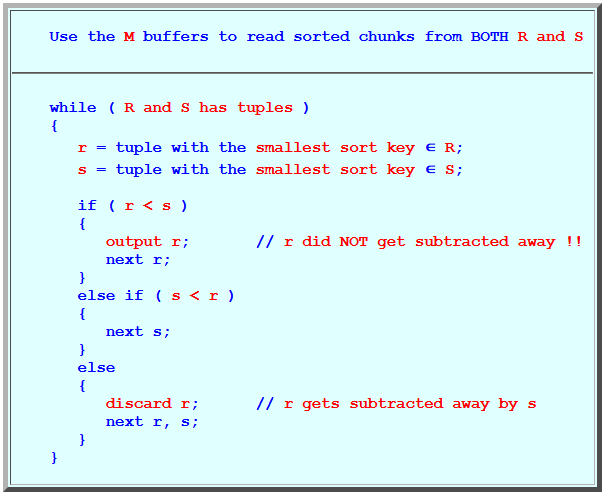

Pass 2:
You only need a program variable to store 1 tuple for each relation (i.e.: do not require an entire buffer)
The 2-pass TPMMS based set difference
(−set) algorithm
- Example
- Pass 1
Pass 1: read chunks of M blocks from relations R and S and sort:
Write the sorted chunks (each chunk is M blocks) to disk
The 2-pass TPMMS based set difference
(−set) algorithm
- Example
- Pass 2
(R and S are sets !)

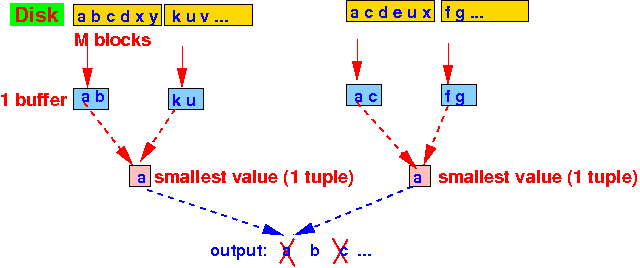

Pass 2: read 1 block from every (sorted) chunk and find the smallest tuple in each relation:
If R(smallest tuple value) <
S(smallest tuple value) then
output R's tuple
and
advance R
(You can only
get 1 value in
the output because
R is a
set)
If R(smallest tuple value) =
S(smallest tuple value) then
discard R's tuple (subtract !) and
advance R and S
If R(smallest tuple value) >
S(smallest tuple value) then
(discard S's tuple) and
advance S
Cost analysis of
the 2-pass TPMMS based set difference
(−set) algorithm
Buffer requirement of
the 2-pass TPMMS based set difference
(−set) algorithm

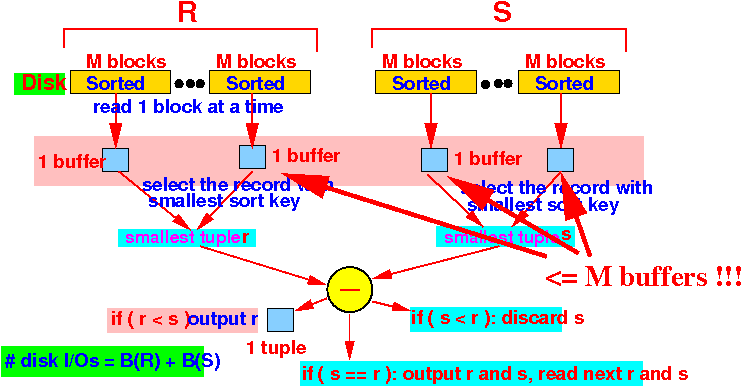

The relation R and S together must have at most M chunks, because Pass 2 can use at most M buffers:
(We need to use 1 buffer to read 1 sorted chunk)
Buffer requirement of
the 2-pass TPMMS based set difference
(−set) algorithm
- Set Difference operator:
R −Set S - Example Set Difference:
R = {1, 2, 3}; S = {2, 3, 4}; R −Set S = { 1 }

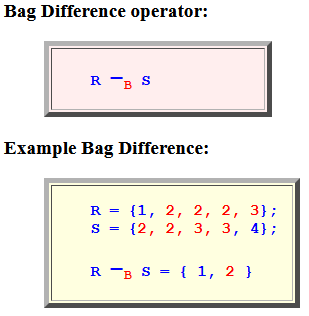

- The set difference algorithm
is the same as
the Bag difference !
- Example:
- Inputs:
- Pass 1: sort
chunks of size
M blocks
- Pass 2: remove
common tuples
to obtain
difference as
a bag
- Inputs:
