- The internal node deletion algorithm
uses a transfer operation that
is similar to
the tree-rotation algorithm in
Binary Search trees
- For your convenience, I have
included the following
animation illustrating the
tree-rotation procedure:
From Wikipedia
- Given:
- An internal node
of
a B+-tree
- Search key value x and its right subtree link
Goal:
- Delete x and its right subtree link from internal node of the B+-tree
- An internal node
of
a B+-tree
- Delete Algorithm for internal node:
/* ======================================================================== DeleteInternal( x, rx, N ): (rx = the right tree pointer of x) Delete (searchKey x, x's rightTreePtr rx) from an internal node N in the B+-tree where minKey < x ≤ maxKey ======================================================================== */ DeleteInternal( x, rx, N ) { Delete x, rx from node N; // Deletion done... but node may underflow !!! /* ==================================== Check for underflow condition... ==================================== */ if ( N has ≥ ⌈(n+1)/2⌉ pointers /* At least half full*/ ) { return; // Done } else { /* --------------------------------------------------------- N underflowed: fix the size of N with transfer or merge --------------------------------------------------------- */ /* ======================================================== Always try transfer first !!! (Merge is only possible if 2 nodes are half filled) ======================================================== */ if ( leftSibling(N) has ≥ ⌈(n+1)/2⌉ + 1 pointers ) { 1. transfer right subtree link into N as the first link 2. transfer last key from leftSibling(N) through parent into N as the first key;
(The transfer operation in an internal node is similar to tree rotation in BST)
}
else if ( rightSibling(N) has ≥ ⌈(n+1)/2⌉ + 1 pointers )
{

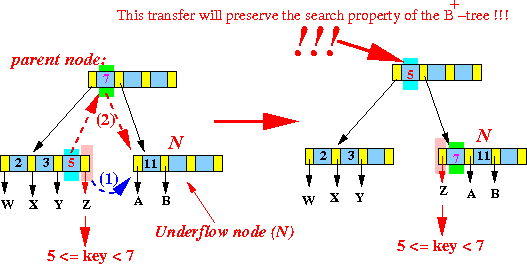

1. transfer left subtree link into N as the last link

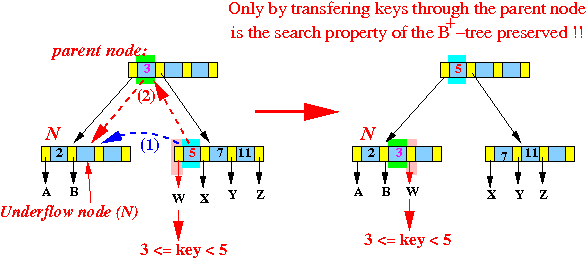

2. transfer first key from rightSibling(N) through parent into N as the last key;
(The transfer operation in an internal node is similar to tree rotation in BST)
}
/* ===============================================================
Here: we cannot solve underflow with a transfer
Because: BOTH sibling nodes have minimum # keys/pointers
(= half filled !!!)

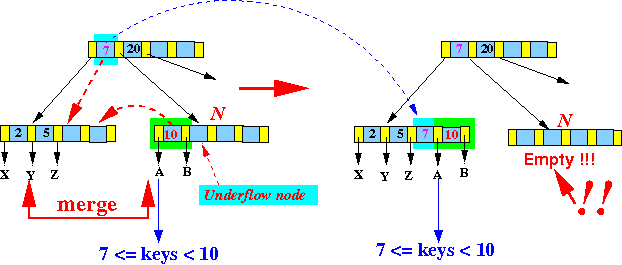

Solution: merge the underflowed node with one of its sibling
=============================================================== */
else if ( leftSibling(N) exists )
{
/* ===============================================
merge underflow node N with left sibling node
=============================================== */
1. Merge (1) leftSibling(N) + (2) key in parent node + (3) underflow node N
into the leftSibling(N) node;

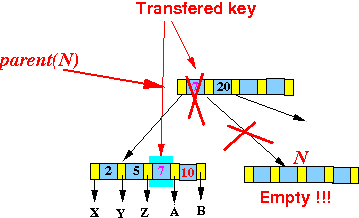

2. DeleteInternal ( transfered key, right subtree ptr, parent(N) ); // Recurse !!
}
else // Node N must have a right sibling node !!!
{
/* ===============================================

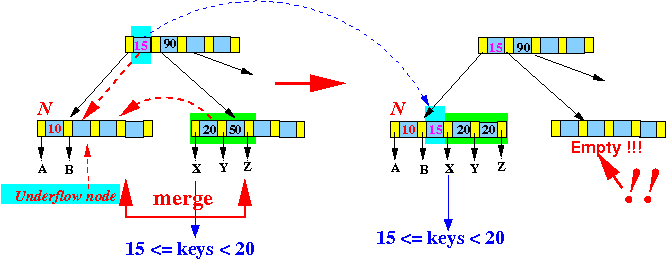

merge underflow node N with right sibling node
=============================================== */
1. Merge (1) underflow node N + (2) key in parent node + (3) rightSibling(N)
into the node N;

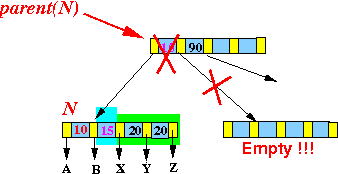

2. DeleteInternal ( transfered key, right subtree ptr, parent(N) ); // Recurse !!
}
}
