Simultaneous closing of both (uni-directional) TCP connections

---

• Simultaneous closing
  • Fact:

    Because each disconnect is indepedent of each other, it is possible that: both TCP modules initiate the close operation simultaneously !!!

    ---

    ---

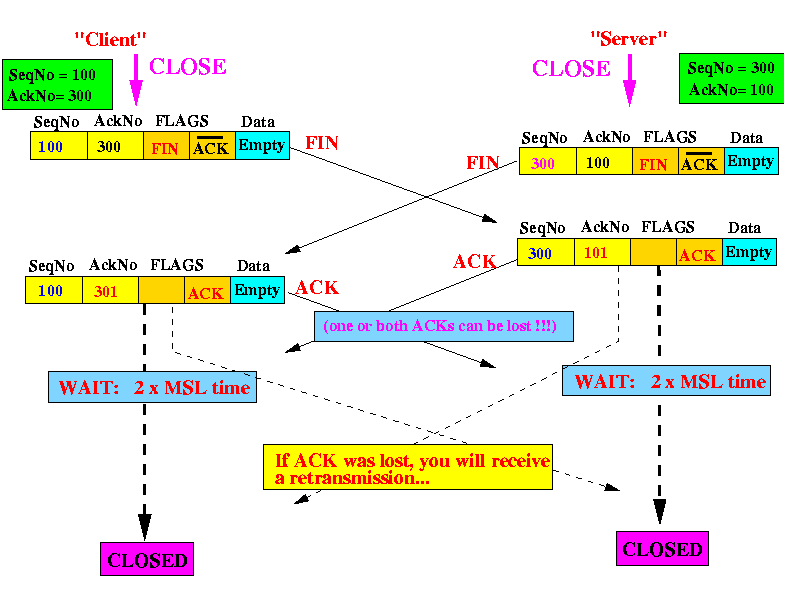

  • The messages exchanged in a simultaneous close is as follows:

    Notes:

    Both TCP modules send a FIN request Both TCP modules reply with an ACK After sending the ACK, each TCP protocol module must wait 2 x MSL (240 sec) before removing the TCP state record
