The Distance Vector Routing Algorithm --- round 2 message exchange

---

• Example Distance Vector Routing

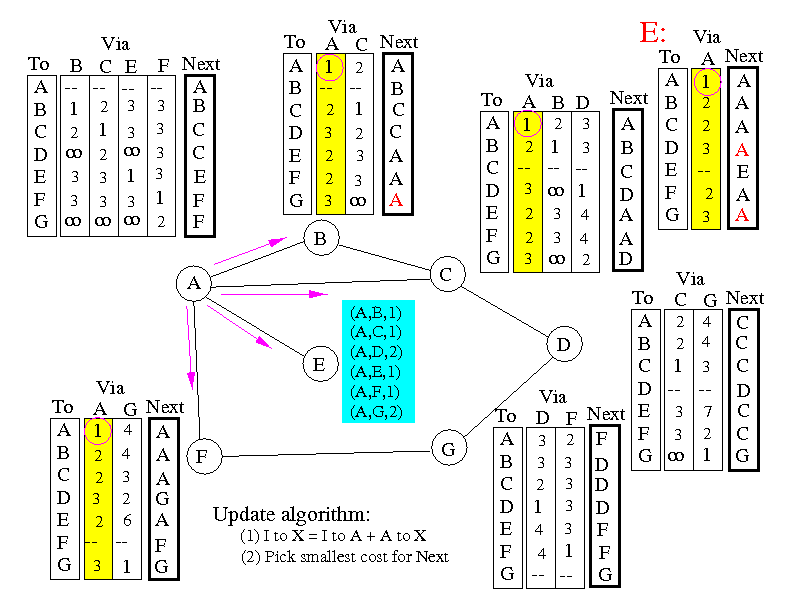

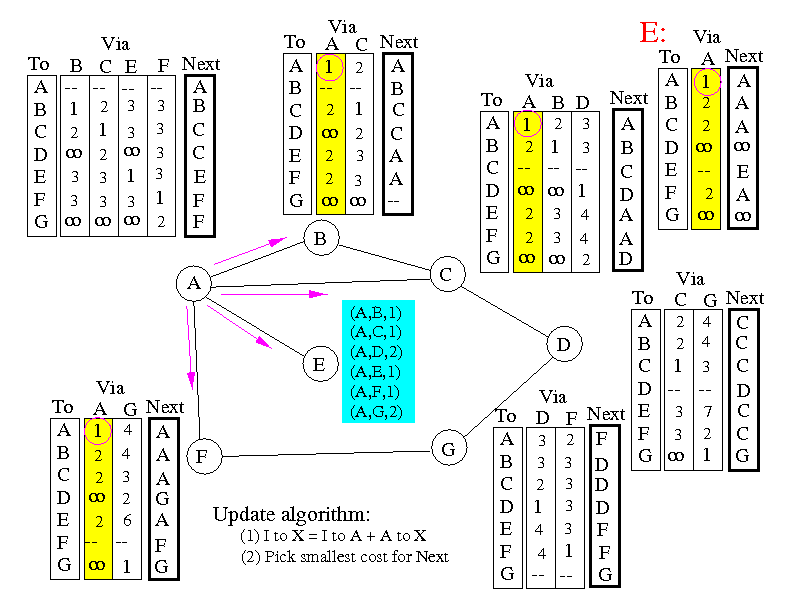

  • Suppose node A transmits updates next:

    ---



    ---

    Which will cause the following updates in tables of node B, C, E and F:







    ---

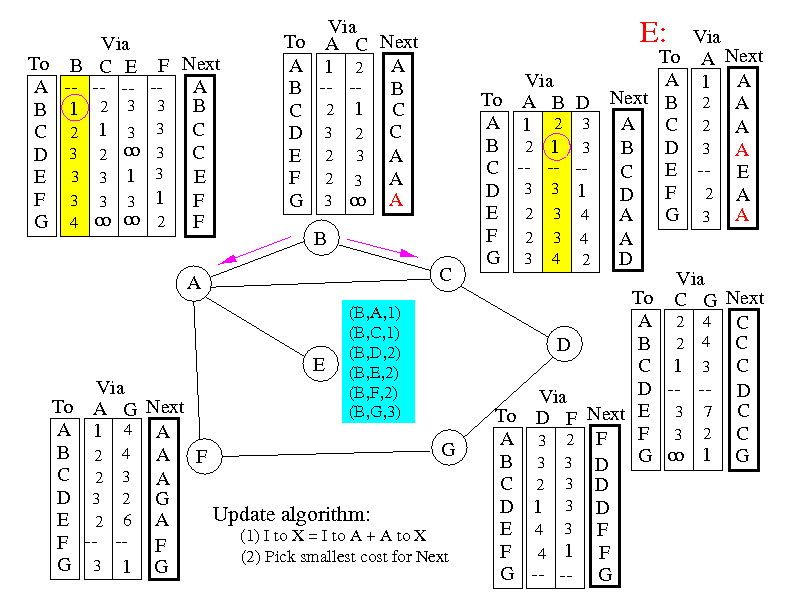

  • Suppose node B transmits updates next:

    ---

    (I will skip the message figure from now on....)

    This will cause the following updates in tables of nodes B, C, E and F:







    ---

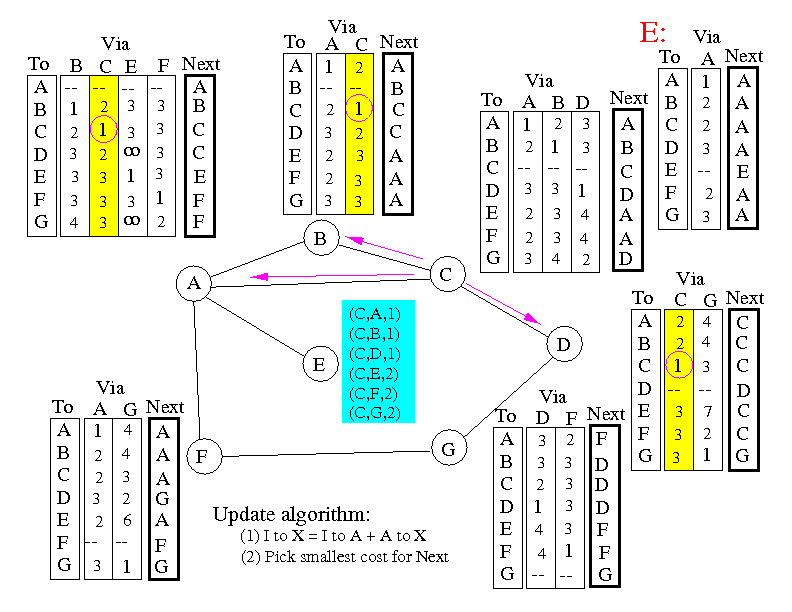

  • Suppose node C transmits updates next:

    ---

    This will cause the following updates in tables of nodes A, B, and D:







    ---

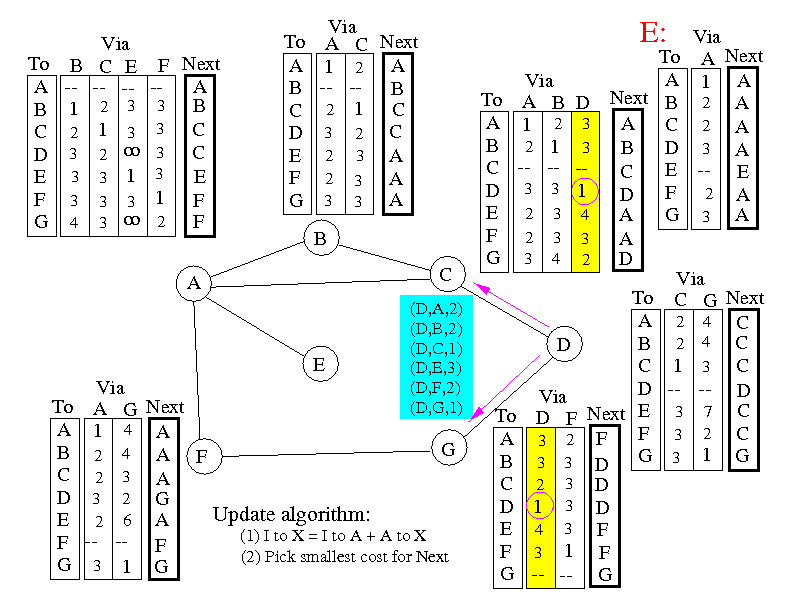

  • Suppose node D transmits updates next:

    ---

    This will cause the following updates in tables of nodes C, and G:







    ---

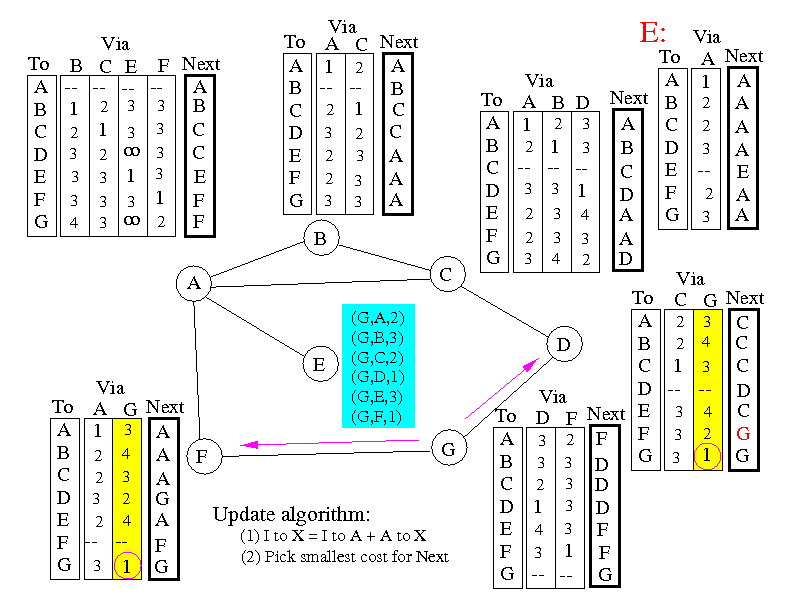

  • Suppose node G transmits updates next:

    ---

    This will cause the following updates in tables of nodes D, and F:







    ---

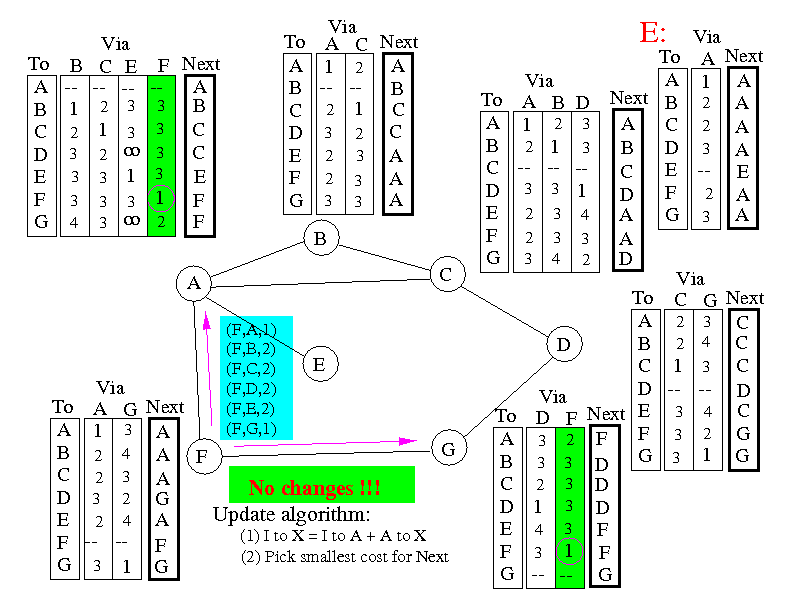

  • Suppose node F transmits updates next:

    ---

    This will cause the following updates in tables of nodes A, and G:



    ---

    NOTE:

    There are no changes in the values of the distance tables in nodes A and G Therefore, no update messages need to be schedule (sent) !!!

    NOTE:

    Other nodes (i.e., other than nodes A and G) may still have updates scheduled...





    ---

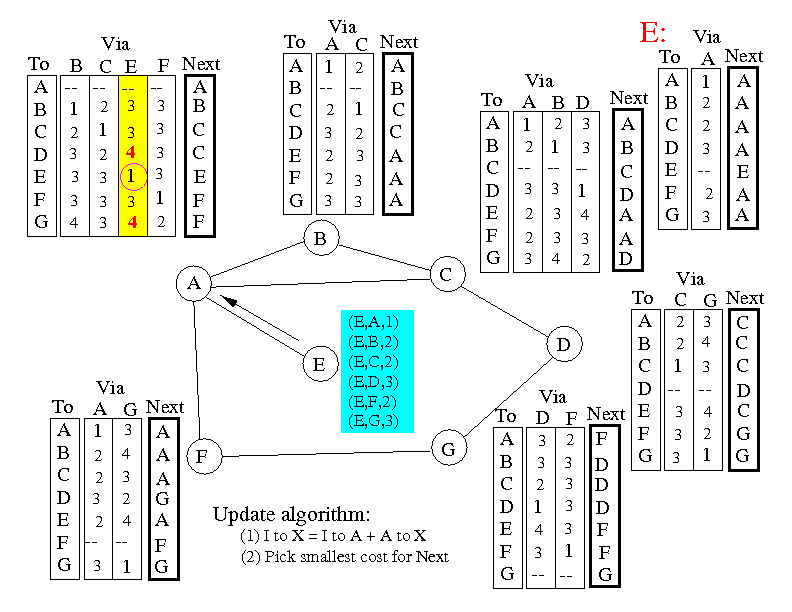

  • Suppose node E transmits updates next:

    ---

    This will cause the following updates in tables of node A:



    ---

    ---

  • This is the converged state

  • You can try make some node sending its distance vector to its neighbors

    The computation (triggered by the distance vector will not change the distance table any further...

  • Convergence !!!.....
