A traffic problem created by short-circuit replies

---

• A traffic problem created by the Route Request short-circuit operation

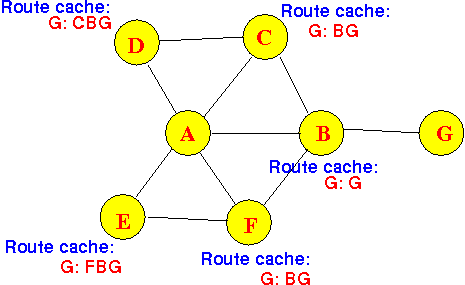

  • Consider the following scenario:

    Notice that:

    Many nodes have a source route to node G

    ---

    ---

  • Traffic problem cause by short-circuiting a ROUTE REQUEST message:

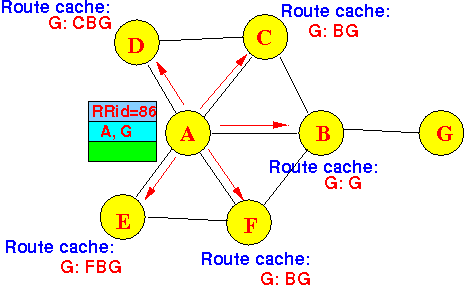

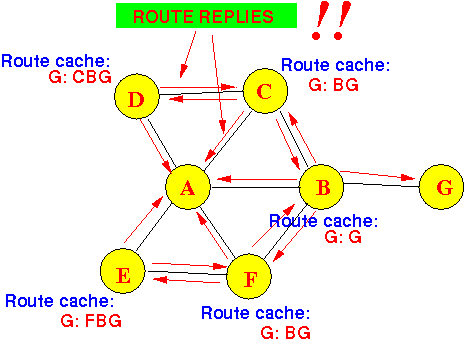

    Suppose that node A transmits a ROUTE REQUEST message: Result: Many simultaneous broadcast transmissions due to short-circuiting the ROUTE REQUEST !!! Example:

    ---

    ---

  • Fact about broadcast networks:

    Simultaneous transmissions will result in collision We will need to use: Exponetial backoff protocol to resolve which node gets to transmit first Better: We want to avoid simultaneous transmissions if possible !!!

  ---

  ---

  ---

  ---

• Minimize simultaneous ROUTE REPLY transmissions
  • Engineering solution:

    Use the path length of the source route to construct a distributed scheduling mechanism !!

    ---

    ---

  • Scheduling the transmission of a short-circuit ROUTE REPLAY message:

    Let h = length (#hops) of the source route in ROUTE REPLY message; Let r = random(0,1); // Random number between 0 and 1 Let H = hop delay (propagation delay of 1 wireless hop) wait 2×H×(h+r-1) sec; transmit the short-circuit ROUTE REPLY message;

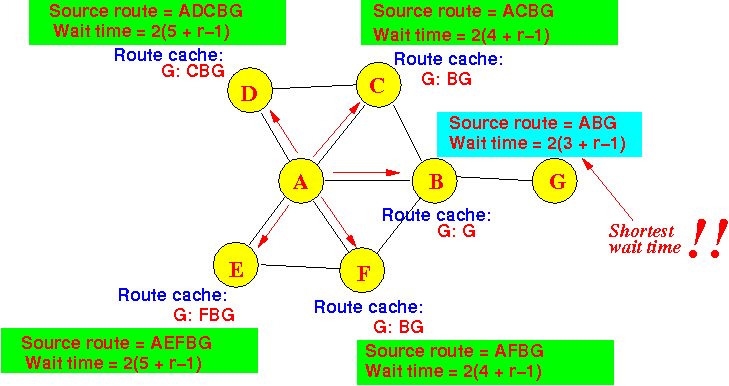

    Example:

    In the previous example: The wait time for each node will be:

    ---

    ---

  • The effect of the delay is:

    Reduce the number of simultaneous transmissions (of a short-circuit ROUTE REPLY operation) Allow the shortest (best) route to be transmitted first !!!

  ---

  ---

  ---

  ---

• Further improvement: cancalling a short-circuit ROUTE REPLY
  • Monitor and cancelling a short-circuit Route Reply:

    While a node is waiting to send a short-circuit Route Reply message: the node must promiscuously receives (eavesdropping) on all packet transmissions If the node hears a transmission containing: A shorter source route from the originator (of the ROUTE REQUEST message) to the destination of the ROUTE REQUEST message then: The node will cancel the short-circuit ROUTE REPLY

    ---

    ---

  • Example:

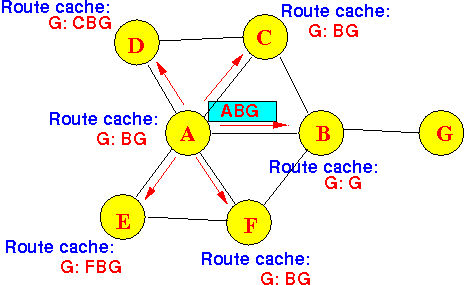

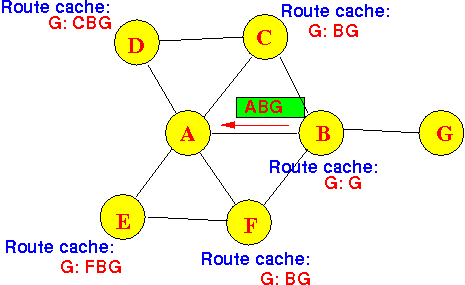

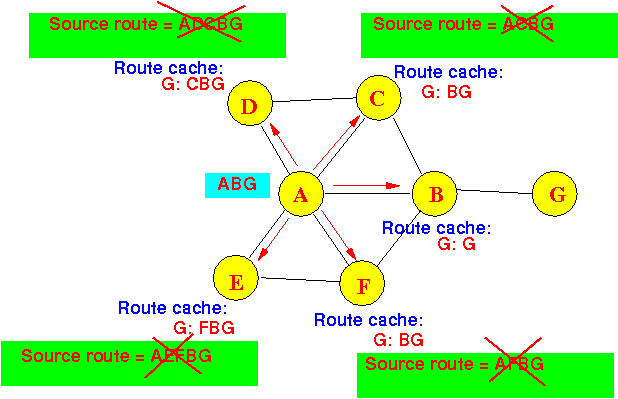

    Consider the previous example: If node B transmits the ROUTE REPLY first: Then node A will transmits the packet with the shortest source route: The transmission will cancel the ROUTE REPLY at nodes C, D, E and F:
