Caveat on using Cached Routes

---

• A caveat in short-circuiting the Route Request operation

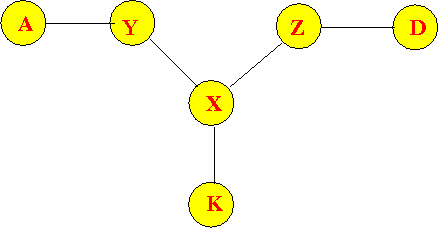

  • Consider the following wireless network topology:

    ---

    ---

  • Suppose that node K has just found a source route to node D:

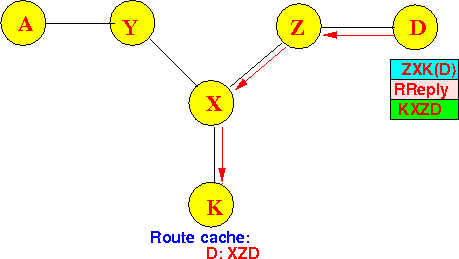

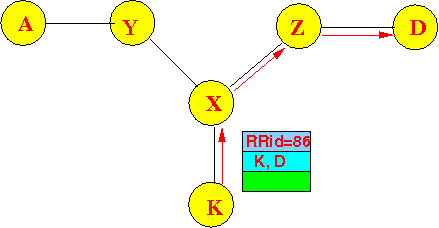

    Node K sent a ROUTE REQUEST for node D: And node K got back a ROUTE REPLY from node D: Node K now has a source route to node D (and can short-circuit route request for destination D)

    ---

    ---

    ---

  • Now consider the following Route Request operation:

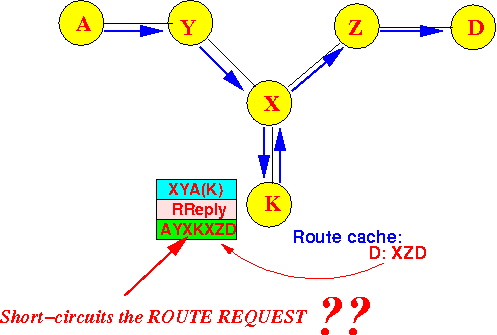

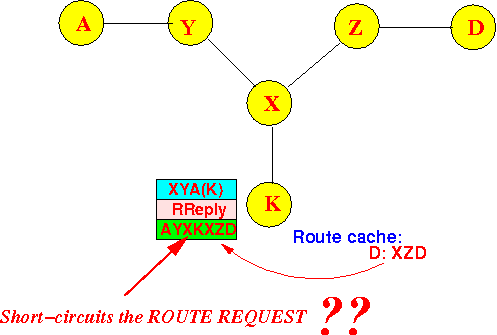

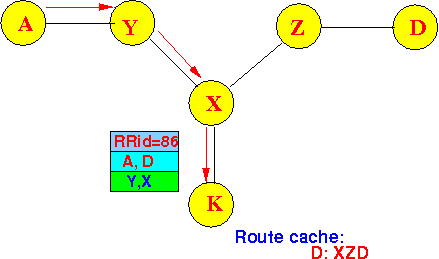

    Node A sends a ROUTE REQUEST for node D: When the ROUTE REQUEST arrives at node K: Node K could short-circuit the ROUTE REQUEST: However, that would result in the following inferior source route:

    ---

    ---

  • Rule to prevent the creation of inferior routes:Sour

    If the current source path in the route record contains a node in the appended source path: then: Short-cirucuiting the ROUTE REQUEST message is not allowed !!!
