- Connecting to
different types of
networks:
- It should be clear that the forwarding method will also work on different types of physical network

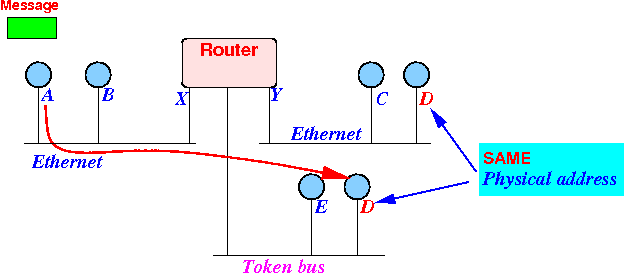

Example:
- Suppose node
A wants to
send a
message to
D:

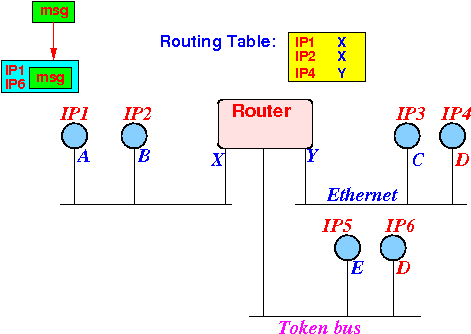

- Node A will transmit
the follow
IP packet:

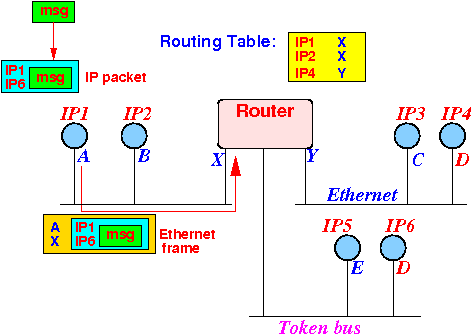

- The
IP packet will
be transmitted with
an Ethernet frame to
the router:

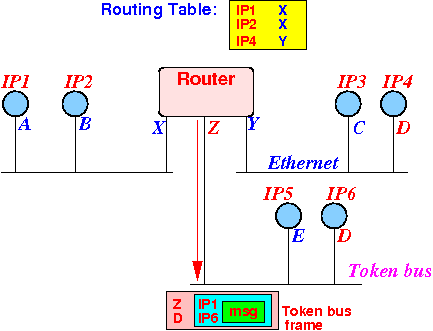

- The
IP packet will
be forwarded to
D using
a Token bus frame:
