Two-way (bi-directional) tunnels and overlay networks

---

• Notable fact

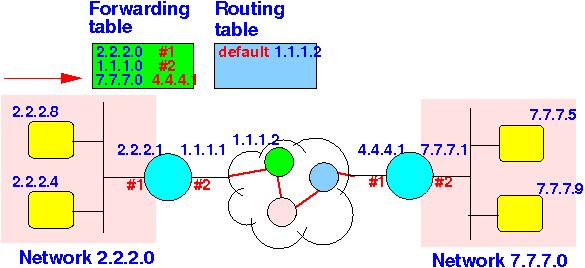

  • The tunnel setup:

    created by the virtual interface:

    Network ID | Interface (port) -------------+------------------- 7.7.7.0 | 4.4.4.1

    is a

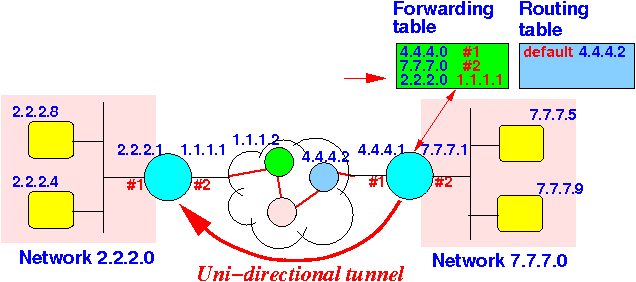

    uni-directional tunnel From router 2.2.2.1 To router 4.4.4.1

    ---

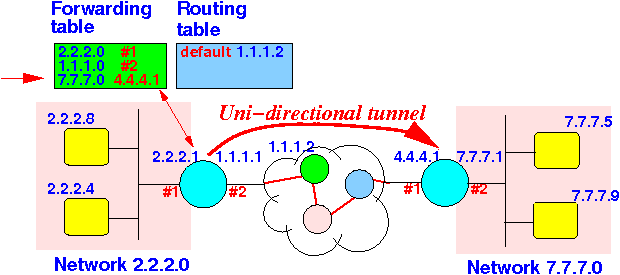

  • Graphically:

  ---

  ---

  ---

  ---

• Two-way (bi-directional) IP-in-IP tunneling
  • Fact:

    A bi-directional tunnel (= 2 way) is created using: Two uni-directional tunnels

  • How to set up a two-way tunnel:

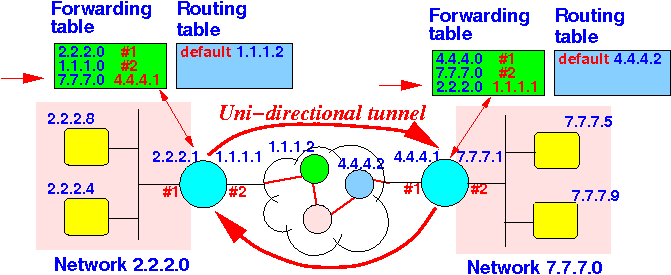

    We first setup a one-way tunnel: Then setup another one-way tunnel backwards: Then the 2 one-way tunnels will make up a bi-directional tunnel:
