The "Star-Ring" configuration

---

• The Star-Ring configuration
  • The star-shaped ring topology was proposed to overcome the cable failure problem:

    The actual shape of the hub or concentrator is a box:

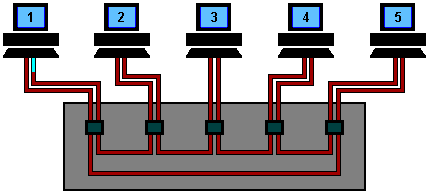

    The connection forms a physical ring !!!

    ---

    ---

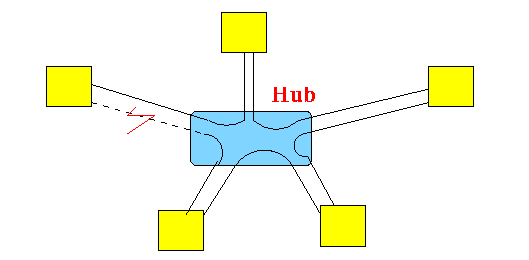

  • Suppose a section of the Token Ring was disrupted:

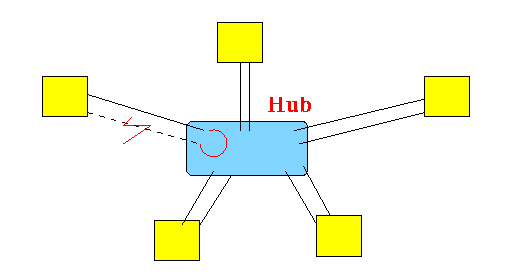

    Locating the cable disruption is now relatively easy:

    Just find the 2 end points that does not for a closed loop:

    Fixing the token ring is also relatively easy:

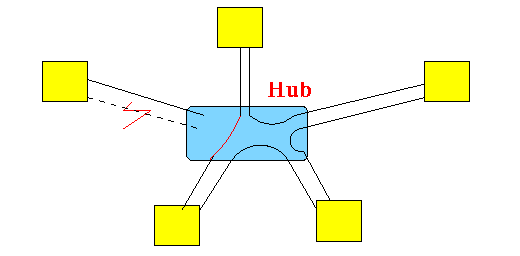

    Omit the disconnected segment:

  ---

  ---
