Variants of the CSMA/CD protocols

---

• Non-persistent CSMA/CD:

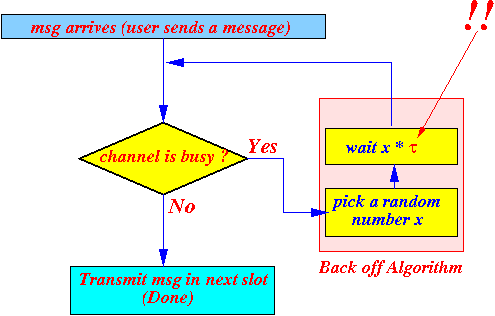

  • Recall the non-persistent CSMA protocol:

    ---

    ---

  • When we use the non-persistent CSMA backoff algorithm in the CSMA/CD flow chart:

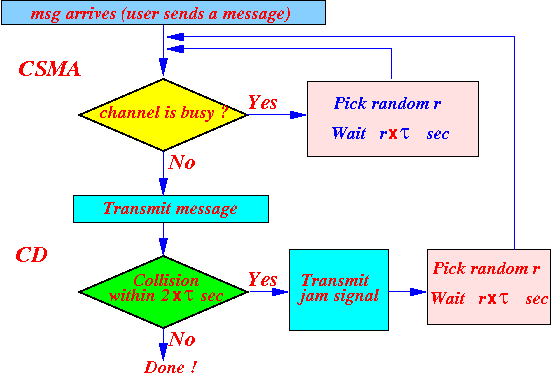

    we obtain the Non-persisten CSMA/CD protocol:

    Note:

    τ = the end-to-end-delay

    ---

    ---

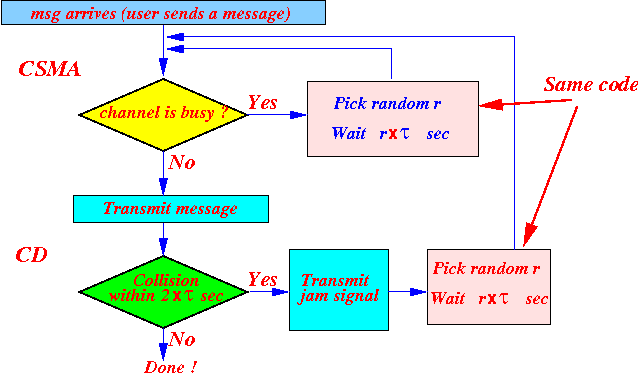

  • We can simplify the previous flow chart:

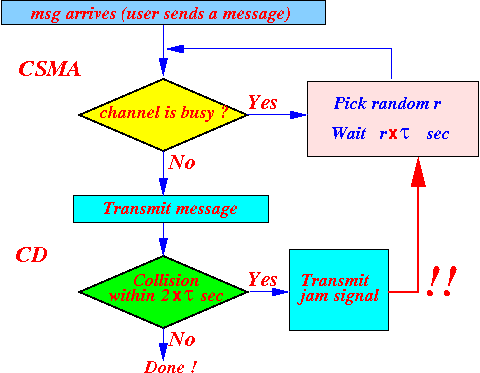

    to this:

    (The non-persistent CSMA/CD protocol)

  ---

  ---

  ---

  ---

  ---

  ---

• 1-persistent CSMA/CD:

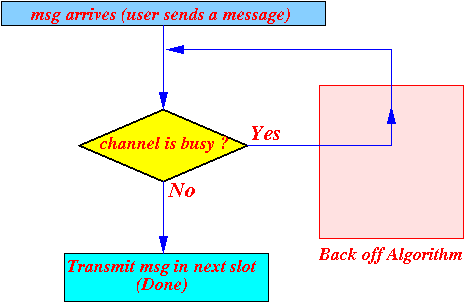

  • Recall the 1-persistent CSMA protocol:

    ---

    ---

  • When we use the 1-persistent CSMA backoff algorithm in the CSMA/CD flow chart:

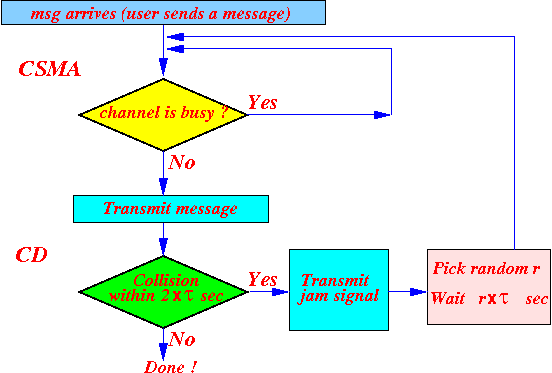

    we obtain the 1-persisten CSMA/CD protocol:
