Formulating Set Division Queries using the Contains (Superset) test in SQL

---

• Set Division Query...
  • The set division operation is not part of the SQL standard - and it probably will never be... (too complex to implement)

  • Recall that the set division is used to answer on specific type of queries, such as:

    Find employees who work on all projects controlled by the 'Research' department" See: click here

    I will now explain how to answer a division query using the CONTAINS (superset) test in a number of examples

  ---

  ---

  ---

  ---

  ---

• Division Query Example 1

  • Example:

    Find fname and lname of employees who works on all projects controlled by department number 4.

    ---

    ---

  • Steps towards the solution:

    1. Formulate the solution using a CONTAINS condition

       You can see that:

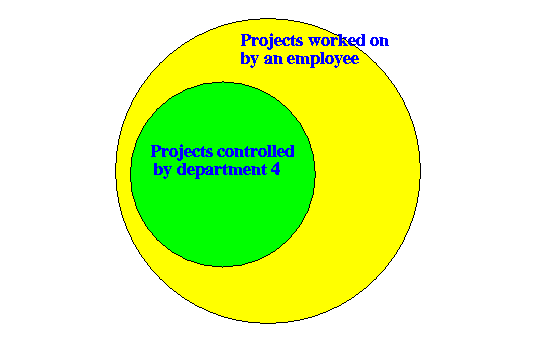

       An employee works on all projects controlled by department number 4 if and only if: The set of projects worked on by the employee CONTAINS the set of projects controlled by department 4

       The SQL query can be formulated using the following pseudo code:

       SELECT fname, lname FROM employee WHERE "set of projects worked on by emplyee.ssn" CONTAINS "set of projects controlled by department 4"

       ---

    2. As discussed about, we can re-write the CONTAINS condition into a NOT EXISTS condition as follows:

       SELECT fname, lname FROM employee WHERE "set of projects controlled by department 4" - "set of projects worked on by emplyee.ssn" = empty set Or: SELECT fname, lname FROM employee WHERE NOT EXISTS ("set of projects controlled by department 4" - "set of projects worked on by emplyee.ssn") Apply the Set Subtraction technique: SELECT fname, lname FROM employee WHERE NOT EXISTS (SELECT pnumber FROM project /* = the universe set of pnumber) */ WHERE pnumber IN "set of projects controlled by department 4" and pnumber NOT IN "set of projects worked on by emplyee.ssn")

       ---

    3. We can work out the inner 2 set as 2 queries as follows:

       "set of projects controlled by department 4": (SELECT pnumber FROM project WHERE dnum = 4) "set of projects worked on by emplyee.ssn (= a specific employee with this ssn)": (SELECT pno FROM works_on WHERE essn = employee.ssn)

       ---

    4. The complete SQL solution is then:

       SELECT ssn, fname, lname FROM employee e WHERE NOT EXISTS (SELECT pnumber FROM project /* Universe set used in the subtract operation */ WHERE pnumber IN (SELECT pnumber FROM project WHERE dnum = 4) and pnumber NOT IN (SELECT pno FROM works_on WHERE essn = e.ssn) ) (I aliased Employee as e for convenience)

    ---

    ---

  • Output:

    ssn fname lname --------- ------ -------- 999887777 Alicia Zelaya 987987987 Ahmad Jabbar

    because:

    Projects control by department 4: pname pnumber plocation dnum --------------- ----------- ---------- ----------- Computerization 10 Stafford 4 Newbenefits 30 Stafford 4 Employees working on department 4's proejcts: essn pno hours --------- ----------- ------- 333445555 10 10.0 999887777 30 30.0 999887777 10 10.0 987654321 30 20.0 987987987 30 5.0 987987987 10 35.0

  ---

  ---

  ---

  ---

• Example 2 of set division query

  • Query

    Find names of projects that are worked on by all employees in the Administration department

    ---

    ---

  • Steps towards the solution:

    1. Formulate the solution using a CONTAINS condition

       SELECT pname FROM project P WHERE "set of employees working on project P (id. by P.pnumber)" contains "set of employees in the Administration department"

    2. Re-write CONTAINS as NOT EXISTS:

       Re-write: SELECT pname FROM project P WHERE "set of employees in the Administration department" − "set of employees working on project P (id. by P.pnumber)" = empty set Or: SELECT pname FROM project P WHERE NOT EXISTS ( "set of employees in the Administration department" − "set of employees working on project P (id. by P.pnumber)" )

    3. Apply the set difference technique to re-write the inner query:

       Use Set Difference technique: SELECT pname FROM project P WHERE NOT EXISTS (SELECT ssn FROM employee /* Universe set of employees */ WHERE ssn IN "set of employees in the Administration department" and ssn NOT IN "set of employees working on project P (id. by P.pnumber)" )

       ---

    4. Work out the 2 inner sets as 2 different SQL queries:

       SELECT pname FROM project P WHERE NOT EXISTS (SELECT ssn FROM employee /* Universe set of employees */ WHERE ssn IN (SELECT ssn FROM employee, department WHERE dno=dnumber AND dname='Administration') and ssn NOT IN (SELECT essn FROM works_on WHERE works_on.pno = P.pnumber) )

    ---

    ---

  • Result:

    pnumber pname ----------- --------------- 30 Newbenefits

    becasue:

    The Administration department is: dname dnumber mgrssn mgrstartdate --------------- ----------- --------- ------------ Research 5 333445555 22-MAY-78 Administration 4 987654321 01-JAN-85 Headquarters 1 888665555 19-JUN-71 Employees in the Administration department: ssn fname lname dno --------- ------ -------- ----------- 999887777 Alicia Zelaya 4 987654321 Jennif Wallace 4 987987987 Ahmad Jabbar 4 Projects worked on by these projects: essn pno hours --------- ----------- ------- 999887777 10 10.0 987987987 10 35.0 987654321 20 15.0 999887777 30 30.0 987654321 30 20.0 987987987 30 5.0

    Project 30 (Newbenefits) is worked on by all employees in the Administration department !
