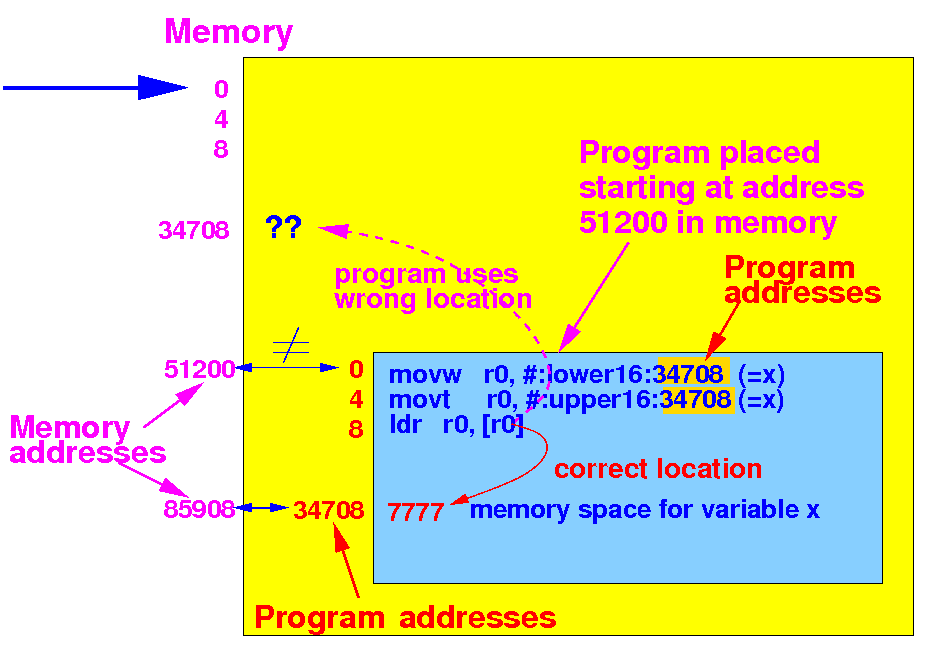

Relationship between
program addresses and
memory addresses
- The relationship between
program addresses and
memory addresses
depends on:
- How the
program is
placed in the
memory
|
- When the
(whole) program is
stored in
memory
at memory location 0:
-
Memory address
=
Program address
|
|
Relationship between
program addresses and
memory addresses
- The relationship between
program addresses and
memory addresses
depends on:
- How the
program is
placed in the
memory
|
- When the
program is
stored in
memory
at a
different
memory location:
-
Memory address
=
f(Program address)
f( ) is a
map/function
|
|
Implementation
of the Virtual Memory Technique
- The
CPU
sends out
addresses
to (1) fetch
an instruction or
(2) read/write a
variable in the
computer program:
- The address
used/sent out
by
the CPU is
always
a
program address
|
|

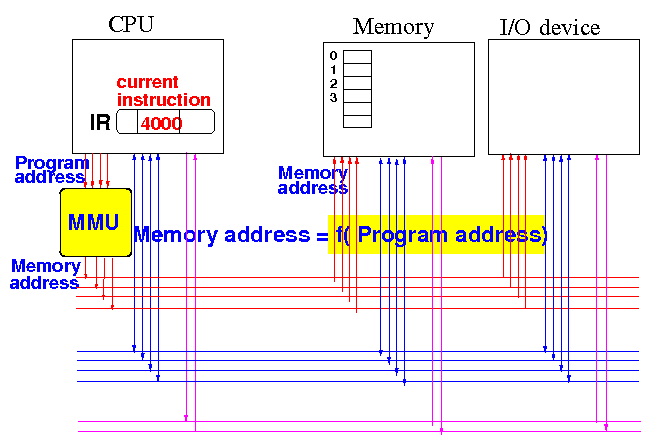

Implementation
of the Virtual Memory Technique
-
Memory bytes/cells are
selected/identified
by a
address on the
address bus:
- The address
used/sent into
the address bus is
always
a
memory address
|
|
Implementation
of the Virtual Memory Technique
- A computer
implements
the Virtual Memory Technique
by
mapping a
program address
to a memory address using
a
(dynamic) mapping function
(implemented in hardware):
- The
Memory Management Unit (MMU) is the
device that
implements this
mapping function
|
|

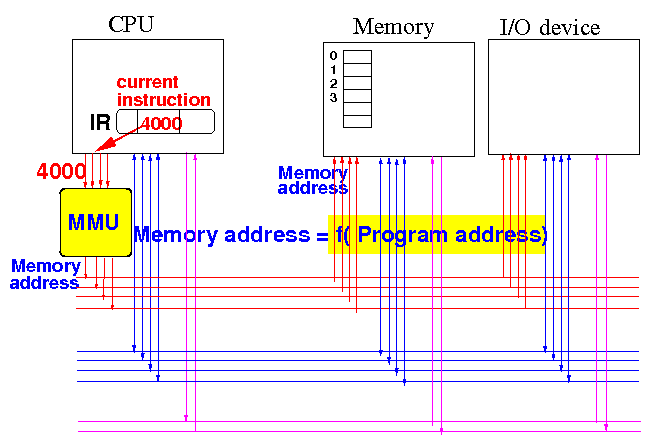

Example of the
Virtual Memory technique
- The CPU
executes
the
current instruction and
suppose
the instruction
needs to use
a
variable in the
program location
4000:
|
Example of the
Virtual Memory technique
- The execution
of the
current instruction will
cause the CPU to
fetch the
variable at
program address 4000:
|

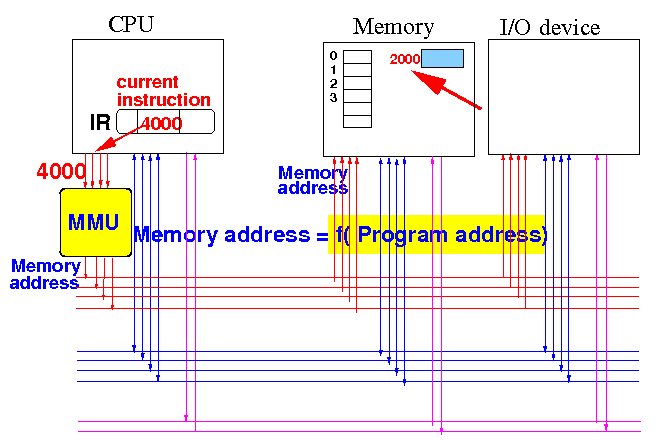

Example of the
Virtual Memory technique
- Suppose this
variable is
stored in
memory at
memory address 2000:
|

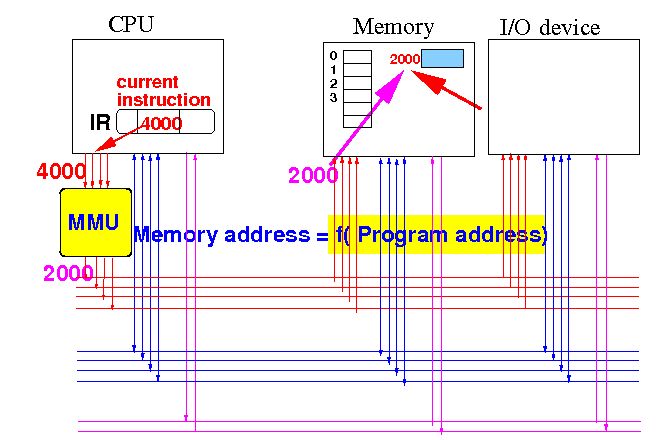

Example of the
Virtual Memory technique
- The MMU
will (must)
map the
program address 4000
to
memory address 2000
so that the
CPU can
retrieve the
correct value from
memory:
|

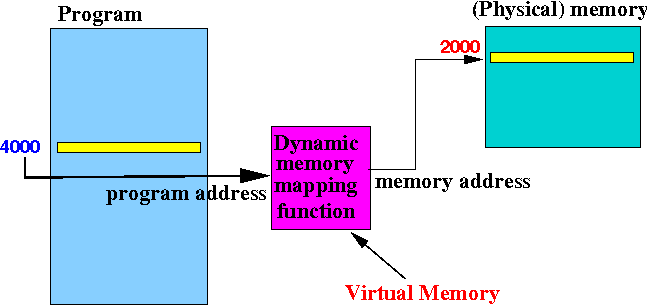

Summary of the
Virtual Memory technique
- Items in a
computer program are
identified by
a
program address
- Memory cells in the
computer memory are
identified by
a
memory address
- A program can be
placed in
memory
in an
arbitrary location
- In order to
find
program items
stored
in memory
using
a program address, we must
use a
dynamic (time-varying)
mapping function
- The
dynamic (time-varying)
mapping function
known as
the Virtual Memory technique
|
❮
❯
