- Block in a
Direct-Mapped cache:
- One block = the whole cache !!!
Example:
- The memory is
partitioned into:
- block size that are equal to the size of the Direct-mapped cache.
- Example:
- Suppose we
have a Direct-Mapped cache with
8 entries
(each entry contains
an 32 bits (4 bytes) value:
Then the memory is partitioned in the following manner:
Note:
- A block has 8 entries
- Each entry has
4 bytes
- So:
- Each block has 8 × 4 = 32 bytes !!!
- The first 32 bytes is block 0
- The second 32 bytes is block 1
- And so on.
- Suppose we
have a Direct-Mapped cache with
8 entries
(each entry contains
an 32 bits (4 bytes) value:
- Restriction (rule):
- The first
transfer unit (= 32 bits, or 4 bytes)
in any block
must be:
- cached in the first entry in the Direct-mapped cache
- The second
transfer unit (= 32 bits, or 4 bytes)
in any block
must be:
- cached in the second entry in the Direct-mapped cache
- And so on

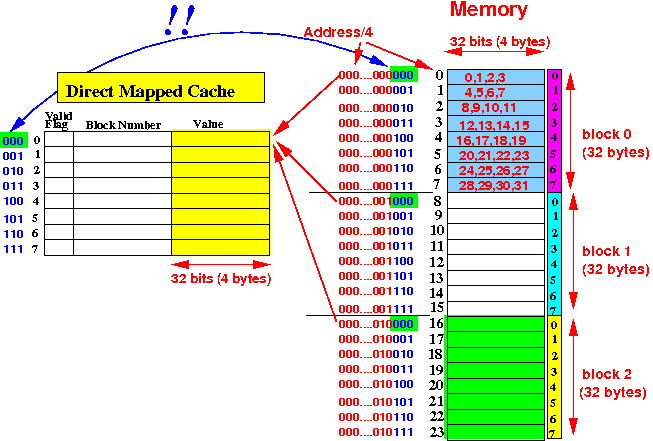

Graphically:
- The first
transfer unit (= 32 bits, or 4 bytes)
in any block
must be:
- Example of the content of
an
Direct-Mapped cache:
- Example of
decoding the
information stored in
an Associative Cache:
- Consider the highlighted entry:
- The entry in the slot is
valid:
So it contains correct value stored in memory
- The block number is
block 0 in
memory:
- According to the
Direct-Mapped Rule,
the entry
must
be this one:
- Consider the highlighted entry:
- Another example of
decoding the
information stored in
an Associative Cache:
- Consider the highlighted entry:
- The entry in the slot is
valid:
So it contains correct value stored in memory
- The block number is
block 2 in
memory:
- According to the
Direct-Mapped Rule,
the entry
must
be this one:
- Consider the highlighted entry:
- You need to write the addresses
out in binary to
see the association:
Observation:
- Since we cache
4 bytes in
a cache entry,
we need to
divide the
address by
4 to
obtain a "word" address first
- I have written out the
Address/4 values
both in
binary and
decimal in the
above figure
(You can find the Address/4 values at the center of the figure)
- Since we cache
4 bytes in
a cache entry,
we need to
divide the
address by
4 to
obtain a "word" address first
- You can see the block number is
here:
Conclussion:
- If we have
8 (= 23) entries,
then:
- Block number = (Address/4) / 8
- If we have
8 (= 23) entries,
then:
- Furthermore, the
last 3 bits
of the value
"Address/4"
(if we have
8 (= 23) entries
in the cache)
indicates:
- The entry in the Direct-Mapped cache used to stored the value
Graphically:
Conclussion:
- If we have
8 (= 23) entries,
then:
- Block number = (Address/4) % 8
- Suppose the
content of an
Direct-Mapped Cache is:
Note:
- The size of a block = 8 (entries) × 4 = 32 bytes !!!
- The CPU now
makes a read request for the
byte at memory address 10
Question:
- Is this byte found in the cache ?
- Answer:
- We first compute the
"word" address:
"Word" address = Byte address/4 = 10/4 = 2
- The
block# is
equal to:
2/8 = 0 (because we have 8 entries in cache)
- The location of the
entry in the cache
used to store the
value is:
Location = 2 % 8 = 2
- Now look at the
location 2 in
the cache:
At location 2 we find the block # = 0 (and entry is valid), so:
- The value is stored in the cache !!!
- We first compute the
"word" address:
- Summary
- CPU
makes a read request
for the content at
some
memory location (memory address)
- We first
compute the "word" address:
"word" address = (byte) address / 4
- We compute the
location:
Location = "word" address % n (if we have n entries in cache)
- We also compute the
block#:
Block# = "word" address / n (if we have n entries in cache)
- If the entry at
Location in
the cache contains
the Block#
(and the entry if
valid), then:
- We have a cache hit
Otherwise:
- We have a cache miss
- CPU
makes a read request
for the content at
some
memory location (memory address)
- Fact:
- Computer addresses are expressed in
binary inside the
computer
(Each bit is carried by a copper wire on the computer mother board)
- Computer addresses are expressed in
binary inside the
computer
- The following figure shows:
that:
- Block number is
obtained from a
(memory) address by:
- Taking away the last (2+3) bits from the memory address
2 bits to get the value address/4
Then 3 more bits because there are 8 = 23 entries in the cache
- Location used in the Direct-Mapped cache = bit positions 5,4,3 from the end
- Block number is
obtained from a
(memory) address by:
- Therefore:
- The following diagram
is the logic used to
check if
an arbitrary entry in
an Direct-Mapped cache contains
the requested value:
Depicted logic:
- The block number requested by the
CPU is
equal to
the block number stored in the
cache entry at the
location given
- And the cache entry must be valid
- The block number requested by the
CPU is
equal to
the block number stored in the
cache entry at the
location given
- The architecture of
an Associative cache is
as follows:
Explanation:
- Each MUX will
select:
- Valid bit
- Block number
- Value
at the Location entry in the Direct-Mapped cache
- The Block# at the
Location entry
in the Direct-Mapped cache is
compared to
the block# requested by the
CPU
- If these block#'s are equal and the valid bit is 1, we have a cache hit
- Each MUX will
select:
- Strength:
cheap
- The Direct-Mapped cache uses only uses 1 compare circuit !!!
- Weakness:
inflexible
- A given word (= 4 bytes) in memory must be stored in one specific entry in the Direct-Mapped cache
