Construct a circuit that has 4 inputs and 3 outputs, the 4 inputs represents two 2-bit binary numbers and the 3 outputs represents the value that is equal to sum of the input numbers.
Let us denote the inputs as a1 a0 b1 and b0, the outputs as z2, z1 and z0:
a1 | a0 | b1 | b0 |   | z2 | z1 | z0 |
---|---|---|---|---|---|---|---|
- | - | - | - | + | - | - | - |
0 | 0 | 0 | 0 |   | 0 | 0 | 0 |
0 | 0 | 0 | 1 |   | 0 | 0 | 1 |
0 | 0 | 1 | 0 |   | 0 | 1 | 0 |
0 | 0 | 1 | 1 |   | 0 | 1 | 1 |
0 | 1 | 0 | 0 |   | 0 | 0 | 1 |
0 | 1 | 0 | 1 |   | 0 | 1 | 0 |
0 | 1 | 1 | 0 |   | 0 | 1 | 1 |
0 | 1 | 1 | 1 |   | 1 | 0 | 0 |
1 | 0 | 0 | 0 |   | 0 | 1 | 0 |
1 | 0 | 0 | 1 |   | 0 | 1 | 1 |
1 | 0 | 1 | 0 |   | 1 | 0 | 0 |
1 | 0 | 1 | 1 |   | 1 | 0 | 1 |
1 | 1 | 0 | 0 |   | 0 | 1 | 1 |
1 | 1 | 0 | 1 |   | 1 | 0 | 0 |
1 | 1 | 1 | 0 |   | 1 | 0 | 1 |
1 | 1 | 1 | 1 |   | 1 | 1 | 0 |
The circuit file 2-bit-adder was written using the table above, not using the circuit diagram.

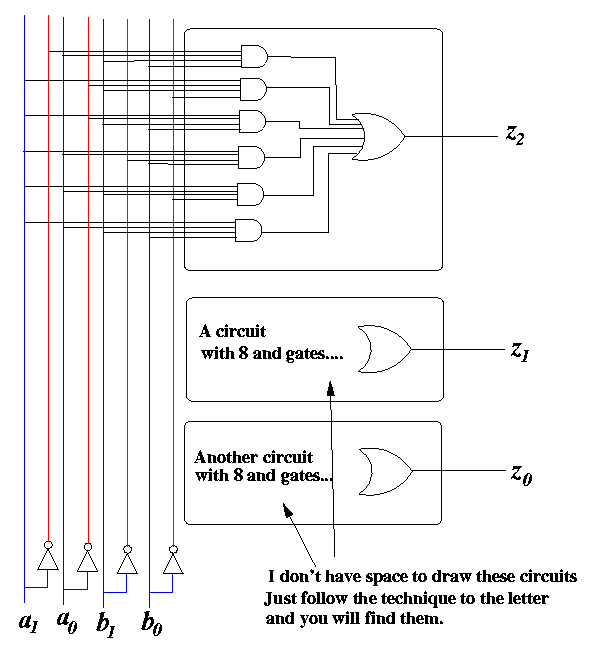

I only use the circuit diagram to show you how things are connected.
For obvious reasons, the answers to test questions about circuit design will be a circuit diagram and I will not accept logic-sim programs as answer on tests !
