We can design a multiply circuit based on binary multiplication:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------












Multiply the multiplicant by the 1st bit of the multiplier:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------
                 1  0  1  1  (= 1 AND (1 0 1 1))











This multiplication can be accomplished using a series of AND gates !!!

Multiply the multiplicant by the 2nd bit of the multiplier:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------
                 1  0  1  1
              0  0  0  0     (= 0 AND (1 0 1 1))










This multiplication can be accomplished using (another series of) AND gates !!!

Then add the results together using a series of full adders:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------
                 1  0  1  1
    +         0  0  0  0  0
    -----------------------
          (C) 0  1  0  1  1  (C = possible carry)








Note that we do not need to add the last trailing 0 ! (We can omit them)

Then multiply the multiplicant by the 3rd bit of the multiplier:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------
                 1  0  1  1
    +         0  0  0  0  0
    -----------------------
          (C) 0  1  0  1  1
           0  0  0  0          (= 0 AND (1 0 1 1))







This multiplication can be accomplished using a 3rd series of AND gates

Then add the previous sum and the new result together:

                 1  0  1  1         multiplicant
              x  1  0  0  1         multiplier
    -----------------------
                 1  0  1  1
    +         0  0  0  0
    -----------------------
          (C) 0  1  0  1  1
    +      0  0  0  0  0  0
    -----------------------
       (C) 0  0  1  0  1  1   (C = possible carry)


    And so on !!


Note that we do not need to add the 2 trailing 0's in the new result !

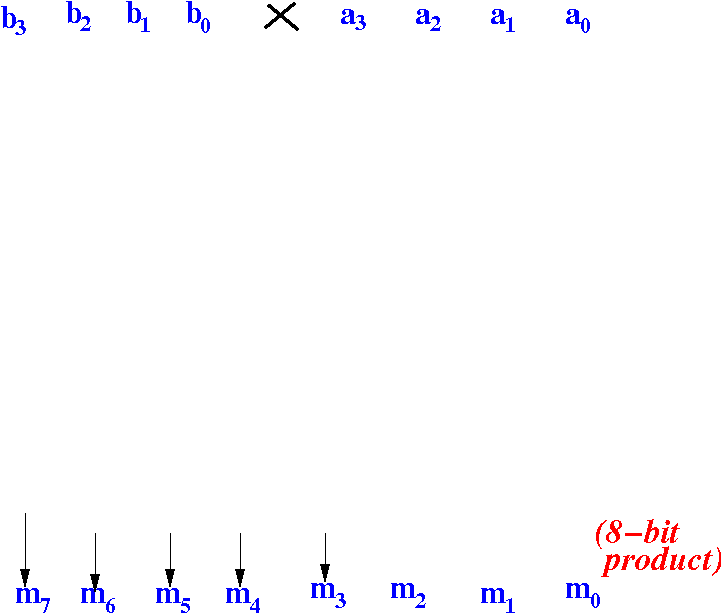

The input bin numbers are b₃b₂b₁b₀ and a₃a₂a₁a₀ and the output is ( m₇m₆..m₁m₀):

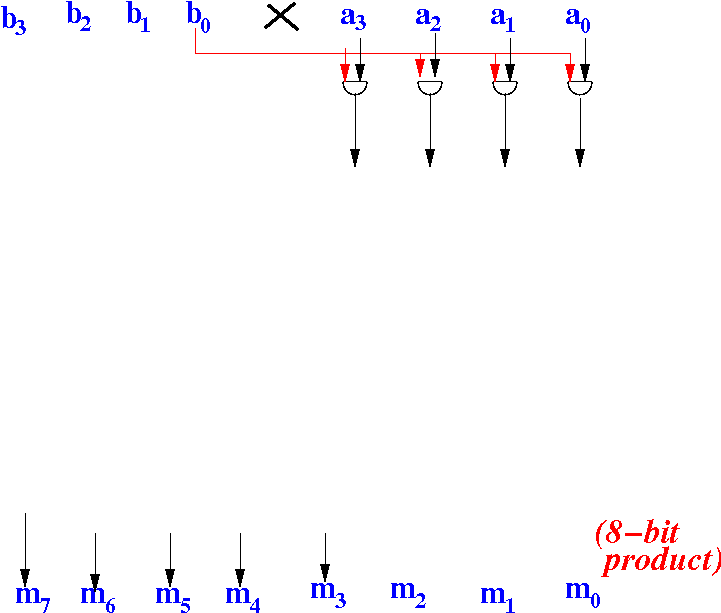

Multiply the multiplicant (a₃a₂a₁a₀) by the 1st bit (b₀) of the multiplier:

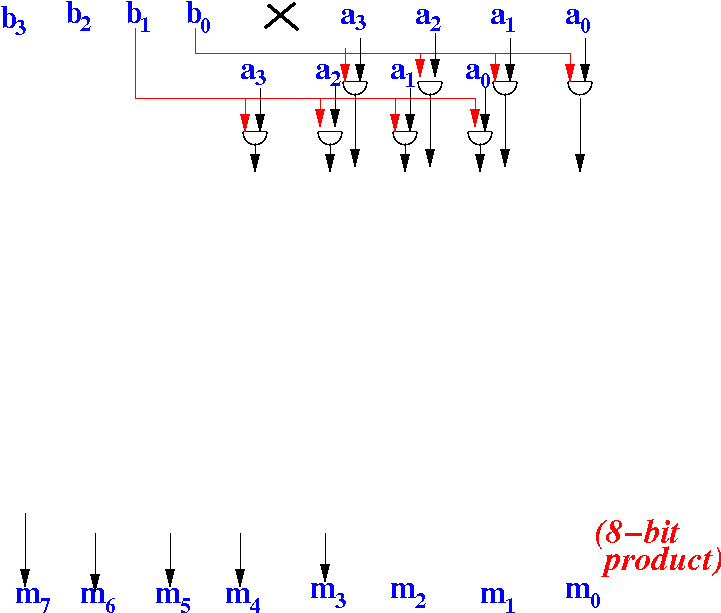

Multiply the multiplicant (a₃a₂a₁a₀) by the 2nd bit (b₁) of the multiplier:

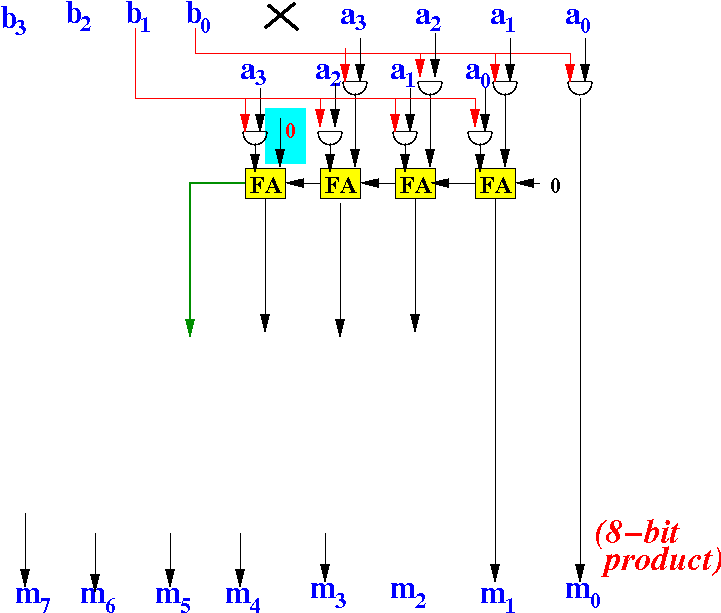

Add the result together    (note: we need to use an additional 0 bit):

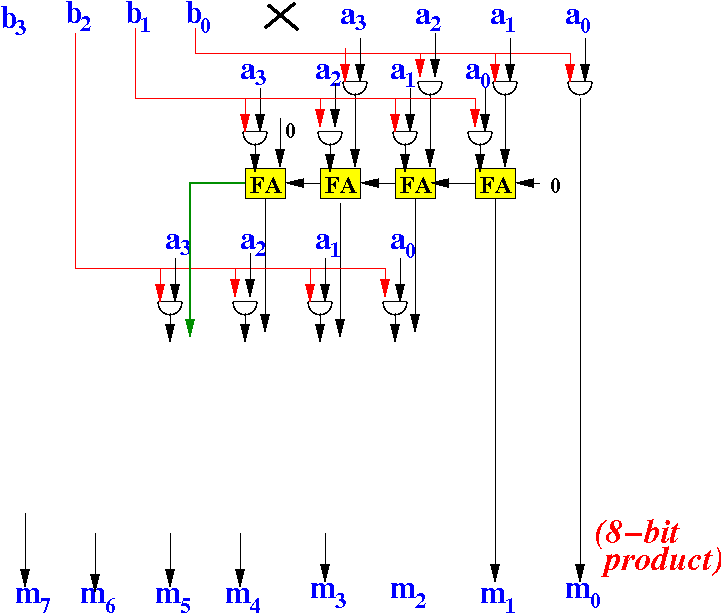

Multiply the multiplicant (a₃a₂a₁a₀) by the 3rd bit (b₂) of the multiplier:

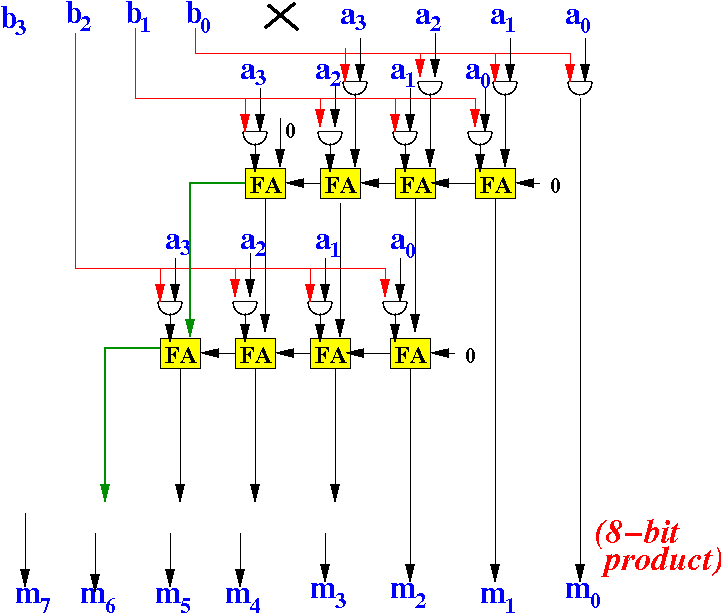

Add the result together (note: the carry output of the last addition is the 4th bit input):

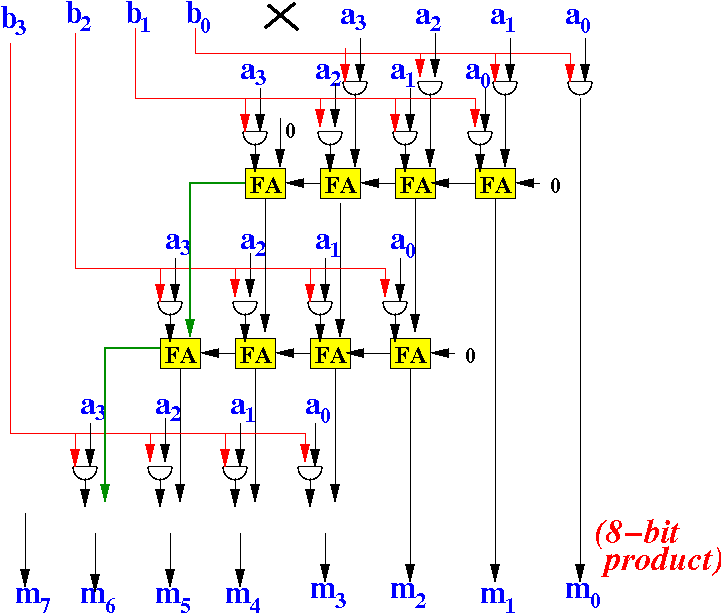

Multiply the multiplicant (a₃a₂a₁a₀) by the 4th bit (b₃) of the multiplier:

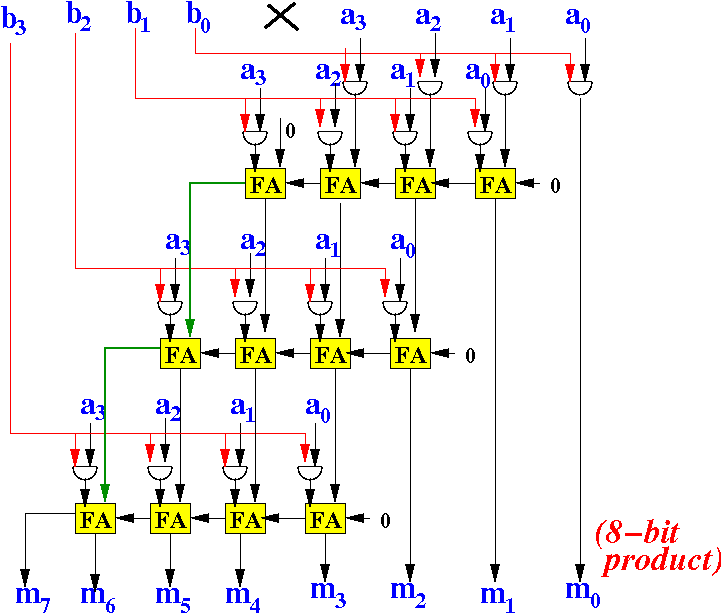

Add the result together (note: the carry output of the last addition is the 4th bit input):
