Summary/overview of the swtching circuits between
registers and ALU

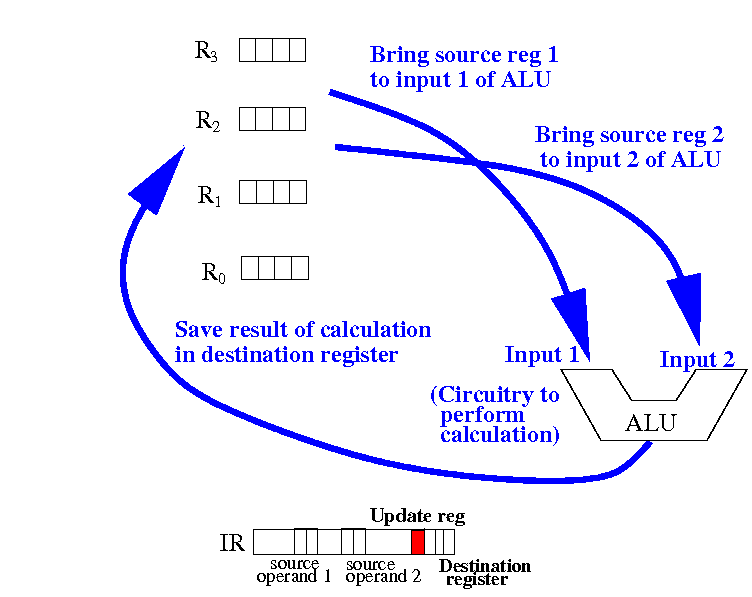

We have studied the following switching (forwarding) problems:
Summary/overview of the swtching circuits between
registers and ALU

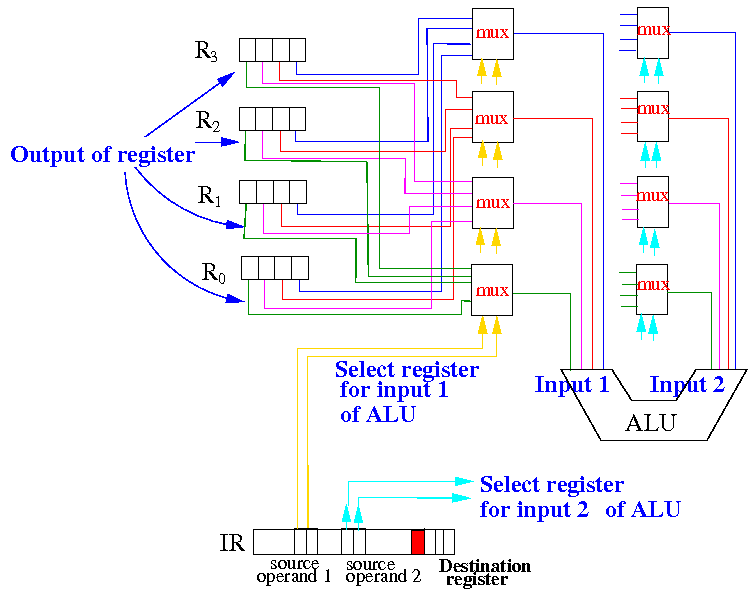

Multiplexors can be used to switch registers outputs to the inputs of the ALU:
Summary/overview of the swtching circuits between
registers and ALU

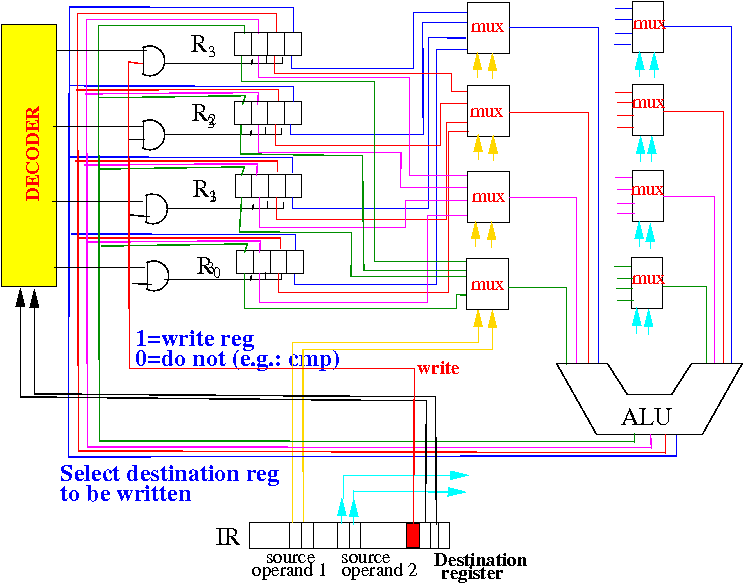

One decoder is used select the destination register to be updated:
