- Consider the following
function invocation:
/* ------------------------------------------------------- sumRange(A,a,b): returns (A[a] + A[a+1] + ... + A[b-1]) ------------------------------------------------------- */ int sumRange(int[] A, int a, int b ) { int i, s; s = 0; for (i = a, i < b; i++) s = s + A[i]; return(s); } void main( ) { int[] A = {11,12,13,14,15,16,17,18,19,20}; int x, y, z; z = sumRange(A, x, y); }Important note: how to pass an array to a function
- An array is
passed by
passing the
base address of
the array
Because if we know the base address of an array, we can find all elements in the array
- An array is
passed by
passing the
base address of
the array

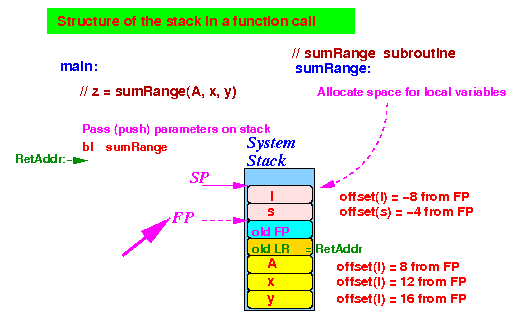

- We will pass the parameters
and allocate the local variables
as follows
using the system stack:
We will use register r0 to pass the return value back to the caller
- Using the
agreed registers,
the main( ) method
will pass the
parameters x and y
and
use the return value
as follows
(illustrtated in assembler code):
// Java statement: sum = sumRange(A, a, b): /* ------------------------------------------------- Pass 3nd parameter value b using the stack ------------------------------------------------- */ movw r0, #:lower16:b movt r0, #:upper16:b ldr r0, [r0] push {r0} /* ------------------------------------------------- Pass 2nd parameter value a using the stack ------------------------------------------------- */ movw r0, #:lower16:a movt r0, #:upper16:a ldr r0, [r0] push {r0} /* ------------------------------------------------------- Pass 1st parameter address of array A using the stack ------------------------------------------------------- */ movw r0, #:lower16:A movt r0, #:upper16:A push {r0} /* ----------------------------------------------------------------
call sum = sumRange(A, a, b)
agreed inputs: r0 = addr of array A, r1 = a, r2 = b
agreed return: r0 = return value
---------------------------------------------------------------- */
bl sumRange
add sp, sp, #12 // Clean up the 3 int parameters off the stack
/* -----------------------------------------------------------------
Save return value (in r0) to variable sum (sum = sumRange(..))
----------------------------------------------------------------- */
movw r1, #:lower16:sum // Do NOT use r0 !!!
movt r1, #:upper16:sum // (Because r0 contains the return value)
str r0, [r1] // This will store return value in sum
Important note:
- When the sumRange
function retruns,
the 3 parameters that were
pushed will
still be
on the stack !!!
Therefore: the caller function must clean up the pushed parameters when the function returns !!!
- When the sumRange
function retruns,
the 3 parameters that were
pushed will
still be
on the stack !!!
- The sumRange( ) method
will first save the
register LR and FP
on the stack
and
allocate 2 local variables
as follows
(illustrtated in assembler code):
/* ---------------------------------------------------------------- Function sumRange(a,b): agreed inputs: A, a, b on stack agreed return: r0 = return value Unused registers: r0, r1, r2, r3, r4, r5, r6, r7, r8, r9, r10 Use stack to store local vars Body of sumRange(A,a,b): s = 0; for (i = a, i < b; i++) s = s + A[i]; return(s); ---------------------------------------------------------------- */ sumRange: // When sumRange begins, we will have the parameters on the stack:
/* ==========================================================
Function Prelude: complete the stack frame structure
========================================================== */
push {lr} // Save LR (return address)
push {fp} // Save FP (used by caller)
mov fp, sp // Mark the stack top location before
// allocating any local variables
sub sp, sp, #8 // Allocate 2 int variables on the stack
/* ===============================================
We completed the stack frame
Now we can write the function body
=============================================== */
// s = 0
mov r0, #0 // offset(local var s) = -4 from FP
str r0, [fp, #-4] // s = 0
// i = a
ldr r0, [fp, #12] // offset(param a) = 12 from FP
str r0, [fp, #-8] // offset(loca var i) = -8 from FP
while: // while (i < b)
//// Get i into r0
ldr r0, [fp, #-8] // offset(local var i) = -8 from FP
//// Get b into r1
ldr r1, [fp, #16] // offset(b) = 16 from FP
//// Check for (i < b)
cmp r0, r1 // r0 = i, r1 = b
bge whileEnd // Exit while loop if FALSE
// s = s + A[i];
///// get A[i] into r10
ldr r0, [fp, #8] // r0 = addr of array A
ldr r1, [fp, #-8] // r1 = i
add r1, r1, r1 // r1 = 2*i
add r1, r1, r1 // r1 = 4*i = offset used to access A[i]
ldr r10, [r0, r1] // r10 = A[i] (r0=A(base), r1=offset)
///// get s into r0
ldr r0, [fp, #-4] // r0 = s
///// compute s + A[i]
add r0, r0, r10 // r0 = s + A[i]
///// Save sum in memory variable s
str r0, [fp, #-4] // s = s + A[i]
// i++
ldr r0, [fp, #-8] // r0 = i
add r0, r0, #1 // r0 = i+1
str r0, [fp, #-8] // i = i+1
b while // End of while body - loop back !!
whileEnd:
// return(s)
//// Put the return value in the agreed register (r0)
ldr r0, [fp, #-4] // r0=s
/* =============================================================
Function Postlude: de-allocate local variable and restore FP
============================================================= */
mov sp, fp // De-allocate local variables
pop {fp} // Restore fp
pop {pc} // Return to the caller
- Example Program:
(Demo above code)
- Prog file: /home/cs255001/demo/asm/8-sub/stack1.s
How to run the program:
- To compile: as255 stack1
- To run: use EGTAPI
