Using (the value stored in) a simple memory variable

Problem description

To understand what's going on, I like to give you a little background first - because you may not know this when you are writting programs in a high level programming language (such as Java).
Fact 1:

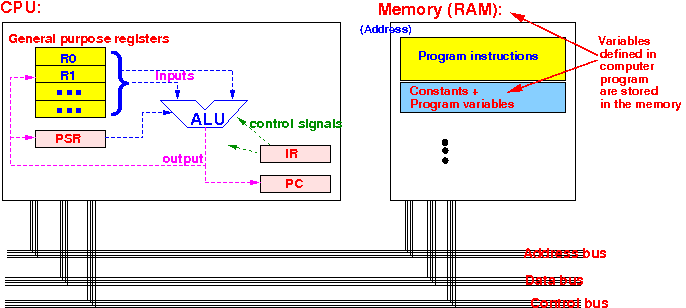

Fact 2:

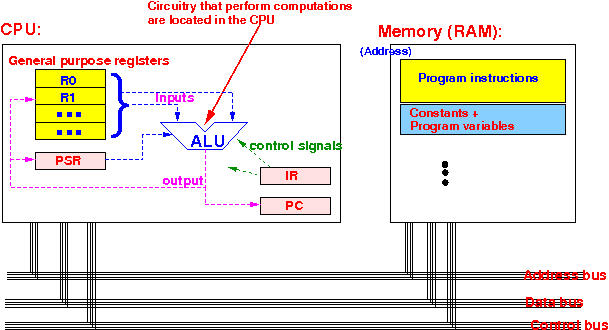

The computer memory cannot perform computations (calculations)

Therefore: in order to perform computations using the values in program (that are stored in memory):

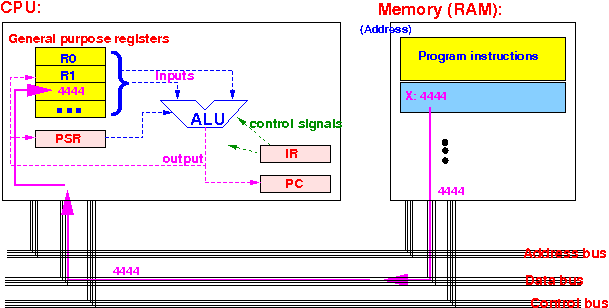

We must be first transfer the value stored in a memory variable to a register inside the CPU:
Notice that the register contains a copy of the value in the memory variable !!!

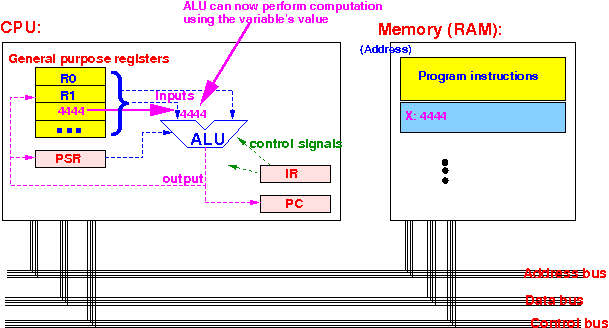

Then, we use the register (copy value) in the computation:

Principle of accessing data stored in the computer memory

Principle

access data

computer memory

We can access (= read or write) data stored in computer memory if we know:

Applying this principle is the most challenging part in assembler programming because:

You often need to find (= compute) the (starting) address
You must know exactly how many bytes of memory is used to store the data !!!

It's very easy to make programming mistakes in accessing data in memory when you write assembler programs...

Moving values stored in computer memory into a register

To support different data types in a high level programming language, a processor will provide different instructions to move values between the CPU and memory:

There will be an instruction to move byte typed values consisting of 1 byte
There will be an instruction to move short typed values consisting of 2 bytes
There will be an instruction to move int and float typed values consisting of 4 bytes
Some processors may have an instruction to move long and double typed values consisting of 8 bytes

Notice that moving (= copying) instruction only need to know how many bytes it needs to move (= copy) to perform correctly.

So you can use the same move instruction on data types that contains the same number of bytes

The ARM instruction that move (= copy) data from the memory into a register is called:
The Load Register instruction has (too) many different formats, and we will only learn 3 formats to save time for other more important material.

To support different data types in a high level programming language, every processor (and the ARM processor is no execption) will provide different load register instruction

The ARM processor has 3 different load register instructions:

ldr (load register (full)): moves 4 (consecutive) bytes from memory into a register ldrsh (load register half): moves 2 (consecutive) bytes from memory into a register and sign extends the 16 bits (= 2 bytes) representation into a 32 bits (int) representation ldrsb (load register byte): moves 1 byte from memory into a register and sign extends the 8 bits representation into a 32 bits (int) representation

I will now present the most basic format of the load register instruction that will be used (discussed soon) to move values stored in simple variables into a register in the CPU.

Syntax and meaning of the basic form of the load register instruction is:

Syntax Meaning of the instruction ---------------- -------------------------------------------------- ldr r_N, [r_M] Load 4 bytes from memory at the address given in r_M into the (destination) register r_N The 4 bytes are stored in the register as follows: ldrsh r_N, [r_M] Load 2 bytes from memory at the address given in r_M into the (destination) register r_N AND fill the left half of register with the sign bit The 2 bytes are stored at the right and then sign extended to 32 bits: ldrsb r_N, [r_M] Load 1 byte from memory at the address given in r_M into the (destination) register r_N AND fill the left 3/4 of register with the sign bit The byte is stored at the right and then sign extended to 32 bits:

The reason that we sign-extend a byte and a short is obvious:

All (integer) arithmetic operations are performed in the int data type (see: click here )
The ldrsb and the ldrsh instructions convert the byte and short representations to an int representation so that the arithmetic operation(s) can be performed with the int representation for better accuracy !!!

Example:

Suppose r0 contains the value 4000 (decimal)
(Remember that register r0 contains a binary number, what I mean is: the binary number in register r0 represents the decimal value 4000)

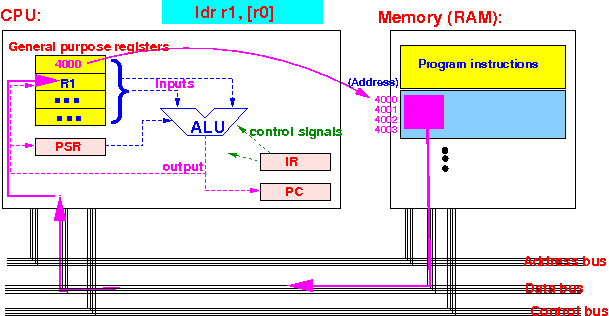

The instruction ldr r1,[r0] will:
In picture:

Moving the value stored in a program variable in computer memory into a register

Before we can use the ldr instruction to move the value stored in a program variable into a register, we must first:

Move the address of the desired program variable into some register (e.g., in r0 or r1)
You must use a register that is "free", i.e.: the register does not contain any value that is needed in future operations

Note:

Register "management" is an integral part of assembler programming
You must learn to manage (coordinate the usage) of the limited number of registers inside the CPU
That's why you need to know how many registers a processor has and their names !!!
Maybe it's time for you to check up on the registers in the ARM processor: click here

How to move a value stored in a memory variable into a register:

1. Move the address of the memory variable into a (free) register rX 2. Then use: ldr destreg, [rX] for an int/float typed variable ldrsh destreg, [rX] for a short typed variable ldrsb destreg, [rX] for a byte typed variable

Programming examples

Let's define 3 different typed of integer values as follows:

.data i: .4byte 444444 // int typed variable s: .2byte 2222 // short typed variable b: .byte 111 // byte typed variable

The following instructions will move the int typed (4 bytes) in variable i into the register r1:

// Move i into r1 movw r0, #:lower16:i // Moves the address of memory movt r0, #:upper16:i // variable i into register r0 ldr r1,[r0] // Move int representation in var into r1

The following instructions will move the short typed (2 bytes) in variable s into the register r2:

// Move s into r2 movw r0, #:lower16:s // Moves the address of memory movt r0, #:upper16:s // variable s into register r0 ldrsh r2,[r0] // Move short representation in var into r2 // and sign-extend into an int representation

And the following instructions will move the byte typed (1 byte) in variable b into the register r3:

// Move b into r3 movw r0, #:lower16:b // Moves the address of memory movt r0, #:upper16:b // variable b into register r0 ldrsb r3,[r0] // Move byte representation in var into r3 // and sign-extend into an int representation

Example Program: (Demo above code)
- Prog file: /home/cs255001/demo/asm/2-mov/ldr.s
How to run the program:
