Syntax and meaning (= effect) of the branch-and-link instruction:

  bl  label

  Effect:
        (1) Save the return address (= location) into
            the Link Register (LR)

	(2) Branch to memory location marked by
            the label "label"

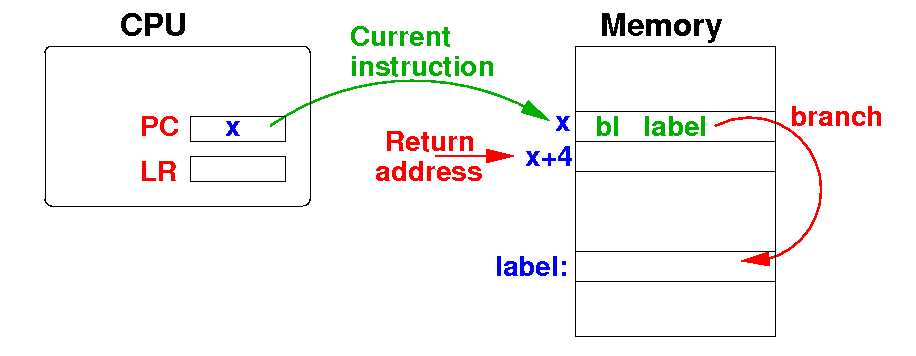

Situation before the execution of the   bl label instruction:

Syntax and meaning (= effect) of the branch-and-link instruction:

  bl  label

  Effect:
        (1) Save the return address (= location) into
            the Link Register (LR)

	(2) Branch to memory location marked by
            the label "label"

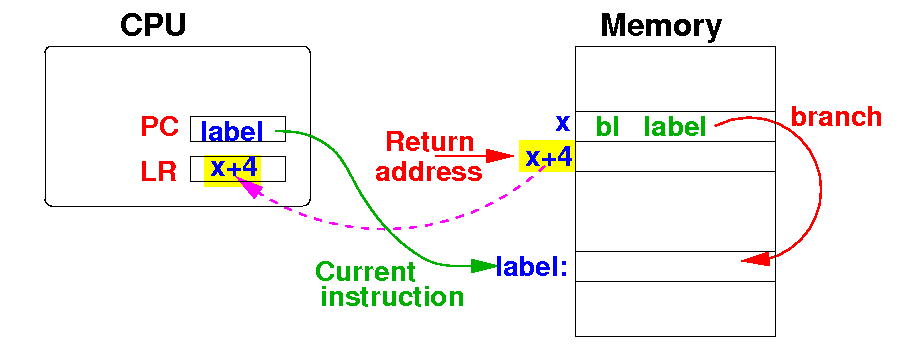

Situation after   the execution of the   bl label instruction:

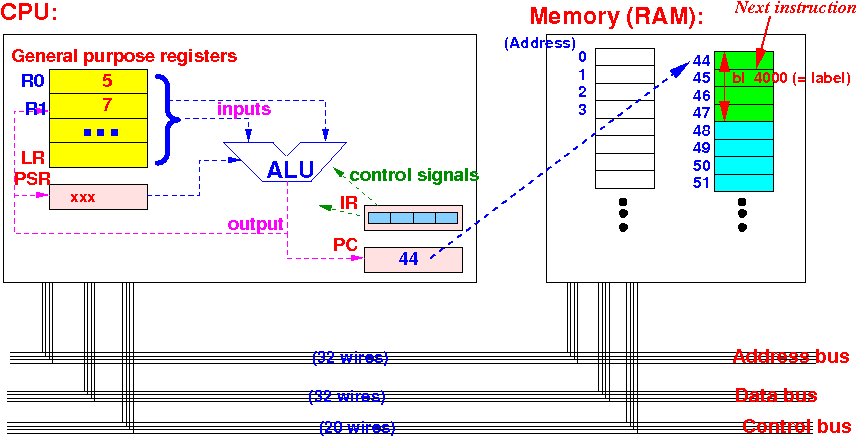

Initial state:   the CPU fetches the bl 4000 (= label) instruction at address 44:

Note:   the return address = 48 because each ARM instruction is 4 bytes long.

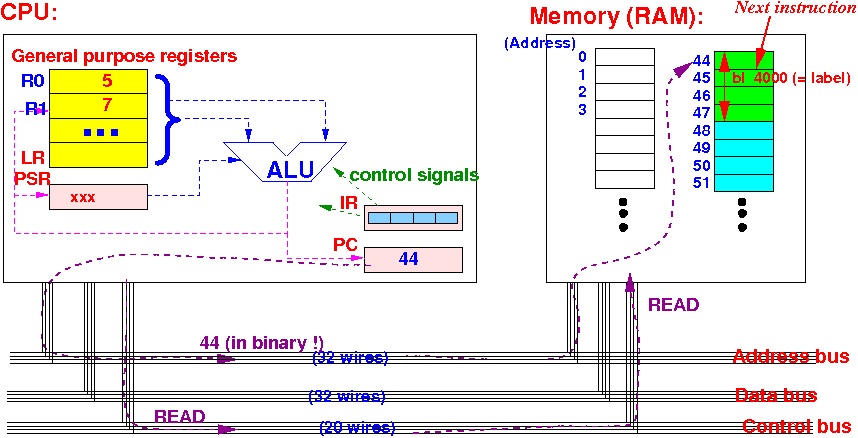

The CPU sends the READ command on the system bus:

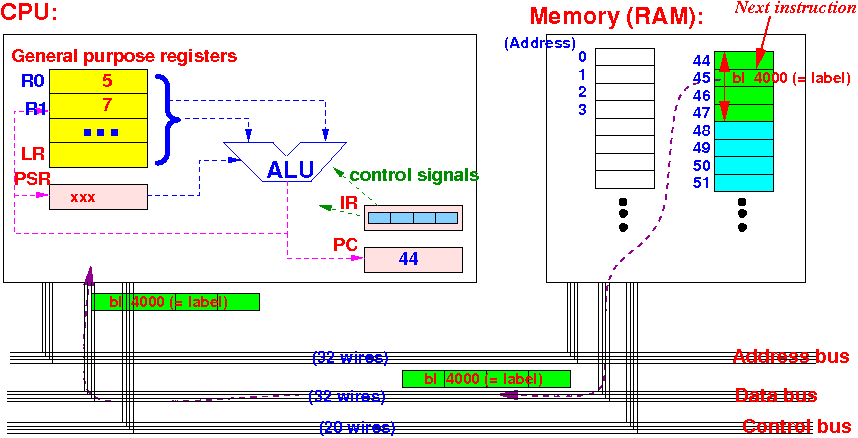

The memory returns the bl 4000 instruction to the CPU:

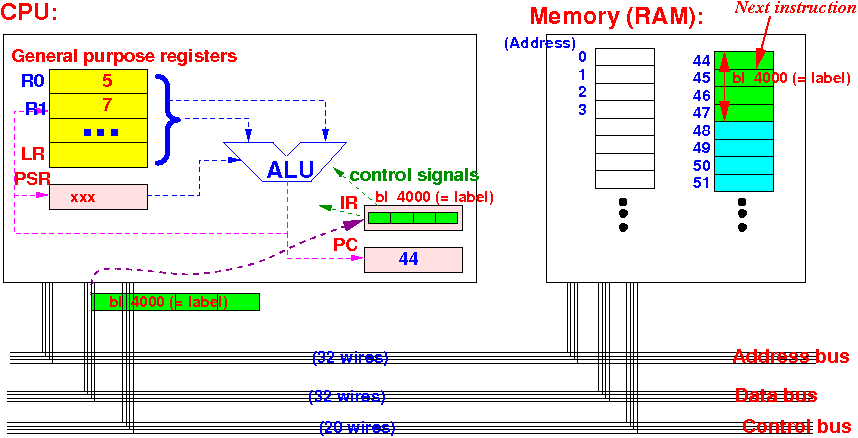

The bl 4000 instruction is stored in the Instruction Register:

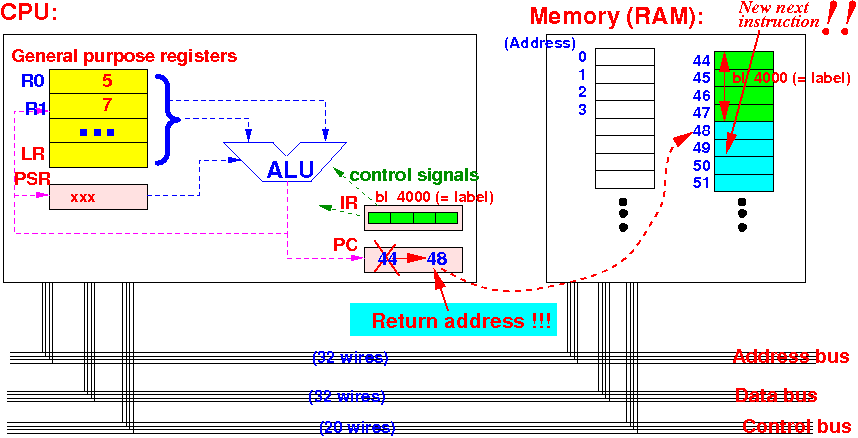

The Program Counter is incremented:

Notice that the Program Counter contains the return address !!!

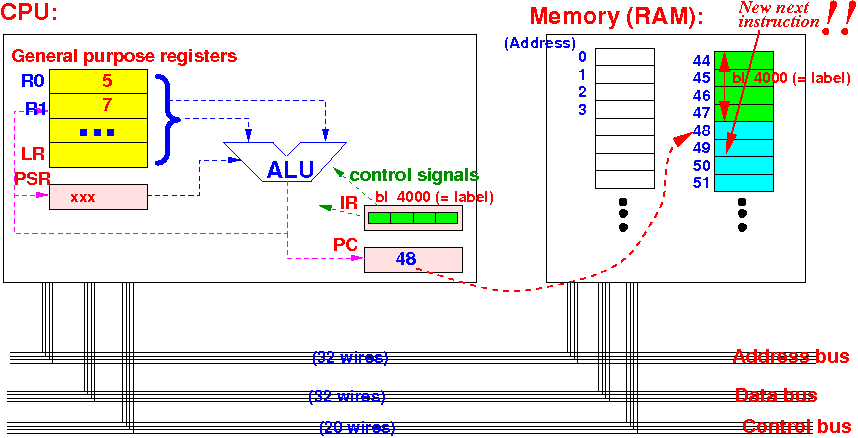

State of the CPU when it executes the   bl 4000 instruction:

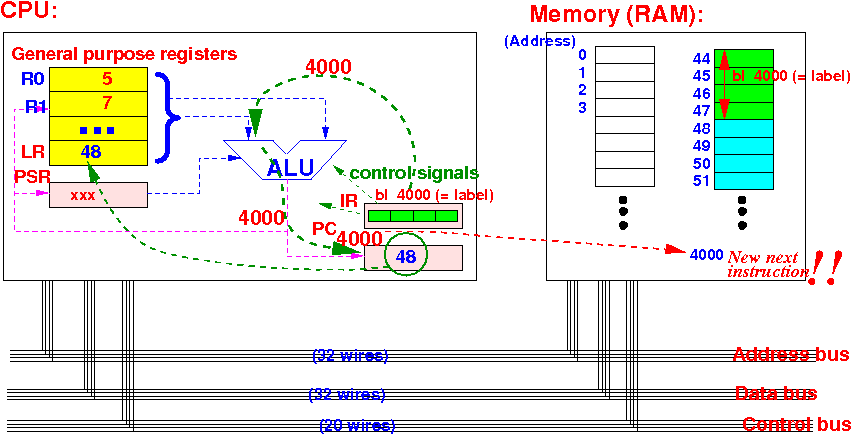

The bl instruction simulataneously updates: LR = PC and PC = 4000:

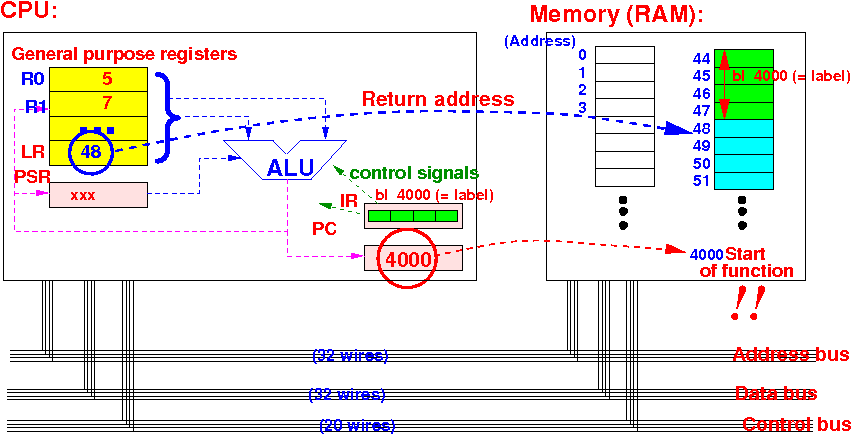

Result of executing   bl 4000 (= label):

Illsutrating the effects of the bl instruction:

main:
        mov     r0, #1111
        mov     r1, #1111
        bl      myMethod
        mov     r2, #2222
        mov     r3, #2222


myMethod:
        mov     r8, #4444
        mov     r9, #4444

DEMO:   /home/cs255001/demo/asm/8-sub/bl.s

(Next slide give you hints on what to look out for)

Illsutrating the effects of the bl instruction:

main:
        mov     r0, #1111
        mov     r1, #1111
        bl      myMethod
        mov     r2, #2222
        mov     r3, #2222


myMethod:
        mov     r8, #4444
        mov     r9, #4444

When the CPU executes bl myMethod, look for:
