Removing an item at the end of the linked list

The effect of removeLast() --- removing an item at the end of a linked list:

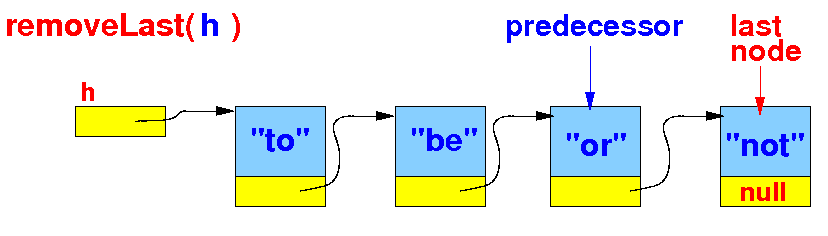

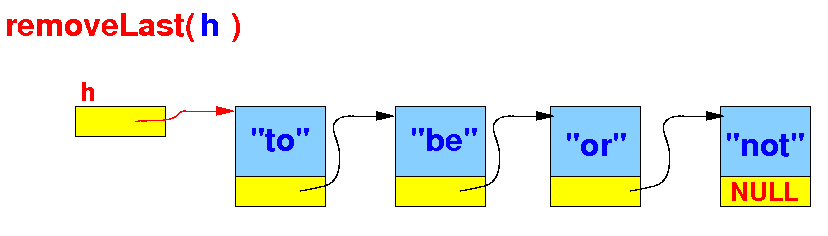

Example: the linked list before the removal of the last node:

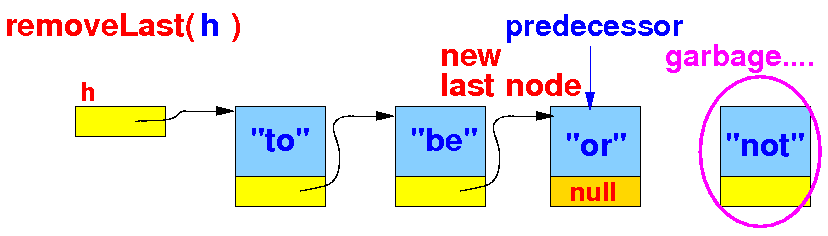

The linked list after the removal of the last node:

Remove at end algorithm:

(1) Find the predecesor node of the last node (2) Unlink the last node from its predecesor node (3) De-allocate the deleted node (4) Return the new first node of the list

Classic algorithm to find the last node

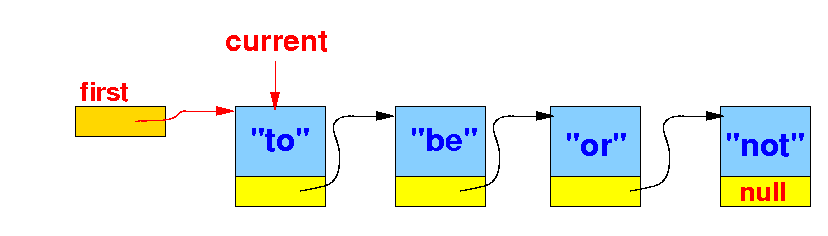

The list traversal algorithm for finding the last node:

The algorithm to find the last node is as follows:

struct Node *current = first; while ( current->next != NULL ) // Find last list element { current = current->next; } // current points to the last node

Algorithm to find the predecessor of the last node

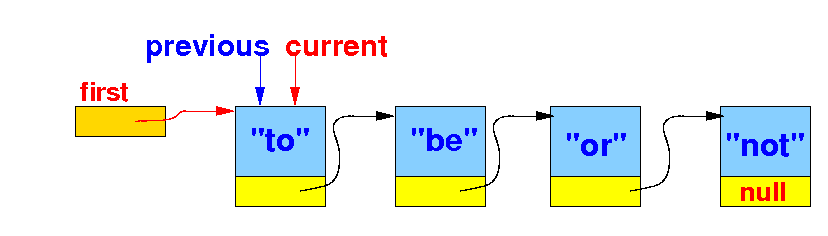

The list traversal algorithm for finding the predecessor node of the last node:

The algorithm to find the predecessor of the last node is as follows:

struct Node *previous = first; struct Node *current = first; while ( current->next != NULL ) // Find last list element { previous = current; // Keep track of the previous node current = current->next; } // previous points to the predecessor node of last node // current points to the last node

Implementation of removeLast( )

Let's implement the removeLast( ) method:

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

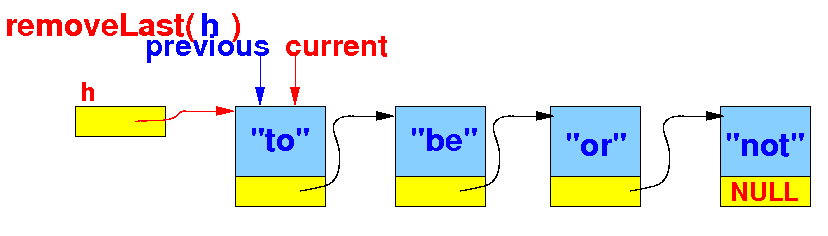

Start the search at the first node:

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

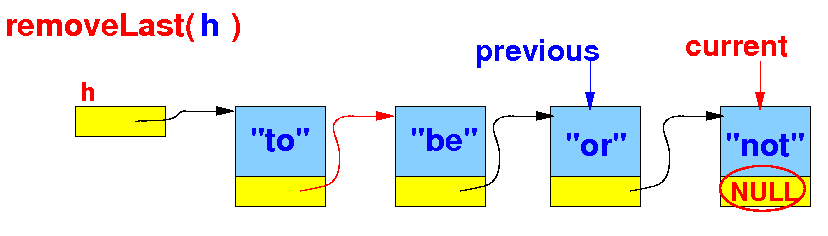

Find the last node while remembering its previous node:

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

Unlink the last node from the previous node:

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

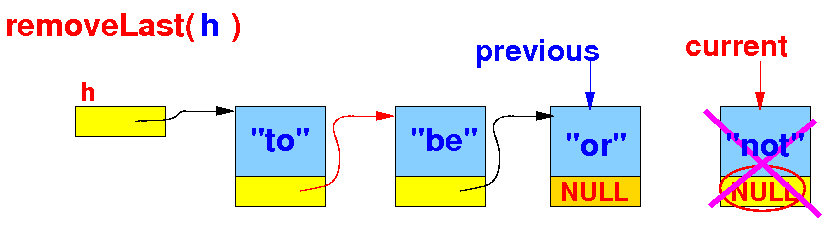

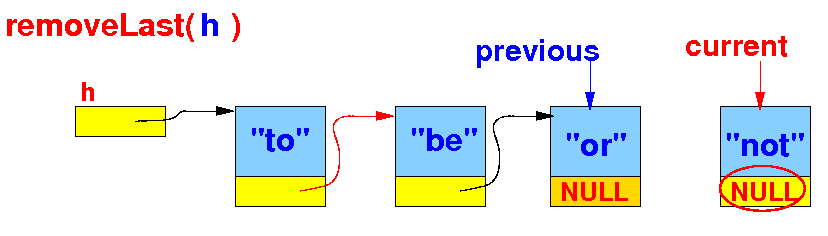

De-allocate the deleted node:

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

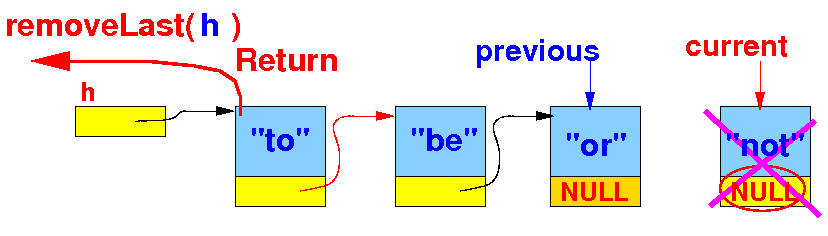

Return the reference of the new first node: (in this case, we re-affirm h);

// Delete the node at the end of this list struct Node *removeLast( ) { // General case (take care of edge cases later) struct Node *current = h; struct Node *previous = h; while( current->next != NULL ) // Find the last node { previous = current; current = current->next; // Advance to next node } previous->next = NULL; // Unlink the last node (from its predecessor) free(current); // De-allocate deleted node return h; // Return (confirm first node was unchanged) }

Implementation of removeLast( )

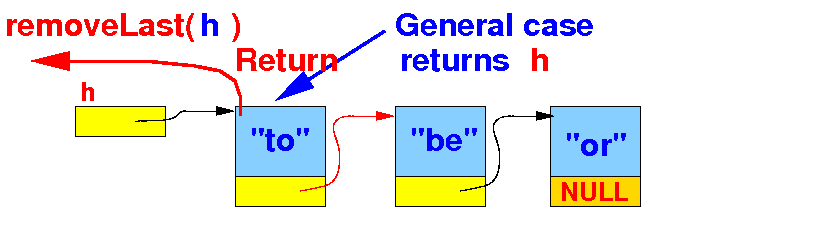

Check for edge cases.... ( Note:: the general case returns a value h ≠ NULL)

// Delete the node at the end of this list struct Node *removeLast( ) { // Detect and handle edge cases if ( h == NULL ) return NULL; // Return NULL if ( h->next == NULL ) { free(h); // De-allocated deleted node return NULL; // Return NULL } // General case The general case returns h != NULL }

Implementation of removeLast( )

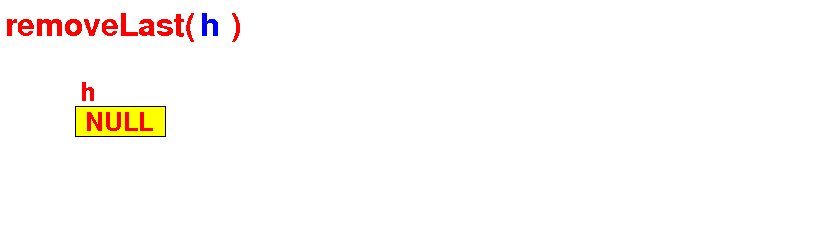

Edge case 1: empty list.... the resulting list of removeLast() is the empty list

// Delete the node at the end of this list struct Node *removeLast( ) { // Detect and handle edge cases if ( h == NULL ) // Edge case 1: the empty list return NULL; // Return the empty list if ( h->next == NULL ) { free(h); // De-allocated deleted node return NULL; // Return NULL } // General case The general case returns h != NULL }

Implementation of removeLast( )

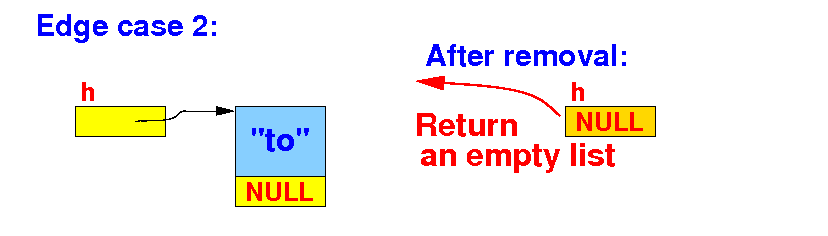

Edge case 2: list with a single element ---> removal results in an empty list

// Delete the node at the end of this list struct Node *removeLast( ) { // Detect and handle edge cases if ( h == NULL ) // Edge case 1: the empty list return NULL; // Return the empty list if ( h->next == NULL )// Edge case 2: the "nearly" empty list { free(h); // De-allocated deleted node return NULL; // Return the empty list } // General case The general case returns h != NULL }

DEMO: demo/C/Linked-list/removeLast.c

Study advise I gave in CS171...

Important note:

There are many kinds of linked lists
(We have only been working with one kind !)
There are many different operations on a linked list
It's futile to memorize the different algorithms

There is a common principle in all the algorithms:

Know/understand what result you want/need to achieve
Know/understand how to to achieve the result

How to to achieve the result that you want/need:

Traverse the linked list to the proper node that contain the link that needs to be updated
Modify the link and make it point to the correct node
