- Cost of owning a car:
- Right now, you have a car
- A car will last 10 years
- It cost $20,000
- $60,000 question:
- How much does it cost to own a car ??? (
- Approach 1: the
worst case cost
- Use the current car for
10 years
- Then paid $20,000 to buy another car
- Use the current car for
10 years
- Approach 2: the
average cost
- Use the current car for the next
10 years
- Every year, put (pay) $2,000
in the bank
- After 10 year, use the money to buy a car....
- Use the current car for the next
10 years
- Stack implemented using an array:
public void push(E obj) { /* ------------------------------- Check if stack is full ------------------------------- */ if ( t == S.length() - 1 ) { /* ----------------------------------- Stack full: double the stack space ------------------------------------ */ A = (E[]) new Object[S.length() * 2]; // 2 x space for ( i = 0; i <= S.length() - 1; i++ ) A[i] = S[i]; // Copy old array over S = A; // Set new array } /* --------------------------- The actual push operation --------------------------- */ ++t; // Next element S[t] = obj; // Store it }
- Question:
- What is the cost (in terms of the number of copy operations) of a push operation when the stack contains n items ?
- Worst case cost
of a push() operation:
- A push operation
may cause the
array size to double
if n == S.length()
- If this happens, there will be
n copy operations
to re-populate the new stack
- And 1 copy operation
to save the new item
- Worst case cost of a (one) push operation:
- n+1 copy operations
(However, the worst case happens rarely !!!)
- A push operation
may cause the
array size to double
if n == S.length()
- Average cost of a
push() operation:
- Consider k consecutive
push operations:
Initial array size = 1 |_|
push(1) |1| 1 push(2) |1| |1|_| 1 Double array |1|2| 1 push(3) |1|2| |1|2|_|_| 2 Double array |1|2|3|_| 1 push(4) |1|2|3|4| push(5) |1|2|3|4| |1|2|3|4|_|_|_|_| 4 Double array |1|2|3|4|5|_|_|_| 1 push(5) |1|2|3|4|5|6|_|_| 1 And so on...
- The number of copy operation
incurred
in k consecutive
push operations:
item: 1 2 3 4 5 6 7 8 9 10 # copy for k push ops = 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + 1 + .... + 1 + 2 + 4 + 8 ... = k + 1 + 2 + 4 + ... + lg(k) ≤ k + 1 + 2 + 4 + ... + kLet: S = 1 + 2 + 4 + .... + k 2×S = 2 + 4 + .... + k + 2×k - ---------------------------------------------- -S = 1 - 2×k Or: S = 2×k - 1
Therefore: # copy for k push ops ≤ k + 2×k - 1 ≤ 3×k
- Average number of copy operations
incurred in one
push operation:
3×k Avg. # copy operation per push op ≤ ------ k ≤ 3 !!!
Conclusion:
- Average cost (running time) of a push() operation = O(1) !!!
- Consider k consecutive
push operations:
- The banker's model
is piecemeal approach to perform a
amortization analysis
of an operation
- Illustration using the
push() operation:
- Most push() operation
cost 1 copy operation
But some push operations cost much more than 1 copy operation
- We
amortize the cost
of the more expensive
push operation onto
every push operation
as follows:
- "Pay" the
1 copy operation cost
for the ordinary push
operation
- "Tag on"
2 more copy operation cost
for each push operation
to "pay"
for the
more expensive push operation
when it happens
- Total cost for each push() operation = 3 copy operations
- "Pay" the
1 copy operation cost
for the ordinary push
operation
- Most push() operation
cost 1 copy operation
- Claim:
- When we count the cost of a push() operation as 3 copy operations, we will always have enough saved copy operation to perform the more expensive (but rare) push operations that require array doubling
- Example:

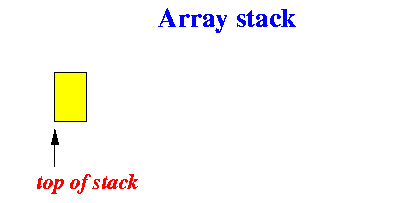

- Initial stack:

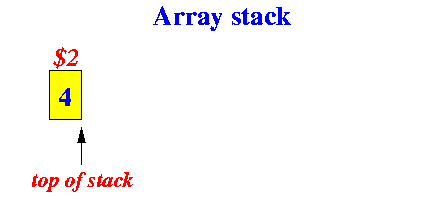

- push(4):
cost = $3 (= 3 copy operations)
1 copy operation used to perform the push(4)
2 copy operations saved

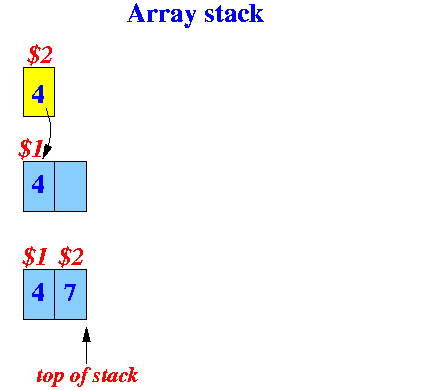

- push(7):
cost = $3 (= 3 copy operations)
Use 1 saved copy operation to perform array doubling
1 copy operation used to perform the push(7)
2 copy operations saved

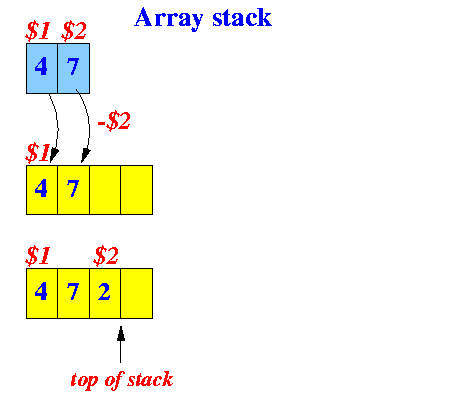

- push(2):
cost = $3 (= 3 copy operations)
Use 2 saved copy operation to perform array doubling
1 copy operation used to perform the push(2)
2 copy operations saved

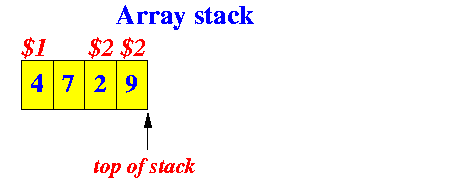

- push(9):
cost = $3 (= 3 copy operations)
1 copy operation used to perform the push(2)
2 copy operations saved

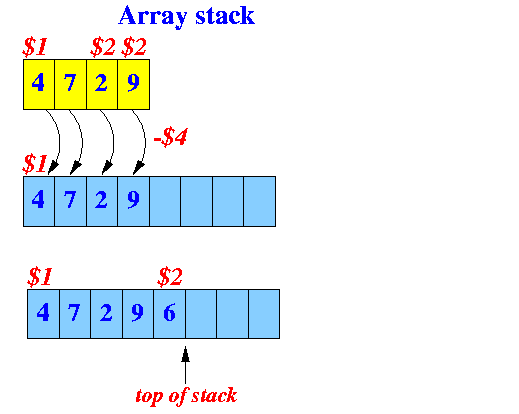

- push(6):
cost = $3 (= 3 copy operations)
Use 4 saved copy operation to perform array doubling
1 copy operation used to perform the push(6)
2 copy operations saved

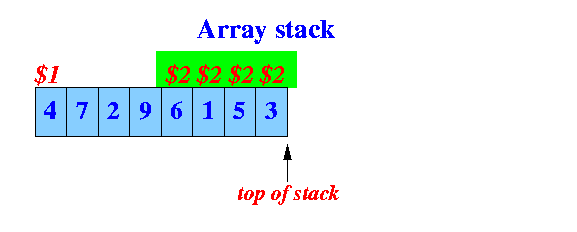

- After 3 more push() operations:
Note:
- By the time that we need to perform array doubling, the # push() operations has saved enough copy operations for the array doubling !!!
- Initial stack:
- True claim:
- When we count the cost of a push() operation as 3 copy operations, we will always have enough saved copy operation to perform the more expensive (but rare) push operations that require array doubling
Conclussion:
- The average (amortized) cost of 1 (one) push operation ≤ 3
- The amortization analysis
on the run time performance is
correct (sound) if:
- The total # saved (credit) operations in the system must always be ≥ 0
- When this property
does not hold,
there may be situations
where the
push() operation
cannot be performed
We have then under-estimated the average run time requirement !!!
