AVL Search trees: Height-balanced binary trees

---

• Height-balanced tree
  • AVL tree:

    The AVL tree was invented by G.M. Adelson-Velsky and E.M. Landis Property of the AVL tree: For every node v of the AVL tree: | height(left child) - height(right child) | ≤ 1 (If a node does not have a left child, then height(left child) = 0) (If a node does not have a right child, then height(right child) = 0)

    ---

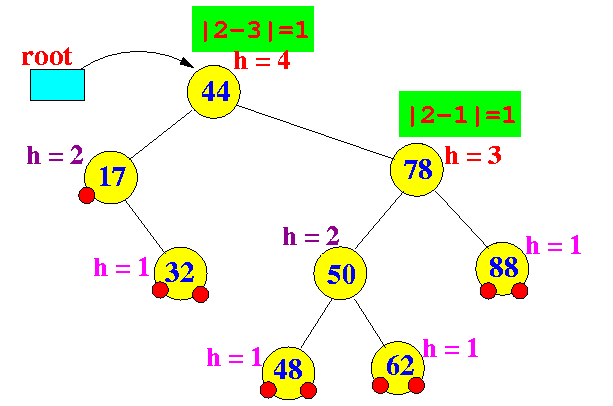

  • Example:

    ---

    ---

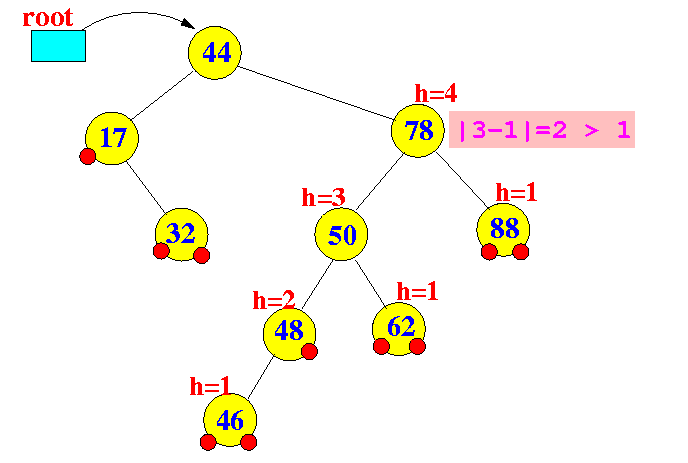

  • Counter example:

  ---

  ---

• AVL tree is a recursive structure
  • Notice that the definition of the AVL tree says every node:

    For every node v of the AVL tree: | height(left child) - height(right child) | ≤ 1

    ---

  • This means:

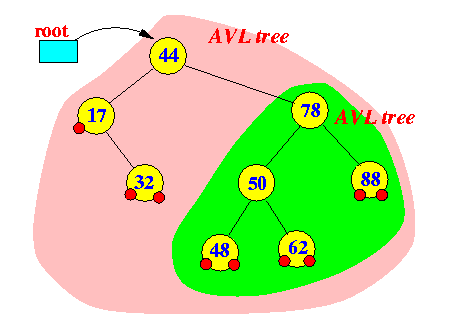

    Every subtree of an AVL tree is also an AVL tree !!!!

    Example:

  ---

  ---

• Advantages and disadvantages of AVL trees
  • Advantage:

    Better search times for keys (As we will see, the running time for a findKey(k) operation in a AVL tree is guaranteed to be O(log(n))

    ---

  • Disadvantage:

    Longer running times for the insert and remove operations (As we will see, the insert and remove operation must re-balance the AVL tree....)
