- Consider:
Problem:
- Compute the minimum cost paths from a node (e.g., node B) to any other node in the network
- Examples:

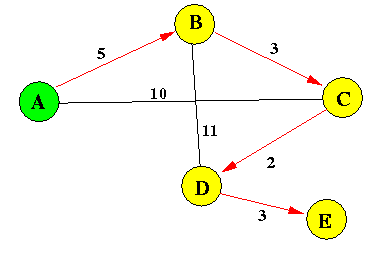

- Shortest paths from node A to
all other nodes:

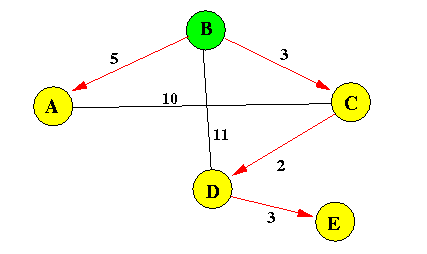

- Shortest paths from node B to
all other nodes:
- Shortest paths from node A to
all other nodes:
- Information available
to the algorithm: (distance matrix)
linkcost[i][j] = Link costs stored in an adjacency matrix
linkcost[][]: A B C D E ----+--------------------- A | - 5 10 * * * = infinite B | 5 - 3 11 * C | 10 3 - 2 * D | * 11 2 - 3 E | * * * 3 -
- Synopsis:
- The Dijkstra's algorithm
gradually builds a
short path tree
using links in the network
- Initially, the tree
contains only the source nodes
(as the root
of the tree.
- It adds one more node
in each iteration
to the minimum cost spanning tree
- The Dijkstra's algorithm
gradually builds a
short path tree
using links in the network
- Reached Set:
- It partitions the
nodes in the network into 2 sets:
- Reached set - where the
minimum cost path
to that node has been
found
- UnReached set - where the minimum cost path is not yet fixed
Initially:
- Reached set =
{ SourceNode }
- UnReached set = all the other nodes
- Reached set - where the
minimum cost path
to that node has been
found
- It partitions the
nodes in the network into 2 sets:
- Notations used in the algorithm:
- S = source node (the node performing the computation)
- N = the nodes set (all nodes)
- ReachSet = set of nodes that are reached with known minimum cost path
- D(S, n) = current minimum cost (distance) from S to node n
- Psuedo code:
/* ------------------------ Initialization ------------------------ */ ReachSet := {S} (S is the node that performs the computation) for ( all other nodes n ≠ S ) do { D(S,n) = linkcost(S,n); // Min. cost S -> n }
/* ----------------------- Find min. cost path ----------------------- */ while ( ReachSet ≠ N ) do { Let: m ∈ (N - ReachSet) that has smallest value for D(S,m) ReachSet := ReachSet ∪ {m} // shortest path to m has been found /* ------------------------------------------------------ Find possible "short cut" through m ------------------------------------------------------ */ for ( each node n ∈ (N - ReachSet) ) do { Check for possible better route to n via m: D(S,n) S <-------> n \ / \ / D(S,m) \ / linkcost(m,n) \ / \ / m D(S,m) + linkcost(m,n) < D(S,n) ??? } }
- Dijkstra's Algorithm:
/* ------------------------ Initialization step ------------------------ */ ReachSet := {S} (S is the node that performs the computation) for ( each node n in N - {S} ) do { D(S,n) := linkcost(S,n); // Min. cost S -> n Add (S,n) to candidate edges // Candidate edges may be part of shortest path }
/* ----------------------- Computation loop ----------------------- */ while ( ReachSet != N ) do { /* ----------------------------------------- Inclusion step: add a node to Reach Set ----------------------------------------- */ Find the node m in (N - ReachSet) that has smallest value for D(S,m) Output edge (x,m) to min. cost spanning tree; // Output next edge in Min Cost tree CandEdges = CandEdges - {(n,m)}; // Remove this edge from Candidate set ReachSet := ReachSet ∪ {m} /* ------------------------------------------------------ Update step: adjust min. cost to the UnReached nodes ------------------------------------------------------ */ for ( each node n in (N - ReachSet) ) do { /* ------------------------------------------------------- Pictorially: D(S,n) S <-------> n \ / \ / D(S,m) \ / linkcost(m,n) \ / m We are trying to find a "short cut" to n through m !!! -------------------------------------------------------- */ if ( D(S,m)+linkcost(m,n) < D(S,n) ) { D(S,n) = D(S,m)+linkcost(m,n); Delete (x,n) from candidate edges Add (m,n) to candidate edges // A better direction to reach n is through m... } } }

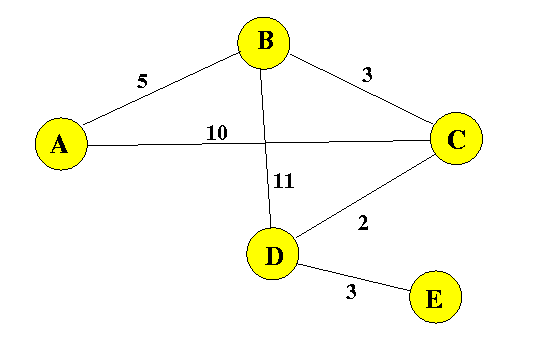

- Example network:
- Information on the graph
is represented by
the follow distance matrix:
Distance matrix To: From A B C D E ------+--------------------------------- A | * 5 10 * * B | 5 * 3 11 * C | 10 3 * 2 * D | * 11 2 * 3 E | * * * 3 *
- We will show the computation of the
shortest paths
from source node B
- Initialization step:

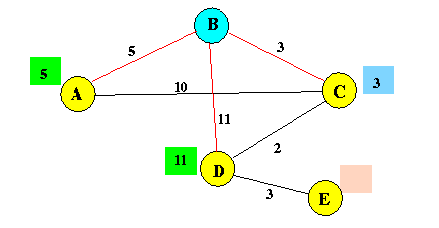

ReachSet := {B} Candidate edegs: D(B,A) = 5; (B,A) D(B,C) = 3; (B,C) D(B,D) = 11; (B,D) D(B,E) = *; (= infinite) (B,E) (It's OK to include a bogus edge)Graphically:
- Iteration 1:
- The node with the
lowest cost path is
C:
(m = C;) ReachSet := {B} ∪ {C}; // Add C to ReachSet /* ------------------------------------ We know D(B -> C) = 3 Check for better paths through C ------------------------------------ */ Candidate edges: D(B,A) = min( 5, 3 + 10) = 5; (B,A) D(B,D) = min( 11, 3 + 2) = 5;(B,D)⇒ (C,D) (better !) D(B,E) = min( *, 3 + * ) = * (B,E)

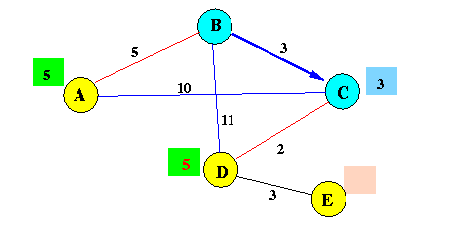

Graphically:
- The node with the
lowest cost path is
C:
- Iteration 2:
- The node with the
lowest cost path is
A
(ties broken arbitrarily):
(m = A;) ReachSet := {B,C} ∪ {A}; // Add A to ReachSet /* ------------------------------------ We know D(B -> A) = 5 Check for better paths through A ------------------------------------ */ Candidate edges: D(B,D) = min( 5, 5 + *) = 5; (C,D) (unchanged) D(B,E) = min( *, 5 + * ) = * (B,E)

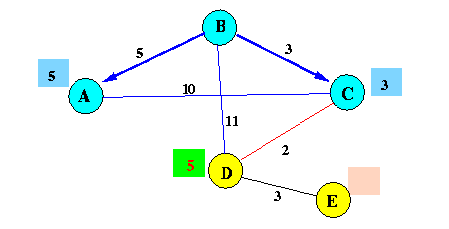

Graphically:
- The node with the
lowest cost path is
A
(ties broken arbitrarily):
- Iteration 3:
- The node with the
lowest cost path is
D:
(m = D;) ReachSet := {A,B,C} ∪ {D}; // Add D to ReachSet /* ------------------------------------ We know D(B -> D) = 5 Check for better paths through A ------------------------------------ */ Candidate edges: D(B,E) = min( *, 5 + 3 ) = 8(B,E)⇒ (D,E) (better !);

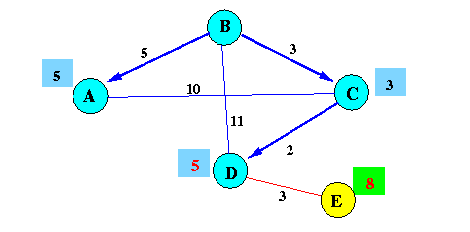

Graphically:
- The node with the
lowest cost path is
D:
- Iteration 4:
- The node with the
lowest cost path is
E:
(m = E;) ReachSet := {A,B,C,D} ∪ {E}; // Add E to ReachSet /* ------------------------------------ We know D(B -> E) = 8 Check for better paths through E ------------------------------------ */ (No more nodes to be processed...)

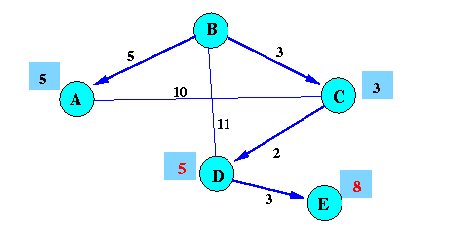

Final result:
- The node with the
lowest cost path is
E:
- ReachSet == N - Done
- Initialization step:
- Result: shortest path edges (listed in the order of inclusion)
(B,C) (B,A) (C,D) (D,E)
