Prelude to the merge sort algorithm

Consider the follow sort algorithm:

Sorting an array a[ ] of n elements: 1. split the array a[ ] into 2 halves: an array left[ ] containing a[0] .. a[n/2] an array right[ ] containing a[n/2 + 1] .. a[n-1] 2. Sort both halves of the arrays (left[ ] and right[ ]) 3. Merge the sorted arrays into the final sorted array

Dictatic note:

In this set of slides, I am presenting a simplified merge sort algorithm that uses SelectionSort( ) to sort the array portions
It's easier to understand than recursion...

Prelude to the merge sort algorithm

Example:

Sort: [6.4, 3.5, 7.5, 2.5, 8.9, 4.2, 9.2, 1.1] / \ / split into 2 halves \ / \ [6.4, 3.5, 7.5, 2.5] [8.9, 4.2, 9.2, 1.1] | | | Sort each half | (E.g.: use SelectionSort) V V [2.5, 3.5, 6.4, 7.5] [1.1, 4.2, 8.9, 9.2] \ / \ Merge sorted halves / (Use merge( ) !) \ / [1.1, 2.5, 3.5, 4.2, 6.4, 7.5, 8.9, 9.2]

Prelude to the merge sort algorithm

Example:

Sort: [6.4, 3.5, 7.5, 2.5, 8.9, 4.2, 9.2, 1.1] / \ / split into 2 halves \ / \ [6.4, 3.5, 7.5, 2.5] [8.9, 4.2, 9.2, 1.1] | | | Sort each half | (E.g.: use SelectionSort) V V [2.5, 3.5, 6.4, 7.5] [1.1, 4.2, 8.9, 9.2] \ / \ Merge sorted halves / (Use merge( ) !) \ / [1.1, 2.5, 3.5, 4.2, 6.4, 7.5, 8.9, 9.2]

Prelude to the merge sort algorithm

Example:

Sort: [6.4, 3.5, 7.5, 2.5, 8.9, 4.2, 9.2, 1.1] / \ / split into 2 halves \ / \ [6.4, 3.5, 7.5, 2.5] [8.9, 4.2, 9.2, 1.1] | | | Sort each half | (E.g.: use SelectionSort) V V [2.5, 3.5, 6.4, 7.5] [1.1, 4.2, 8.9, 9.2] \ / \ Merge sorted halves / (Use merge( ) !) \ / [1.1, 2.5, 3.5, 4.2, 6.4, 7.5, 8.9, 9.2]

Prelude to the merge sort algorithm

Example:

Sort: [6.4, 3.5, 7.5, 2.5, 8.9, 4.2, 9.2, 1.1] / \ / split into 2 halves \ / \ [6.4, 3.5, 7.5, 2.5] [8.9, 4.2, 9.2, 1.1] | | | Sort each half | (E.g.: use SelectionSort) V V [2.5, 3.5, 6.4, 7.5] [1.1, 4.2, 8.9, 9.2] \ / \ Merge sorted halves / (Use merge( ) !) \ / [1.1, 2.5, 3.5, 4.2, 6.4, 7.5, 8.9, 9.2]

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // Array of 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // Middle This is NOT the actual Merge Sort algorithm.... /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); But it is very close to the real algorithm... SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() already... }

Note: I will present an easy to understand (not recursive) version of the Merge sort algorithm

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // Middle /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() already... }

Check for the base case: if the portion that needs to be sorted has 1 element or less, we are done

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() already... }

Find the middle element: m is the index of the array element that is the middle of A[s] and A[e-1]

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() already... }

Sort the first half: in this simplified (easy to understand) version, we use the SelectionSort( ) to sort

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() already... }

Sort the 2nd half: we will again use the SelectionSort( ) to sort

A simplified merge sort algorithm

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() previously ! }

Merge the 2 sorted protions: we use the merge( ) algorithm discussed in the last set of slides

Test program for simplified mergeSort

public static void main(String[] args) { Integer[] list = {4, 3, 2, 7, 1, 5, 8, 6}; Integer[] H = new Integer[list.length]; for(int i = 0; i < list.length; i++) System.out.print(list[i] + " "); System.out.println(); MergeSort.sort(list, 0, list.length, H);; for (int i = 0; i < list.length; i++) System.out.print(list[i] + " "); System.out.println(); }

DEMO: demo/14-sort/11-merge-sort/Demo.java + MergeSort.java + SelectionSort.java

The real merge sort algorithm

The easy to understand Merge Sort algorithm uses the Selection sort algorithm to sort the array portions:

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ "Easy to understand" merge sort: (1) sort the first half of the array (2) sort the 2nd half of the array (3) merge the 2 sorted portions ------------------------------------------------ */ SelectionSort.sort(A, s, m); SelectionSort.sort(A, m, e); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() previously ! }

Because the Merge Sort algorithm can sort an array, we can use the merge sort algorithm instead !!!

The real merge sort algorithm

The real Merge Sort algorithm is a recursive (= divide and conquer) sorting algorithm:

// Merge sorts the array elements A[s] ... A[e-1] using helper array H public static <T extends Comparable<T>> void sort(T[] A, int s, int e, T[] H) { if ( e - s <= 1 ) // A[s]..A[e] has 0 or 1 element return; // No need to sort an array of 1 element... int m = (e+s)/2; // m = middle of s and e /* ------------------------------------------------ The actual merge sort: (1) sort the first half of the array using MergeSort (2) sort the 2nd half of the array using MergeSort (3) merge the 2 sorted portions ------------------------------------------------ */ MergeSort.sort(A, s, m, H); MergeSort.sort(A, m, e, H); // Merge both sorted arrays merge(A, s, m, e, H); // We have discussed merge() previously ! }

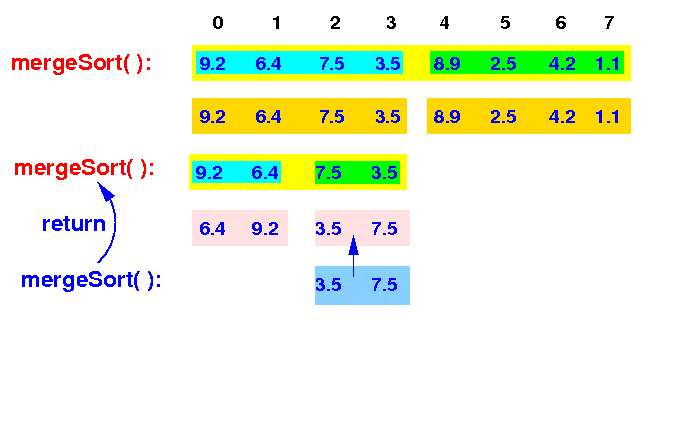

I will illustrate the recursive Merge Sort algorithm with diagrams next...
