- Divide and conquer:
- Divide the
original problem into
a number of
(smaller and easier) sub-problems
- Solve
each sub-problem
with an algorithm
(i.e., write an
algorithm for
each sub-problem)

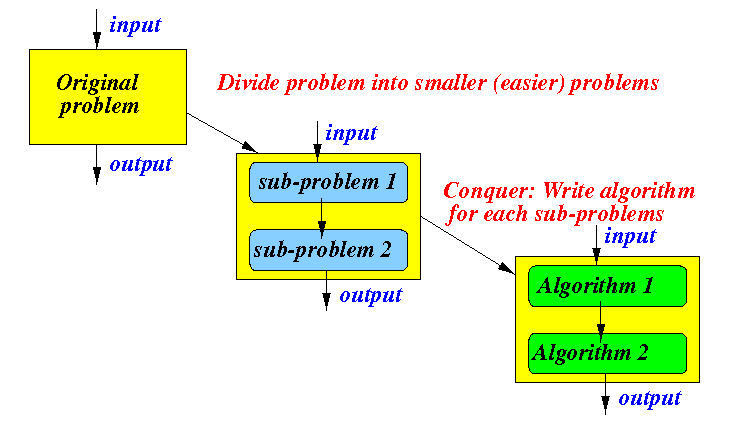

- Illustration:
- Divide the
original problem into
a number of
(smaller and easier) sub-problems
- In fact, we have just
applied this
technique to the
Text formatting problem:
- We divided
the Text Formatting problem into
3 different sub-problems
and
- We conquered each sub-problem with one (small) algorithm (written as a method)
- We divided
the Text Formatting problem into
3 different sub-problems
and
- Some problems
(especially in Mathematics)
are defined in terms
of itself
- Recursive problem = a problem that is defined with one or more smaller problems of the same kind
- Example: the factorial of the
number n
n! = n × (n − 1)! where: 0! = 1Notice that:
- The problem of computing n!
contains a
another smaller problem
((n−1)!)
of the same nature:
n! = n × (n − 1)!
- It's like a russian doll:
- The problem of computing n!
contains a
another smaller problem
((n−1)!)
of the same nature:
- Illustration:
compute factorial of 10:
10! = 10 × 9!
To compute 10!, we need to value of 9!
- We must solve another (smaller) factorial problem
- Now,
suppose
that you
know
(e.g., someone told you)
that:
9! = 362880Then, we can solve the original problem (10!) very easily:
10! = 10 × 362880 = 3628800
- The recursive property:
- Let problem X(n) denote a
certain problem
of a given size n
- A problem X(n) has the
recursive property if
- The problem X(n) can be
solved
using
the
solution of
one or more
smaller problems
X(n−1),
X(n−2), ...
- A sufficient number of
base (simple) cases of the
problem can be
solved readily.
(The number of base case solutions needed depends on how many smaller problems X(n−1), X(n−2), ... are used to solve the original problem X(n))
- The problem X(n) can be
solved
using
the
solution of
one or more
smaller problems
X(n−1),
X(n−2), ...
Example: the factorial(n) problem has the recursive property
- The problem factorial(n) can be
solved
using the
solution of
one
smaller problem
factorial(n−1)
- Because one smaller problem
is used to solve factorial(n),
we need one base case
The base (simple) case n = 0 of the factorial problem can be solved readily:
factorial(0) = 1
- Let problem X(n) denote a
certain problem
of a given size n
- The number of
base cases (already solved) needed:
- In general, if we use
the solution
for Problem(n−k)
to formulate the solution for
the original problem
Problem(n):
Problem(n) = ....... Problem(n − k)
then we need solutions for k base case.
- In general, if we use
the solution
for Problem(n−k)
to formulate the solution for
the original problem
Problem(n):
- Because there a smaller problem
of the same kind
embedded inside a
recursion problem,
there is
special divide and conquer
solution procedure
for recursive problem
I like to describe this recursive solution procedure as:
- the "lazy man's method to solve a problem....
- An un-scientific (hopefully
more understandable) way to
describe the
recursive solution method:
- If you want to solve a
problem of size n
that has the
recursive property, then:
- Hire
(or delegate)
someone else to solve
the problem of
size n − 1,
size n − 2, etc...
(You would then wait for that person to come back and give you the solution)
- When you receive the solution for the problem of size n − 1, size n − 2, etc..., you will then use these solutions to solve the original probem.
- Hire
(or delegate)
someone else to solve
the problem of
size n − 1,
size n − 2, etc...
- If you want to solve a
problem of size n
that has the
recursive property, then:
- The un-scientific way to look at
recursion
illustrated:
- Problem: compute 10!
- Solution plan:
10! = 10 × 9!
I will need 9!

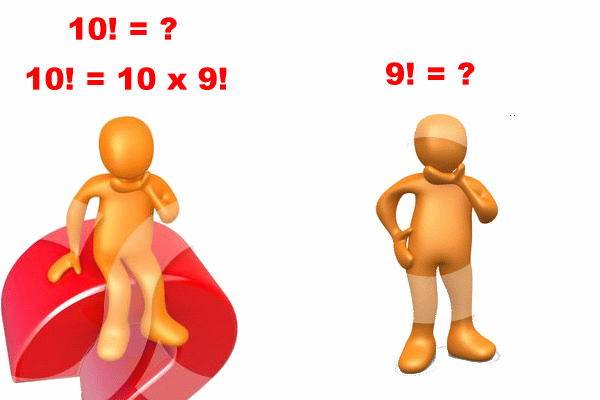

- Delegate the problem:
hire someone to
solve the smaller problem
- Wait:
in the mean time, I will wait for his answer....
- The hired hand
finds the answer:
- I get back the answer from
the hired hand:
- I can now find the answer
to my problem:
- Problem: compute 10!
- The recursive algorithm technique
can be expressed in general as follows:
ReturnType solveProblem( n ) { if ( n is one of the base cases ) { return ( the readily available solution for that base case ); } else { /* ----------------------------------------------------------- Delegate the problem: hire someone to solve a (one or more) smaller problems ------------------------------------------------------------ */ sol1 = solveProblem ( n−1 ); // n−1 < n sol2 = solveProblem ( n−2 ); // n−2 < n ... /* ----------------------------------------------------------- Use the solutions of the smaller problems n−1, n−2, ... to solve my problem: ------------------------------------------------------------ */ mySol = Solve "problem(n)" using sol1, sol1, ... return ( mySol ); } }
- Where can you use
the recursive algorithm technique ?
- The recursive algorithm technique can be used to solve problems that have the recursive property.
- Notes:
- I can only give you the
general form of the
recusive algorithm technique...
because
- Each problem with the recursive property is solved differently...
- I can only give you the
general form of the
recusive algorithm technique...
because
- Consider the above algorithm:
ReturnType solveProblem( n ) { if ( n is one of the base cases ) { return ( the readily available solution for that base case ); } else { /* ----------------------------------------------------------- Delegate the problem: hire someone to solve a (one or more) smaller problems ------------------------------------------------------------ */ sol1 = solveProblem ( n−1 ); // n−1 < n sol2 = solveProblem ( n−2 ); // n−2 < n ... /* ----------------------------------------------------------- Use the solutions of the smaller problems n−1, n−2, ... to solve my problem: ------------------------------------------------------------ */ mySol = Solve "problem(n)" using sol1, sol1, ... return ( mySol ); } }Notable fact:
- When you implement the
algorithm as a
Java method,
the resulting method will
invoke itself !!!
- We call these kind of methods: recursive methods
- When you implement the
algorithm as a
Java method,
the resulting method will
invoke itself !!!
- Definition:
- Recursive method = a method that invokes itself
We will see some recursive methods in the next few webpages.
- General procedure to develop
a
recursive problem solving algorithm
:
- Find out which
smaller problems you need to use
to solve the original problem
- Example:
factorial(n): smaller problem used = factorial(n-1)
- Example:
- Find out how to
use the solutions of
the smaller problems to
solve the original problem.
- Depending on the problem, this step can be quite challenging....
- Find the solutions for
a sufficient number of
the base cases.
Rule:
- If you used a smaller problem
Problem(n−k)
to solve the
original problem
Problem(n)
,
then you will need to find
solutions for
k base cases
Example:
- factorial(n)
uses
factorial(n-1)
,
so you will
need the solution for
1 base case
- We usually use the base case: factorial(0) = 1
- factorial(n)
uses
factorial(n-1)
,
so you will
need the solution for
1 base case
- If you used a smaller problem
Problem(n−k)
to solve the
original problem
Problem(n)
,
then you will need to find
solutions for
k base cases
Make sure that the problem has the recursive property (if the problem does not have the recursive property, then you cannot use recursion !!!)
- Find out which
smaller problems you need to use
to solve the original problem
We will now look at some examples of the recursive algorithm technique.
