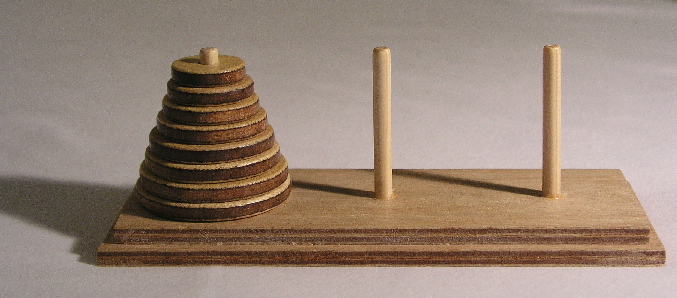

- Problem description:
- There are 3 pegs
- There are N disks
stacked on the first peg.
(The disks has a hole in the center).
Note:
- Each disk has a different diameter

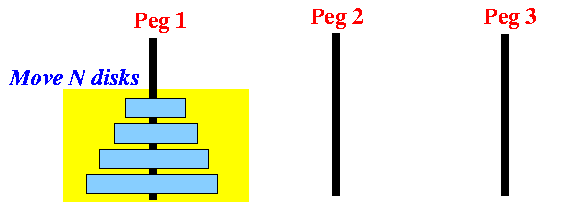

- Initially situation:
- Problem Hanoi(N):
- Move the N disks from peg 1 to peg 3
- You must obey a set of rules.
- Tower of Hanoi Rules:
- You can only
move one disk at a time
(from any peg to any other peg), and
- You may not stack a smaller disk on top of a larger disk
- You can only
move one disk at a time
(from any peg to any other peg), and
- There are 3 pegs
- See how a Tower of Hanoi of
4 disks
is solved:

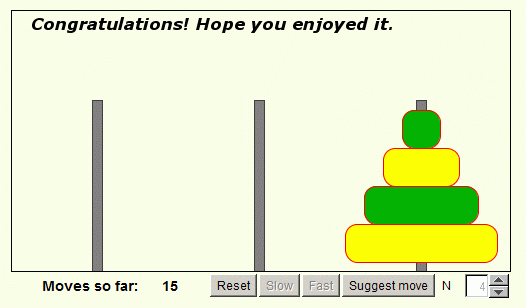

- Here is a web site with a nice
Tower of Hanoi applet
for you to try:
click here
- I have a local Hanoi applet if the above one fails to work: click here
- Problem description:
- Write a method to
obtain the steps to
solve Tower of Hanoi problem
of
moving n disks
from peg 1 to
peg 3
Example:
- Problem:
- Move 3 disks from peg 1 to peg 3
- Solution:
Move 1 disk: 1 -> 3 1 -> 2 3 -> 2 1 -> 3 2 -> 1 2 -> 3 1 -> 3
Try out the moves with this applet: click here
- Write a method to
obtain the steps to
solve Tower of Hanoi problem
of
moving n disks
from peg 1 to
peg 3
- We will first
figure out the following:
- What input information does the
algorithm need to
solve the problem.
- What output information does the algorithm need to return to the user.
In other words:
- What are the input parameters ?
- What is the return type ?
- What input information does the
algorithm need to
solve the problem.
- Input and output
information:
- We may as well select
an (appropriate) method name
to go with the input and output...
(Together, they will form the header of the Java method)
Let's pick this name:
hanoi
- What information does the
method need to
perform the task -
i.e: what are its input
parameters ?
- nDisks = the number of disks that need to be moved
- fromPeg = the identifier (index) of the peg where the disks originate
- toPeg = the identifier (index) of the peg where the disks are moved to
Example: how to express some Tower of Hanoi problems
hanoi( 10, 1, 3 ) move 10 disks from peg 1 to peg 3 hanoi( 15, 1, 3 ) move 15 disks from peg 1 to peg 3 hanoi( 15, 1, 2 ) move 15 disks from peg 1 to peg 2
- Finally, what is the
type of
the information do
you want to obtain from
the method ---
i.e. what is the return
type ?
- We want to know
how to
move the disks
- Example: how to move 3 disks
from peg 1 to peg 3:
1 -> 3 1 -> 2 3 -> 2 1 -> 3 2 -> 1 2 -> 3 1 -> 3
What is the type of this information ???
- Answer: String !!!
- The return type is String
- We want to know
how to
move the disks
- We may as well select
an (appropriate) method name
to go with the input and output...
- Header of the
method:
public static String hanoi( int nDisks, int fromPeg, int toPeg ) { .... }The meaning of the input parameters are:
- nDisks =
number of disks to move
- fromPeg =
the starting peg number
where the nDisks disks are moved
- toPeg = the destination peg number where the nDisks disks are moved
- nDisks =
number of disks to move
- Solution method:
- Because this lecture is on recursive
algorithm, you can kinda guess that the
solution will be
a recursive algorithm.
- Because this lecture is on recursive
algorithm, you can kinda guess that the
solution will be
a recursive algorithm.
- Because the Tower of Hanoi problem is
more complicated than
factorial or fibonacci,
I will follow the steps given in the
general procedure
more carefully to help you see how the solution is put together.
Here are the general step to write a recursive algorithm - summarized for your convenience:
- Find out which smaller Tower of Hanoi problems you need to use to solve the original Tower of Hanoi problem
- Find out how to use the solutions of the smaller Tower of Hanoi problems to solve the original Tower of Hanoi problem.
- Find the solutions for a sufficient number of the base cases.
- Step 1:
Identifying a
smaller Tower of Hanoi
problem within the
Tower of Hanoi problem:
- The original Tower of Hanoi
problem: move N disks

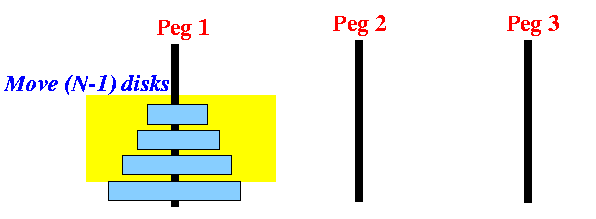

- A smaller Tower of Hanoi
problem: move N-1 disks
- The original Tower of Hanoi
problem: move N disks
- Step 2: figure out
how
to use the solution of
the smaller Tower of Hanoi (N−1 disks) problem
to solve the
original
Tower of Hanoi (N disks) problem.
- The original
Tower of Hanoi (N disks) problem:
- The effect of the
solution of
the smaller Tower of Hanoi (N−1 disks) problem
is:

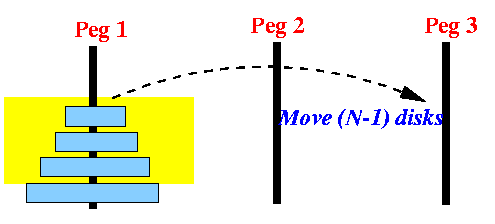

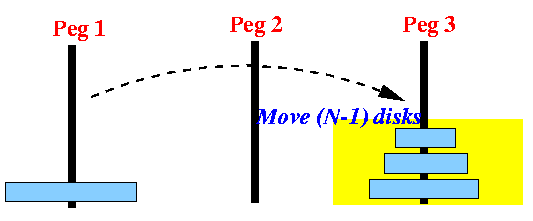

Case 1:
Before After

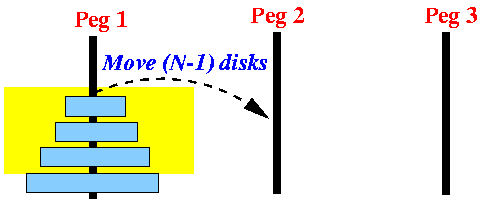

Case 2:
Before After
Think a little bit....
- How can use use the solution of case 1 or case 2 to solve the original Tower of Hanoi problem ???
- Answer:
How to use the
solution
the smaller Tower of Hanoi (N−1 disks) problem
to solve the
original
Tower of Hanoi (N disks) problem:

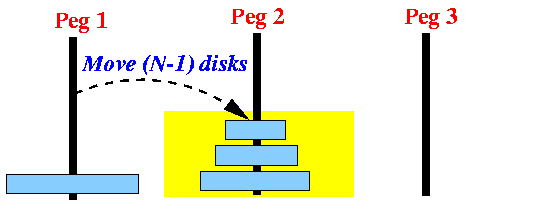

- First,
solve this
smaller Tower of Hanoi
(N−1 disks) problem:
Before After

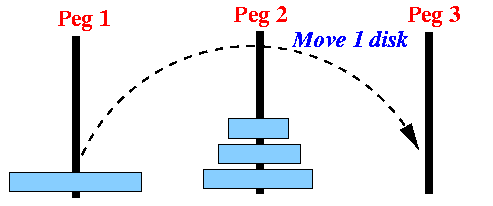

- Next:
move one disk from
peg 1 to peg 3

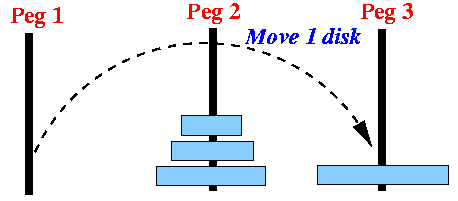

Before After

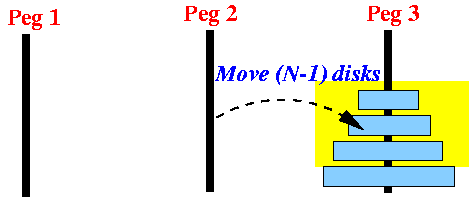

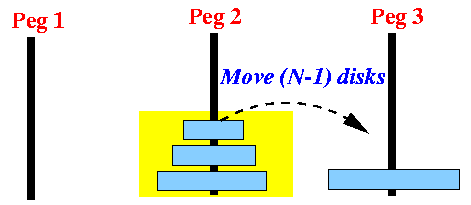

- Finally:
solve this
smaller Tower of Hanoi
(N−1 disks) problem:
Before After
- First,
solve this
smaller Tower of Hanoi
(N−1 disks) problem:
- The original
Tower of Hanoi (N disks) problem:
- Step 3:
find base cases
(we need one
base case -
because the smaller problem has the size
N−1)

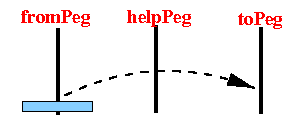

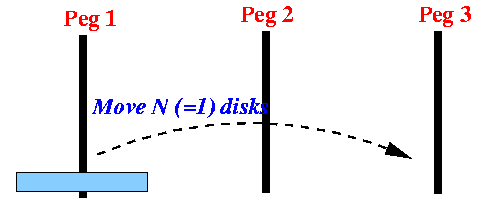

- Move stack of disks
that has 1 disk is
very easy:
- Move stack of disks
that has 1 disk is
very easy:
- Terminology:
- from peg =
the source peg in a
Tower of Hanoi problem.
- to peg =
the destination peg in a
Tower of Hanoi problem.
- help peg =
the peg in a
Tower of Hanoi problem that is
not
a source or destination peg.

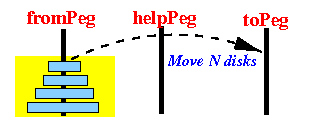

- Example:
- hanoi(n, 1, 3)
means the
Tower of Hanoi problem of moving
n disks
from peg 1
to peg 3
- The from peg = 1
- The to peg = 3
- The help peg = 2
- hanoi(n, 1, 3)
means the
Tower of Hanoi problem of moving
n disks
from peg 1
to peg 3
- from peg =
the source peg in a
Tower of Hanoi problem.
- Pseudo code:
String hanoi( int nDisks, int fromPeg, int toPeg ) { int helpPeg; if ( nDisks == 1 ) { /* ------------------------------------------------------ Solving a trivial (base case) Tower of Hanoi problem:
------------------------------------------------------ */
return( "Do this move: fromPeg --> toPeg" );
}
else
{
/* ------------------------------------------------
Solving a non-trivial Tower of Hanoi problem:
------------------------------------------------ */
/* ------------------------------------------------
Determine the helpPeg
------------------------------------------------ */
helpPeg = peg index that is not equal to fromPeg and toPeg;
/* ---------------------------------------------------
First: solve this smaller Tower of Hanoi problem:
---------------------------------------------------- */
sol1 = hanoi( nDisks-1, fromPeg, helpPeg ); // Sol1 looks like: 1 -> 3, 1 -> 2, ...
/* ---------------------------------------------------
Next: do this move
---------------------------------------------------- */
myStep = "Do this move: fromPeg --> toPeg";
/* ---------------------------------------------------
Finally: solve this smaller Tower of Hanoi problem:
---------------------------------------------------- */
sol2 = hanoi( nDisks-1, helpPeg, toPeg ); // Sol2 looks like: 1 -> 3, 1 -> 2, ...
/* ===============================================
How to use the solutions sol1 and sol2 to
solve hanoi(nDisks, fromPeg, toPeg):
1. first making the moves in sol1
2. then do myStep
3. finally, do the moves in sol2
=============================================== */
mySol = so1l + myStep + sol2; // mySol looks like: 1 -> 3, 1 -> 2, ...
return ( mySol );
}
- Java Program:
public class Recurse3 { public static String hanoi(int nDisks, int fromPeg, int toPeg) { int helpPeg; String Sol1, Sol2, MyStep, mySol; // Contains moves if ( nDisks == 1 ) { return fromPeg + " -> " + toPeg + "\n"; } else { helpPeg = 6 - fromPeg - toPeg; // Because fromPeg + helpPeg + toPeg = 6 Sol1 = hanoi(nDisks-1, fromPeg, helpPeg); MyStep = fromPeg + " -> " + toPeg + "\n"; Sol2 = hanoi(nDisks-1, helpPeg, toPeg); mySol = Sol1 + MyStep + Sol2; // + = String concatenation ! return mySol;; } }
public static void main (String[] args) { int n = 3; String StepsToSolution; StepsToSolution = hanoi(n, 1, 3); System.out.println(StepsToSolution); } }
- Example Program:
(Demo above code)
- Prog file: click here
How to run the program:
- Right click on link and
save in a scratch directory
- To compile: javac Recurse3.java
- To run: java Recurse3
- If the above is a bit abstract,
hopefully, the following concrete example
will help you understand the
Hanoi() method
better,
- Let's consider the
statements executed by
the invocation:
hanoi( 4, 1, 3 ) --- move 4 disks from peg 1 ⇒ peg 3According to the hanoi() method:
public static String hanoi(int nDisks, int fromPeg, int toPeg) { int helpPeg; String Sol1, Sol2, MyStep, mySol; // Contains moves if ( nDisks == 1 ) { return fromPeg + " -> " + toPeg + "\n"; } else { helpPeg = 6 - fromPeg - toPeg; // Because fromPeg + helpPeg + toPeg = 6 Sol1 = hanoi(nDisks-1, fromPeg, helpPeg); MyStep = fromPeg + " -> " + toPeg + "\n"; Sol2 = hanoi(nDisks-1, helpPeg, toPeg); mySol = Sol1 + MyStep + Sol2; // + = String concatenation ! return mySol;; } }the invocation will execute these statements:
helpPeg = 6 - 1 - 3 = 2; Sol1 = hanoi( 3, 1, 2 ); // Move 3 disks from peg 1 ⇒ peg 2 MyStep = "1 -> 3"; Sol2 = hanoi( 3, 2, 3 ); // Move 3 disks from peg 2 ⇒ peg 3 mySol = Sol1 + MyStep + Sol2; return mySol;
- Now, let us
run the program for
hanoi(4, 1, 3) and see
what is the output:
Output of hanoi(4,1,3): 1 -> 2 1 -> 3 2 -> 3 1 -> 2 (These are steps in Sol1 !!!) 3 -> 1 3 -> 2 1 -> 2 1 -> 3 (this is MyStep !!!) 2 -> 3 2 -> 1 3 -> 1 2 -> 3 (These are steps in Sol2 !!!) 1 -> 2 1 -> 3 2 -> 3

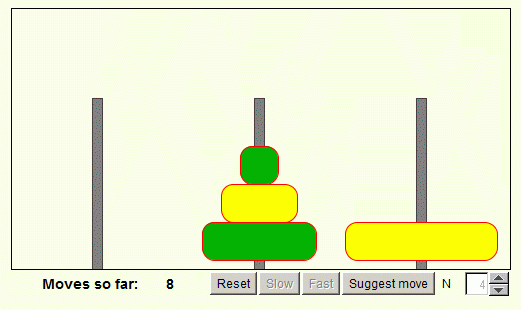

- Now perform the steps
using this web page:
- Notice the progress of the solution:

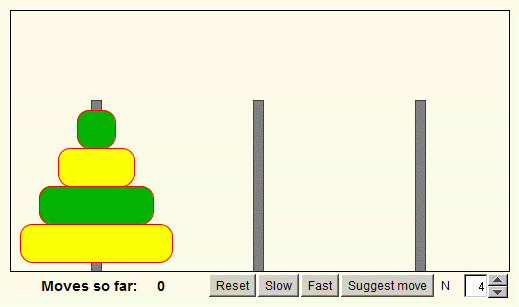

- Start of hanoi(4, 1, 3)
Moves 4 disks from peg 1 ⇒ peg 3

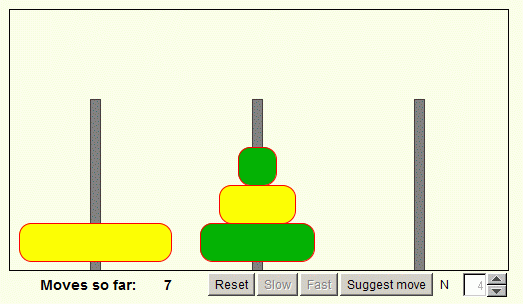

- After the steps:
1 -> 2 1 -> 3 2 -> 3 1 -> 2 (These are steps in Sol1 !!!) 3 -> 1 3 -> 2We get:
Notice that this is the solution of hanoi( 3, 1, 2) !!!
The solution was used to move 3 disks from peg 1 ⇒ peg 2 !
- After the steps:
1 -> 3 (this is MyStep !!!)We get:
Notice that this is the MyStep = "1 -> 3"; statement !!!
- After the steps:
2 -> 3 2 -> 1 3 -> 1 2 -> 3 (These are steps in Sol2 !!!) 1 -> 2 1 -> 3 2 -> 3We get:
Notice that this is the solution of hanoi( 3, 2, 3) !!!
The solution was used to move 3 disks from peg 2 ⇒ peg 3 !
- Start of hanoi(4, 1, 3)
